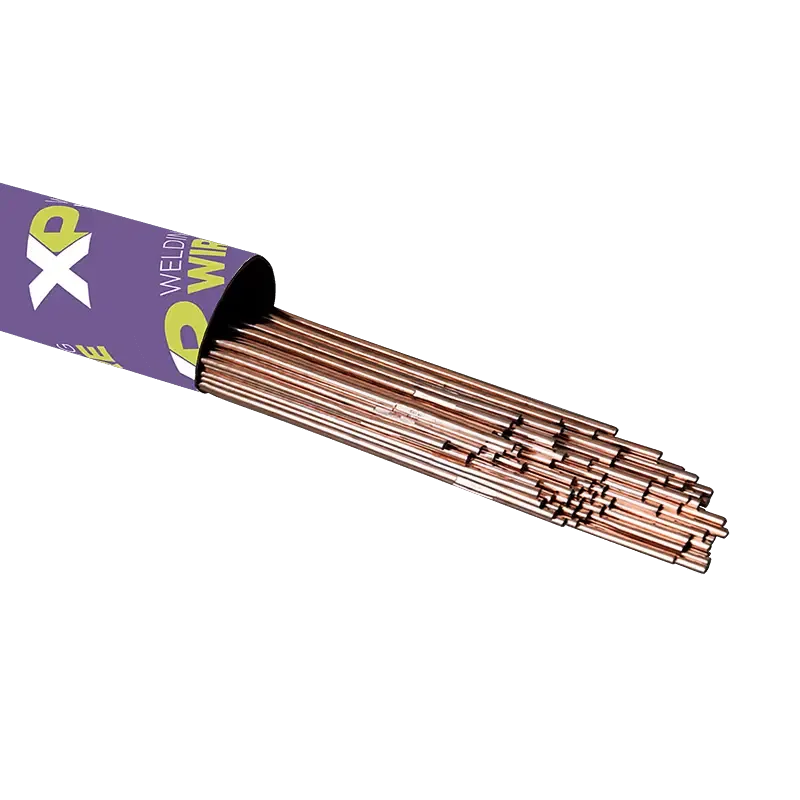

2.4MM XP ER 70S-6 A18 MILD STEEL TIG WIRE X 5.0KG
SKU XP10336
£21.35
4 payments of £5.34 with
In stock: 2 available
1
Tax's & Shipping Costs Calculated at Checkout
2.4MM XP ER 70S-6 A18 MILD STEEL TIG WIRE X 5.0KG
Product Details
Weight: 5.00 kg
2.4MM XP ER 70S-6 A18 TIG WIRE X 5.0KG PARWELD - MILD STEEL
- Double-deoxidized wire for welding mild and low alloy steels requires a minimum 420 MPa yield strength.
- High silicon content promotes weld pool fluidity, offering a smoother bead appearance and minimal post-weld grinding.
- Particularly well-suited for root and final capping passes when joining pipes.
- Excellent mechanical properties at subfreezing temperatures down to -40°C.
- Widespread usage across a diverse range of industries and applications, such as boiler manufacturing, heavy industrial machinery, shipbuilding, chemical plants, petroleum refineries, water supply lines, natural gas pipeline, automotive manufacturing, railroad equipment, structural steel fabrication, and various engineering projects.
Additional Information
| Weight | 5 kg |
|---|---|
| Dimensions | 1000 × 2.4 mm |
| Material |
Mild Steel |
| Base Materials |
S235JR-S355JR, S235J0-S355J0, S235J2-S355J2, S275N-S420N, S275M-S420M, P235GH-P355GH, P275NL1-P355NL1, P215NL, P265NL, P355N, P285NH-P420NH, P195TR1-P265TR1, P195TR2-P265TR2, P195GH-P265GH, L245NB-L415NB, L245MB-L415MB, GE200-GE240, ship building steels: A/B/D/E, A 32-E 36 ASTM A 106 Gr. A/B/C; A 181 Gr. 60/70; A 283 Gr. A/C; A 285 Gr. A/B/C; A 350 Gr. LF1; A 414 Gr. A/B/C/D/E/F/G; A 501 Gr. B; A 513 Gr. 1018; A 516 Gr. 55/60/65/70; A 573 Gr. 58/65/70; A 588 Gr. A/B; A 633 Gr. C; A 662 Gr. B; A 711 Gr. 1013; A 841 Gr. A; API 5 L Gr. B, X42, X52, X56, X60 |
| Temperature |
-40ºC |
| Shielding Gas |
Pure Argon |
| Current Type |
DC- |
| Chemical Composition (%) |
Mo = 0.15 MAX, Ni = 0.15, P = 0.025, S = 0.025, Al = 0.02, C = 0.06 MIN – 0.14 MAX, Cr = 0.15, Mn = 1.30 MIN – 1.60 MAX, Si = 0.70 MIN – 1.00 MAX, Ti + Zr = 0.15, V = 0.03 |
| Elongation |
24% (≥20%) |
| Tensile Strength MPa |
24 (≥20) |
| Yield Strength MPa |
450 (≥420) |
| Impact Energy ISO-V |
80J (≥47J) |
| Grade |
ER70S-6 |
| Conforms To |
AWS A5.18 ER70S-6, EN ISO 636-A: W 42 4 3Si1 |
| Set Size |
Single Box |
| Packaging Type |
PAP 20 Tube |
