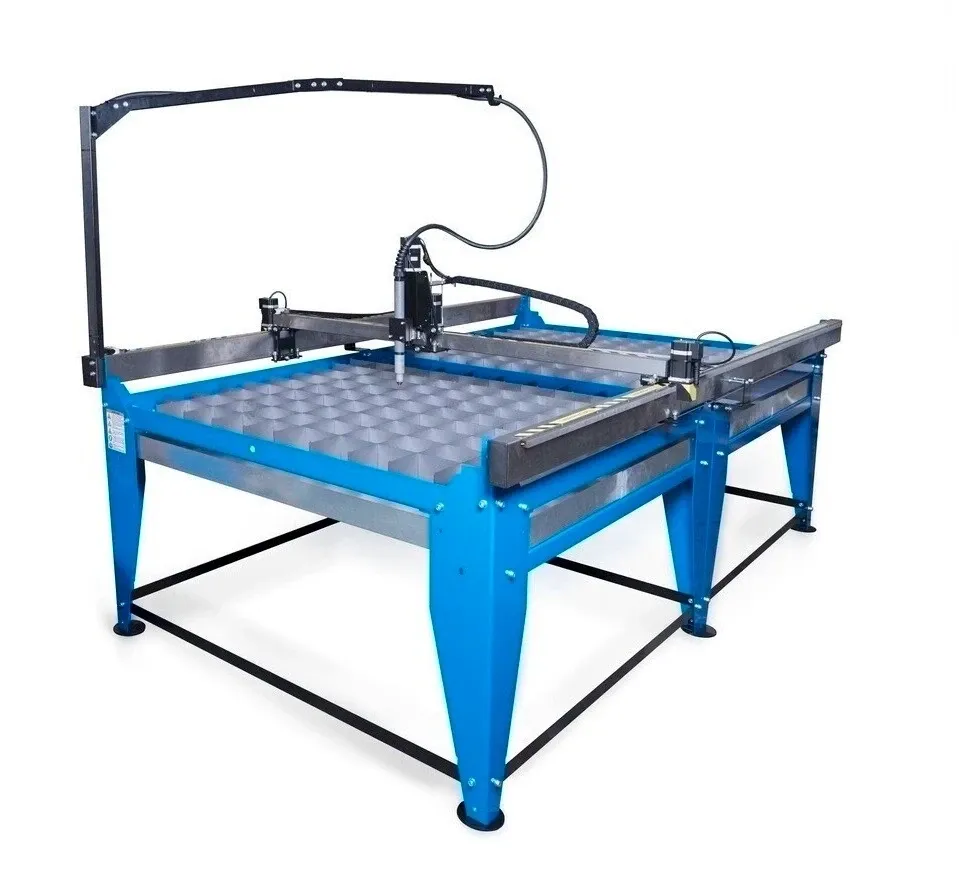

8x4 CNC Plasma Cutting Table Kit

8x4 CNC Plasma Cutting Table Kit (Black)

Full Range Of Xtreme CNC Plasma Tables

YouTube Videos

8x4 CNC Plasma Cutting Table Kit Description

The Incredible 8'x 4' CNC Cutting table system produced in the UK from Xtreme Precision Engineering is a computer controlled CNC plasma cutting station

Producing accurate and detailed cut parts for light manufacturing,D.I.Y and creative art uses.

• CNC Plasma cutting is now affordable!

• Manufactured in the UK
• All new entry level CNC Plasma Cutting Table system
• Complete System, Plasma Cutting Table, Desk, Torch height controller,Homing Switch's Custom PC and Software Package - Just add an air compressor & plasma Cutter
• Designed for 2500x1250 sheet size(8' x 4'), cutting area 2500 x 1250mm accuracy on cutting +/-2mm
• Easy bolt together steel frame construction, incredibly strong and rigid
• Automatic Advanced torch height controller
• Replaceable dual sided slats
• Black Computer Desk

• 24" HD LED Display Screen
• Draw on your own favourite Cad system and Import DXF directly into machine
• Scale artwork with simplicity and ease to fit any sheet size.
• Technical support during normal working hours.
• This is light industrial machine ideal for your workshop or garage as it is all 13amp 240v single phase.
• We supply all the parts you require for this build and is part assembled, Easy assembly with step by step instructions
• Comes complete with the following software - Intuitive software for any level of user


• Over 50 self help tuition videos included with our user friendly Graphical User Interface
• Manuals and literature
• Nesting software included
• HVAC Ventilation duct and fittings creator software - 14 shapes included - Uprgradeable
• Industry Standard easy to use Graphics package and additional cad packages also included
• Comprehensive Shapes library - use common shapes and re-size easily to your requirements

• High quality Hybrid servo motors and electronics.
• UK Built CNC Controller
• Windows PC system
• Torch height controller (THC) & OHMIC Soft Sense
• XYZ gantry system rack and pinion,max velocity 10 mtrs/min
• Plasma cutting table electronics comes with a 1 year warranty
• Free technical support during normal working hours
• Built by Engineers for Engineers
• 240V 13 Amp required for CNC system and PC
