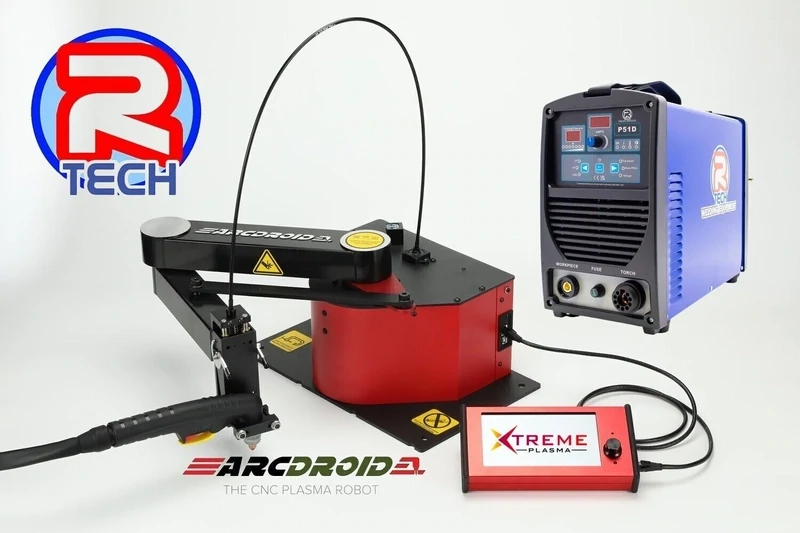

ArcDroid CNC Plasma Robot & R-Tech P51D Plasma Cutter Combo
SKU arcdroid combo
Only £3150 +vat & Get the X2 for only £249 +vat
£3,150.00
1 available
1
Save this product for later

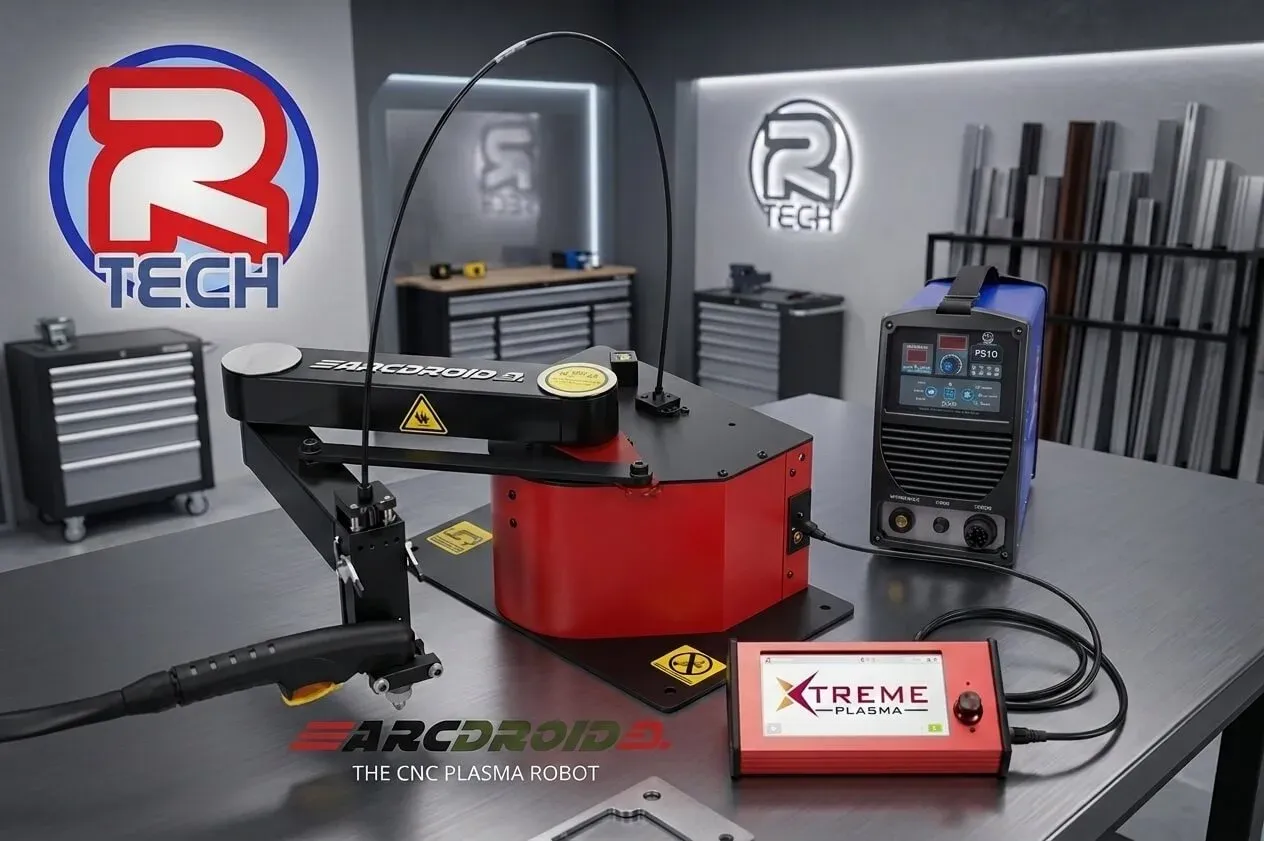

ArcDroid CNC Plasma Robot & R-Tech P51D Plasma Cutter Combo
Product Details
Weight: 45.00 kg
ArcDroid CNC Plasma Robo & R-Tech P51D Plasma Cutter Combo
Included USB video tutorials,Mini SD Card & Printed User Manual, Sheetcam Setup Files + Cutting Chart
Pre assembled control cable Worth £100
What's In The Box
ArcDroid CNC Plasma Robot & R-Tech P51D Plasma Cutter Combo Features

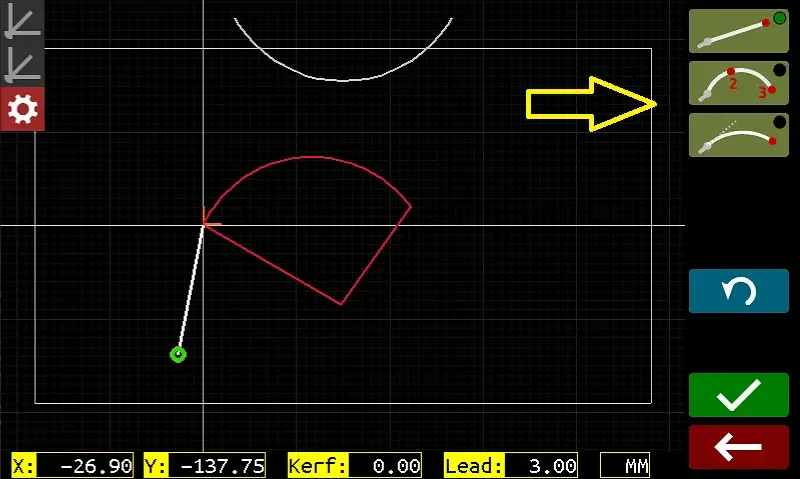

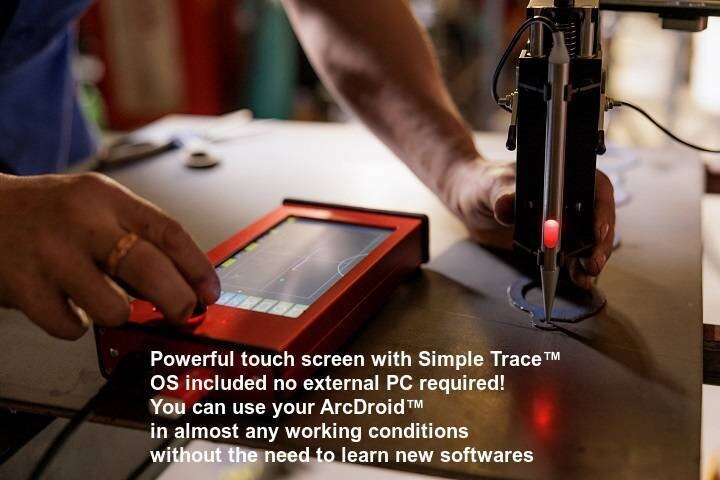

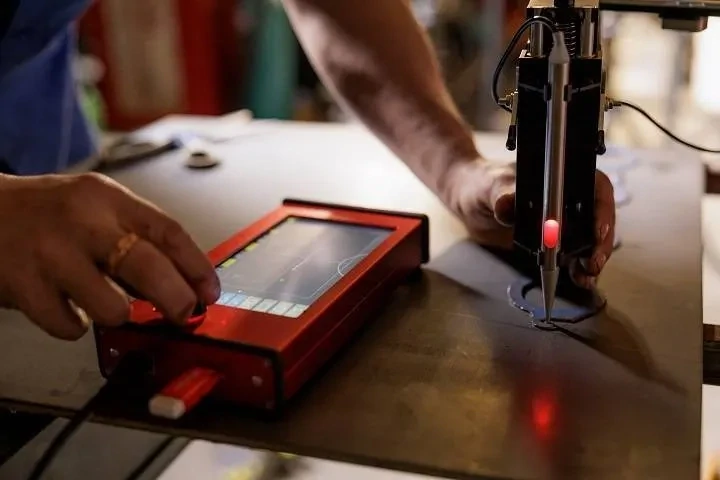

- Onboard Simple Trace™ software means no PC or external software required

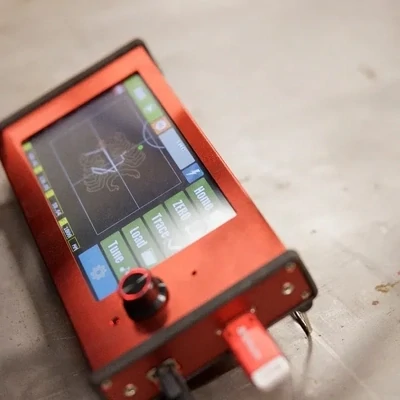

- Easy to read glove friendly touch screen Interface
- Works with most hand held plasma cutters * (Non HF)
- Compatible with CAM programs such as Fusion 360, SheetCAM, QCAD and Pronest (Sheetcam Recommended)
- Save your projects as DXF or G-Code Files
- Easy USB import of DXF and G-Code Files †
- Lightweight and portable less than 17 Kg (38 Lbs)
- Compact form factor 50 x 36 x 25 cm (20 x 14 x 10 inches)
- Can be repositioned easily to increase total cut envelope

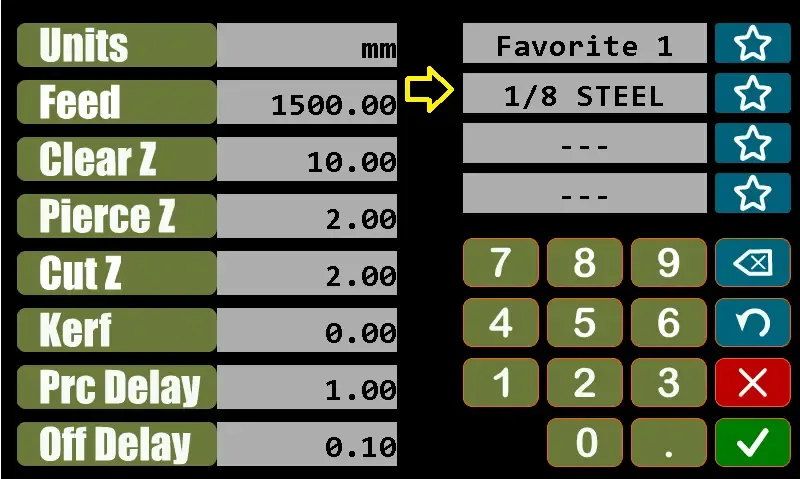

- Programmable pierce and cut heights
- Adjustable kerf compensation
- Full mechanical Z probing on every cut start
- Auto level and Torch Height Compensation features for uneven material **
- Programmable pierce and finish delays

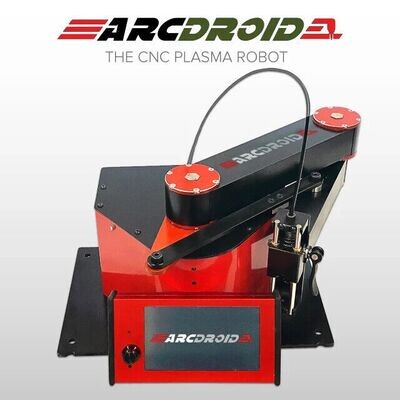

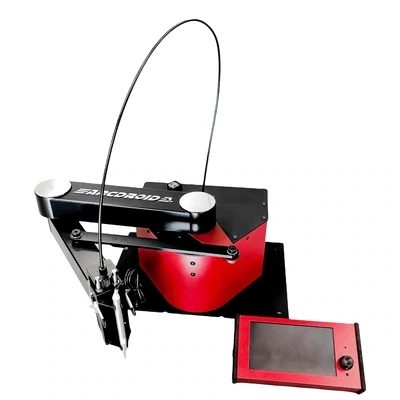

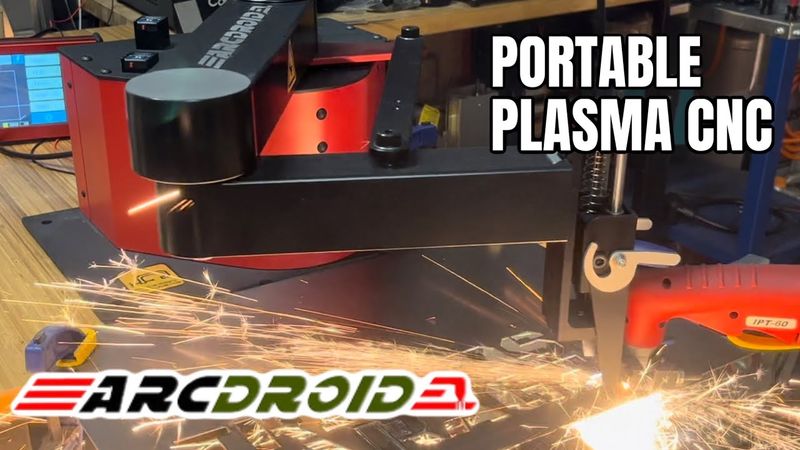

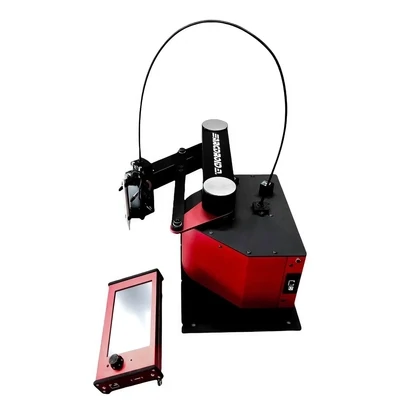

ArcDroid CNC Plasma Robot Specifications

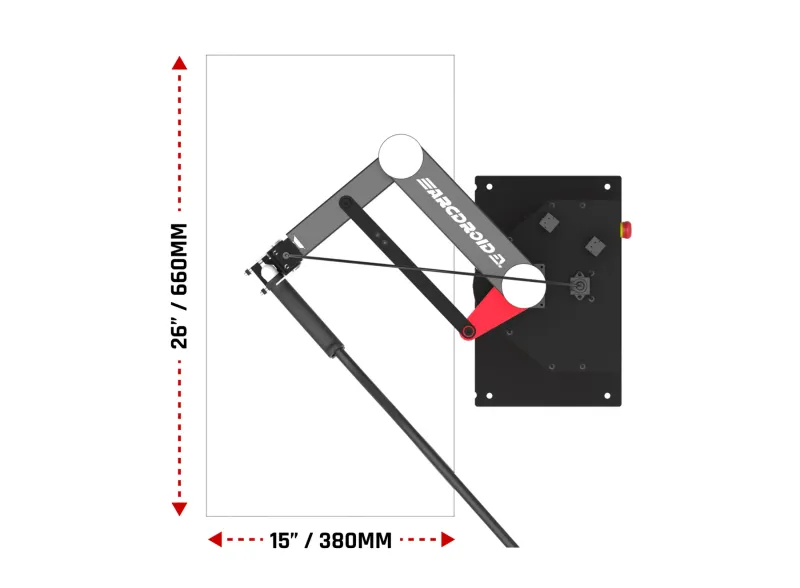

- Large cutting envelope, 660 x 380mm ( 26 x 15 inches)
- 65mm Z travel (2.5 inches”)
- Max cut speed 5,000mm/min (200”/min)
- Max travel speed 8,000 mm/m (315”/min)
- 240V version
- UL/CSA Certified
- CE Certified

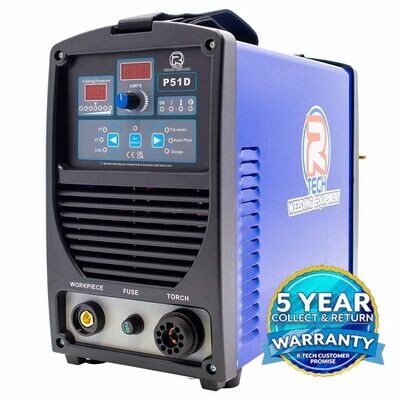

R-Tech P51D Plasma Cutter (Max Pierce 8-12mm steel)
Cut through up to 24mm with ease using the P51D plasma cutter. No-HF Pilot arc starting, gouging function and CNC interface as standard . With easy setup and low cost consumables, there's never been a better time to add a high performance plasma cutter to your workshop.
- Built with class leading Siemens IGBT's - Not inferior Mosfets
- NO-HF Pilot arc for easy starting even on painted surfaces and pilot re-start - ideal for cutting mesh etc.
- 20mm genuine clean cut on mild steel, 24mm Severance cut on mild steel
- 13mm genuine clean cut on alloy and stainless steel
- 50amp cutting power at a high duty cycle of 60%
- Digital display for amps - Ideal if you need your equipment calibrating for ISO requirements
- Air pressure sensor - Enables clear setting for best quality of cut.
- Torch consumables safety warning indicator - stops operation if problem detected.
- Comes as a complete kit all you need is a supply of compressed air and a 240V 32Amp supply
- 5 year collect and return UK warranty
- Quick Fit Euro Torch with long life consumables
- Package Includes, R-Tech P51D plasma cutter, 6m IPT-60 plasma cutter torch, earth lead, 5 replacement cutting tips, 5 replacement electrodes, mains cable, air pressure regulator and PCL fitting, owners manual
- Please note R-Tech & Xtreme do not supply a fitted electrical plug on plasma cutter

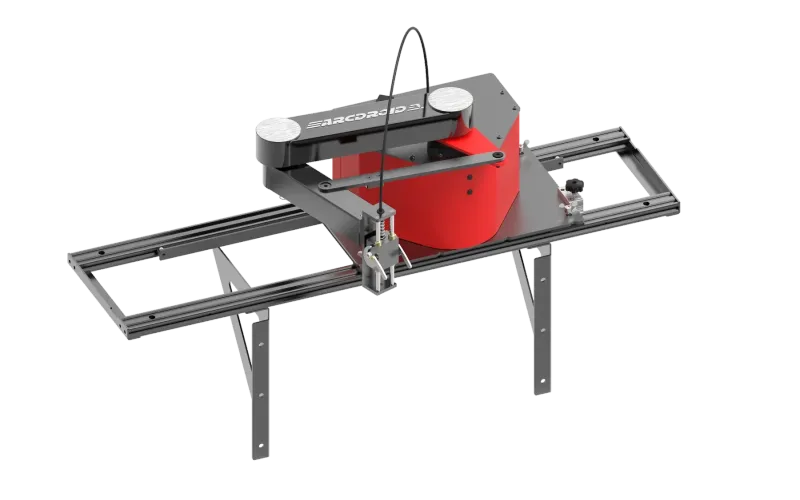

ArcDroid X2 Large Cutting Indexing System
- Double the effective cutting area of your ArcDroid™
- A specialized encoder and rail system as well as updates to our Simple Trace™ Operating System allow easy and automatic splitting and re-stitching of larger size cut files
- Full depth edge to edge on a 4 foot wide sheet!
- Simple low profile system easily retrofitted to your Existing ArcDroid™ without sacrificing portability
- Mount flush to a surface or use optional brackets to support on the side of a table.
- Requires free update for both Simple Trace™ and main machine firmware. Available for download here
