Cobot Teach Pendant
SKU teach pendant
£635.00
4 payments of £158.75 with
In stock
1
Tax's & Shipping Costs Calculated at Checkout

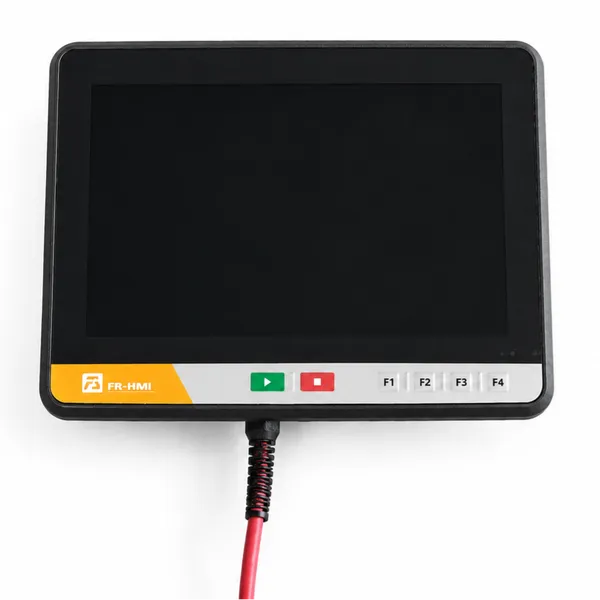

Cobot Teach Pendant
Product Details
The Fairino Teach Pendant is a lightweight, ergonomic touchscreen device designed for safe and intuitive cobot programming. It features the same user interface as the Fairino WebApp on PC, ensuring a seamless transition between desktop and on-floor control. Operators can jog joints or TCP, capture waypoints, and build tasks through simple, block-based workflows. With integrated E-stop and enabling switch, the pendant combines usability with safety, making it a reliable tool for daily operation.
Product description
The Teach Pendant provides a rugged, portable touchscreen for efficient cobot setup, teaching, and monitoring. Its interface is identical to the PC-based WebApp, allowing operators to switch between desktop and handheld control without retraining. Using the pendant, users can jog the robot joints or TCP, define waypoints, and assemble tasks using intuitive drag-and-drop workflows. Key settings such as speed, I/O management and basic safety parameters can be adjusted on the spot, while clear diagnostics and status displays keep processes under control.
Safety is built in with an emergency stop button and enabling switch, ensuring compliance with collaborative operation standards. The pendant is designed for one-handed use, with a robust yet lightweight housing for comfortable all-day handling. Its 5-meter cable provides flexibility on the shop floor, making it a practical and secure tool for industrial environments.
Specifications Teach Pendant:
- Display: 10.1" touchscreen, 1280 × 800 resolution
- Interface: Identical to Fairino WebApp (PC/tablet/mobile)
- Functions: Jogging, waypoint recording, block-based task building, I/O and speed adjustment, status/diagnostics
- Safety: Integrated E-stop, enabling switch
- Housing: Rugged, ergonomic ABS/PP design
- Dimensions (L×W×H): 268 × 210 × 88 mm
- Weight: 1.6 kg
- Cable length: 5 m
- Protection rating: IP54
- Operating temperature: 0–45 °C
- Operating humidity: up to 90% RH (non-condensing)
Delivery time: 2 weeks
UK delivery cost: £49
Prices exclude VAT
