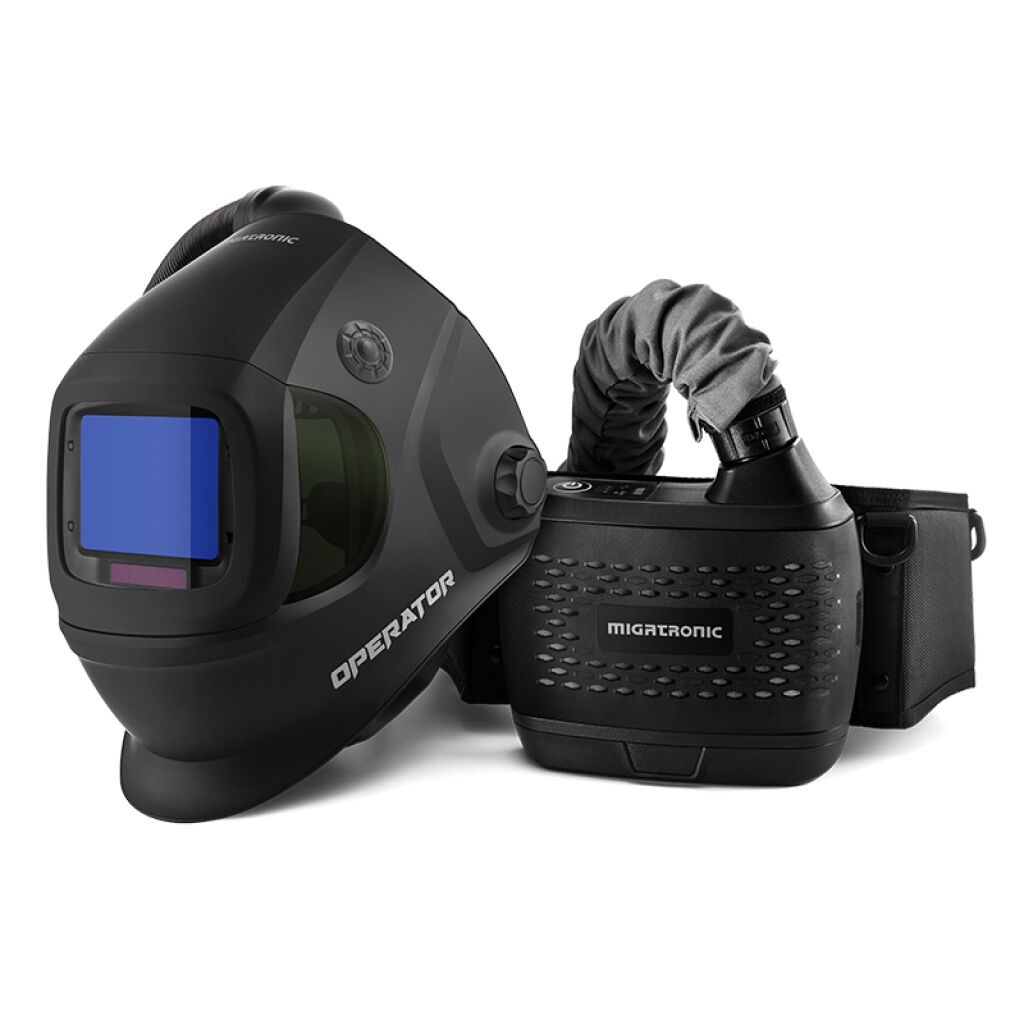

Migatronic Operator Air Fed Welding Helmet & Papr Complete Unit Midnight Black
SKU 82920101
£595.00
In stock
1
Tax's & Shipping Costs Calculated at Checkout
Migatronic Operator Air Fed Welding Helmet & Papr Complete Unit Midnight Black
Product Details
The Operator welding helmet, equipped with an advanced auto darkening filter (ADF), is designed with safety and versatility in mind, making it the perfect choice for welders who prioritise protection and performance.
Professional grade. As expected.
Constructed from impact-resistant materials and built to endure harsh working environments, Operator helmets are engineered to provide lasting protection in all conditions. It offers unmatched reliability, ensuring minimal downtime and maximum safety.
Adjustable headgear
Providing customisable fit and comfort, distributing weight evenly.
External grind button
Quick change between welding and grinding.
Side windows
Shade 5 lenses on both sides to enhance peripheral vision, increasing safety. Blackouts included.
Superior lens technology
Highest optical class 1/1/1/1. 5-9/9-13 shade level. 107 x 75mm view.
The Operator PAPR system combined with the Operator helmet, offers heavy duty protection from welding fume and grinding dust. TH3P
certified offering exceptional respiratory safety, filtering out 99.997% of airborne contaminants.
Instant alert system
The PAPR system provides immediate alerts through visual, audio, and vibration signals if the filter or battery levels drop.
Exceptional respiratory safety
TH3P certified offering exceptional respiratory safety, filtering out 99.997% of airborne contaminants.
Fast-charging lithium-Ion battery
Charge for 1 hour and weld up to 9 hours with a standard battery. Extended battery available.
Flexible quick connect hose
Extremely lightweight, supplied with flame-resistant hose cover. The hose offers a quick, one-handed connection, ensuring ease of use and fast setup.
Application Range – Stick Welding (SMAW); TIG DC∾ TIG Pulse DC; TIG Pulse AC; MIG/MAG/CO2; MIG/MAG Pulse; Plasma Arc Cutting (PAC); Plasma Arc Welding (PAW); Air Carbon Arc Cutting (CAC-A); Oxyfuel Gas Welding (OFW); Oxygen Cutting (OC); Grinding
|
Specification
|
Value
|
|---|---|
|
Optical Class
|
1/1/1/1
|
|
Viewing Area
|
107 x 75 mm (4.21" x 2.95")
|
|
Cartridge Size
|
156 x 123 x 33 mm (6.14" x 4.84" x 1.30")
|
|
Arc Sensor
|
4
|
|
Light State
|
DIN 3
|
|
Grind State
|
DIN 3
|
|
Cutting Shade
|
Shade No. from 5 to 8
|
|
Welding Shade
|
Shade No. from 9 to 13
|
|
Shade Control
|
Internal, Digital Display Control
|
|
Power On / Off
|
Automatic On / Off
|
|
Sensitivity Control
|
Low ~ High, Digital Display Control
|
|
UV/IR Protection
|
Up to Shade DIN13 at all times
|
|
Power Supply
|
Solar cell. Battery replaceable, 2 x CR2450 lithium battery
|
|
Switching Time
|
1/25,000 s. from Light to Dark at 55 °C (131 °F)
|
|
Grinding
|
Yes
|
|
Delay (Dark to Light)
|
0.1 ~ 1.0 s, Digital Display Control
|
|
Low Amperage TIG Rated
|
≥ 2 amps (DC); ≥ 2 amps (AC)
|
|
Operating Temp.
|
-5 °C ~ +55 °C (23 °F ~ 131 °F)
|
|
Storing Temp.
|
-20 °C ~ +70 °C (-4 °F ~ 158 °F)
|
|
Helmet Material
|
High Impact Resistance Nylon
|
|
Total Weight (Helmet, Hose, PAPR (with belt and battery)
|
1950 g
|
|
Application Range
|
Stick Welding (SMAW); TIG DC∾ TIG Pulse DC; TIG Pulse AC; MIG/MAG/CO2; MIG/MAG Pulse; Plasma Arc Cutting (PAC); Plasma Arc Welding (PAW); Air Carbon Arc Cutting (CAC-A); Oxyfuel Gas Welding (OFW); Oxygen Cutting (OC); Grinding
|
|
Approved
|
CE, EN ISO 16321-1 :2022, EN ISO 16321-2:2021, EN 175, EN 166 ANSI Z87.l, Z94.3, AS/NZS 1338.l
|
|
Article number
|
Type
|
Product Name
|
Replacement interval
|
|---|---|---|---|
|
82901401
|
Spare Parts
|
Front lens frame (Midnight Black) |
|
|
82901501
|
Spare Parts
|
Shell standard (Midnight Black) |
|
|
82901403
|
Spare Parts
|
Side lens |
|
|
82901402
|
Spare Parts
|
Side lens cover |
|
|
82901101
|
Spare Parts
|
Front cover lens |
Once a week. Replace anytime the lens becomes deeply pitted, scratched or too dirty to clean with soft cloth or lens paper.
|
|
82901102
|
Spare Parts
|
Front cover lens HD (5 pcs) |
|
|
82901103
|
Spare Parts
|
Front cover lens anti-scratch (5 pcs) |
|
|
82901503
|
Spare Parts
|
Headgear – Operator Standard helmet |
|
|
82901505
|
Spare Parts
|
Sweatband (Operator) |
Once a month. Replace more often if sweatband becomes unhygienic.
|
|
82901506
|
Spare Parts
|
Soft pad rear sweatband |
|
|
82901502
|
Spare Parts
|
Shell with Air duct (air-fed) (Midnight Black) |
|
|
82901507
|
Spare Parts
|
Face seal (Operator) |
At least every two months. Replace earlier in really dirty environments, or if it has splits or tears or whenever the seal becomes unhygienic.
|
|
82901504
|
Spare Parts
|
Headgear (Air fed) |
|
|
82902303
|
Spare Parts
|
Operator Air Hose Q connect Cover – 650mm |
|
|
82902301
|
Spare Parts
|
Air O ring |
As needed, replace if damaged or deformed.
|
|
82901301
|
Spare Parts
|
Auto darkening filter (750MG) |
|
|
82901104
|
Spare Parts
|
Inside cover lens (5 pcs) |
Once a month. Regularly clean with a soft cloth and replace if any pits or scratches occur.
|
|
82902302
|
Spare Parts
|
Operator Air Hose Q connect – 650mm |
If damaged, deformed or leaking air. To extend the life of the air hose, use a hose cover.
|
|
82902306
|
Spare Parts
|
Air hose holder ring |
|
|
82902402
|
Spare Parts
|
Air filter cover |
|
|
82902101
|
Spare Parts
|
Air P3 particle filter |
At least every month. For the respirator, replace when particle filter indicator flashes. Otherwise, replace whenever the battery operating time becomes too short, or when “fully loaded” filter triggers low airflow alarm.
|
|
82902102
|
Spare Parts
|
Air pre-filter (5 pcs.) |
Once a week (based on application & environment). Regular replacement of the pre-filter extends the life of the particle filter, saving money while also helping the battery run-time.
|
|
82902104
|
Spare Parts
|
Air spark screen (5 pcs.) |
As needed. Replace if deformed and no longer fitting well.
|
|
82902105
|
Spare Parts
|
Air gas filter (A1B1E1K1) |
As needed. Replace the gas filter according to your work place requirements. It is not recommended to wait until you can sense odours or smells.
|
|
82902106
|
Spare Parts
|
Air gas filter (A2) |
As needed. Replace the gas filter according to your work place requirements. It is not recommended to wait until you can sense odours or smells.
|
|
82902103
|
Spare Parts
|
Air carbon pre-filter |
Any time you smell unpleasant odours. Odour filter is not required if gas filter is used.
|
|
82901115
|
Spare Parts
|
Operator Helmet Magnifying Lens Clear Diopter +2.75 |
|
|
82901111
|
Spare Parts
|
Operator Helmet Magnifying Lens Clear Diopter +1 |
|
|
82901112
|
Spare Parts
|
Operator Helmet Magnifying Lens Clear Diopter +1.5 |
|
|
82901113
|
Spare Parts
|
Operator Helmet Magnifying Lens Clear Diopter +2.0 |
|
|
82901114
|
Spare Parts
|
Operator Helmet Magnifying Lens Clear Diopter +2.5 |
|
|
82902304
|
Spare Parts
|
Operator Air Hose Q Connect Short – 300mm |
If damaged, deformed or leaking air. To extend the life of the air hose, use a hose cover.
|
|
82902305
|
Spare Parts
|
Operator Air Hose Cover Short – 300mm |
|
|
82901301
|
Spare Parts
|
Auto-darkening filter for Operator helmet (750 MG) |
|
