Name: Migatronic Operator Welding Helmet Nordic Pine
SKU: 82910102
Price: 159.0 GBP
Availability: PreOrder

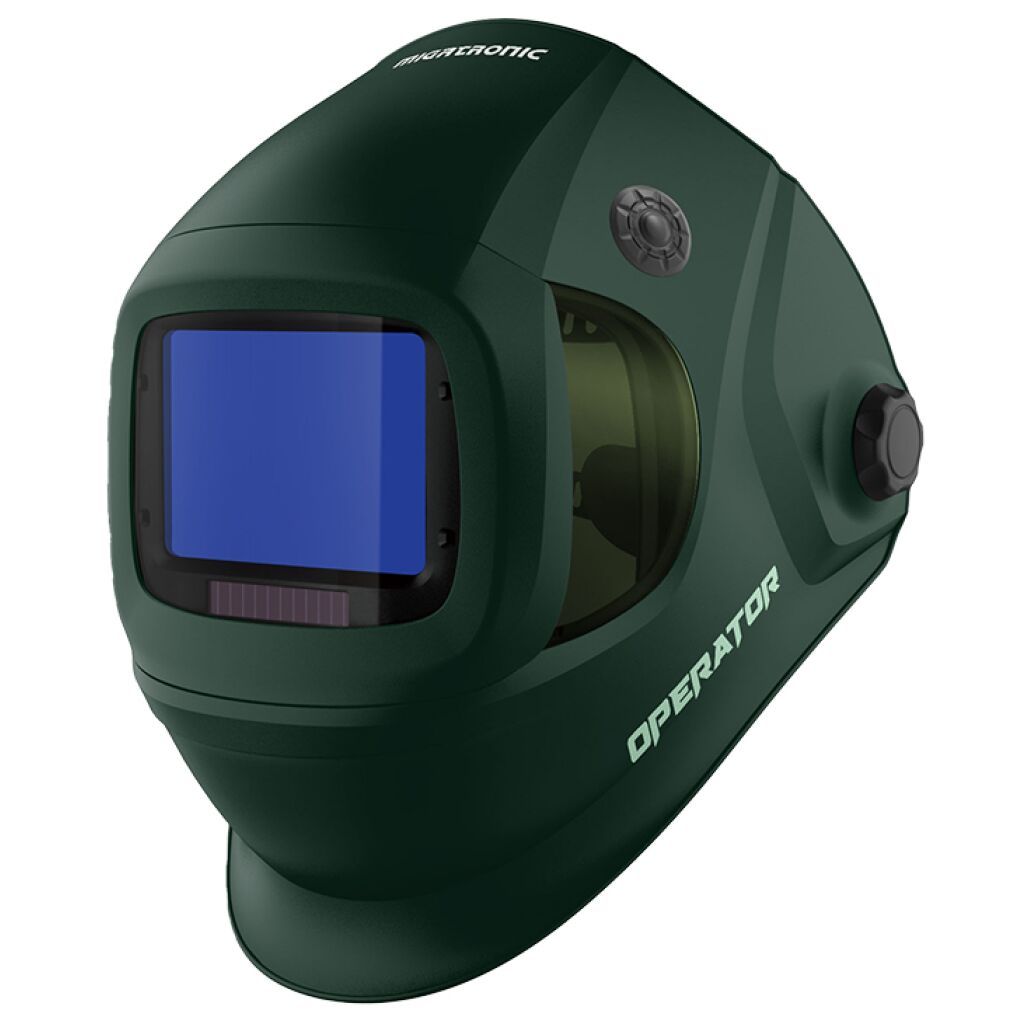

Migatronic Operator Welding Helmet Nordic Pine

Product Details

Weight: 5.00 kg

The Operator welding helmet, equipped with an advanced auto darkening filter (ADF), is designed with safety and versatility in mind, making it the perfect choice for welders who prioritise protection and performance.

Professional grade. As expected.

Constructed from impact-resistant materials and built to endure harsh working environments, Operator helmets are engineered to provide lasting protection in all conditions. It offers unmatched reliability, ensuring minimal downtime and maximum safety.

Adjustable headgear
Providing customisable fit and comfort, distributing weight evenly.

External grind button
Quick change between welding and grinding.

Side windows
Shade 5 lenses on both sides to enhance peripheral vision, increasing safety. Blackouts included.

Superior lens technology
Highest optical class 1/1/1/1. 5-9/9-13 shade level. 107 x 75mm view.

Application Range – Stick Welding (SMAW); TIG DC&AC; TIG Pulse DC; TIG Pulse AC; MIG/MAG/CO2; MIG/MAG Pulse; Plasma Arc Cutting (PAC); Plasma Arc Welding (PAW); Air Carbon Arc Cutting (CAC-A); Oxyfuel Gas Welding (OFW); Oxygen Cutting (OC); Grinding

Specification	Value
Optical Class	Approved
Viewing Area	107 x 75 mm (4.21" x 2.95")
Cartridge Size	156 x 123 x 33 mm (6.14" x 4.84" x 1.30")
Arc Sensor	4
Light State	DIN 3
Grind State	DIN 3
Cutting Shade	Shade No. from 5 to 8
Welding Shade	Shade No. from 9 to 13
Shade Control	Internal, Digital Display Control
Power On / Off	Automatic On / Off
Sensitivity Control	Low ~ High, Digital Display Control
UV/IR Protection	Up to Shade DIN13 at all times
Power Supply	Solar cell. Battery replaceable, 2 x CR2450 lithium battery
Switching Time	1/25,000 s. from Light to Dark at 55 °C (131 °F)
Grinding	Yes
Delay (Dark to Light)	0.1 ~ 1.0 s, Digital Display Control
Low Amperage TIG Rated	≥ 2 amps (DC); ≥ 2 amps (AC)
Operating Temp.	-5 °C ~ +55 °C (23 °F ~ 131 °F)
Storing Temp.	-20 °C ~ +70 °C (-4 °F ~ 158 °F)
Helmet Material	High Impact Resistance Nylon
Total Weight	778 g
Application Range	Stick Welding (SMAW); TIG DC&AC; TIG Pulse DC; TIG Pulse AC; MIG/MAG/CO2; MIG/MAG Pulse; Plasma Arc Cutting (PAC); Plasma Arc Welding (PAW); Air Carbon Arc Cutting (CAC-A); Oxyfuel Gas Welding (OFW); Oxygen Cutting (OC); Grinding
Approved	CE, EN ISO 16321-1 :2022, EN ISO 16321-2:2021, EN 175, EN 166 ANSI Z87.l, Z94.3, AS/NZS 1338.l

Article number	Type	Product Name	Replacement interval
82901406	Spare Parts	Front lens frame (Nordic Pine)
82901508	Spare Parts	Shell standard (Nordic Pine)
82901403	Spare Parts	Side lens
82901402	Spare Parts	Side lens cover
82901101	Spare Parts	Front cover lens	Once a week. Replace anytime the lens becomes deeply pitted, scratched or too dirty to clean with soft cloth or lens paper.
82901102	Spare Parts	Front cover lens HD (5 pcs)
82901103	Spare Parts	Front cover lens anti-scratch (5 pcs)
82901503	Spare Parts	Headgear – Operator Standard helmet
82901505	Spare Parts	Sweatband (Operator)	Once a month. Replace more often if sweatband becomes unhygienic.
82901506	Spare Parts	Soft pad rear sweatband
82901507	Spare Parts	Face seal (Operator)	At least every two months. Replace earlier in really dirty environments, or if it has splits or tears or whenever the seal becomes unhygienic.
82901301	Spare Parts	Auto darkening filter (750MG)
82901104	Spare Parts	Inside cover lens (5 pcs)	Once a month. Regularly clean with a soft cloth and replace if any pits or scratches occur.
82901115	Spare Parts	Operator Helmet Magnifying Lens Clear Diopter +2.75
82901111	Spare Parts	Operator Helmet Magnifying Lens Clear Diopter +1
82901112	Spare Parts	Operator Helmet Magnifying Lens Clear Diopter +1.5
82901113	Spare Parts	Operator Helmet Magnifying Lens Clear Diopter +2.0
82901114	Spare Parts	Operator Helmet Magnifying Lens Clear Diopter +2.5
82901301	Spare Parts	Auto-darkening filter for Operator helmet (750 MG)
