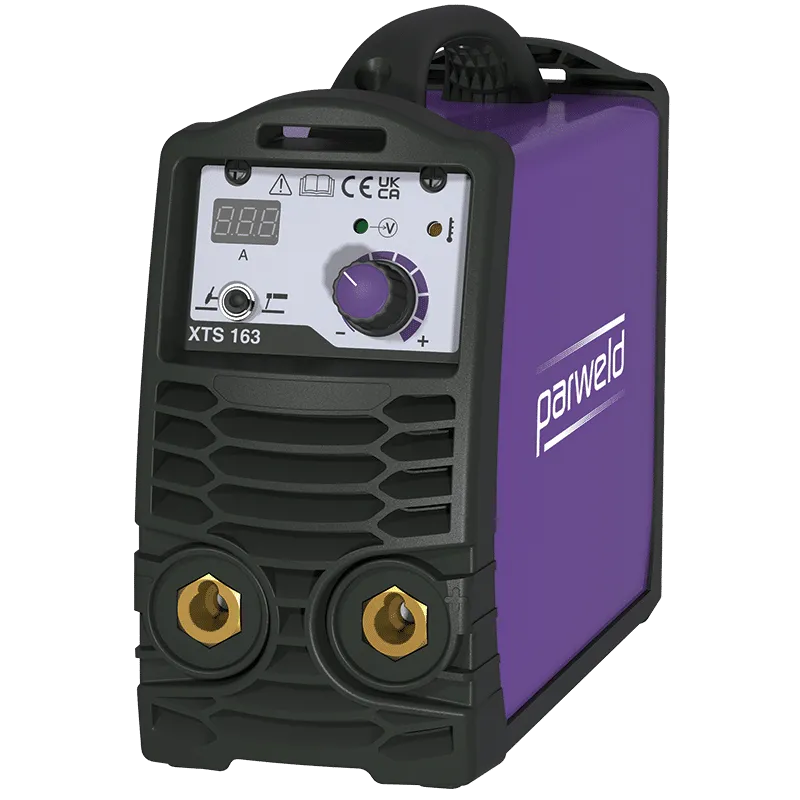

Name: PARWELD XTS 163 160amp Arc welder 110/230v
SKU: XTS163DV
Price: 260.92 GBP
Availability: InStock

PARWELD XTS 163 160amp Arc welder 110/230v

Product Details

Weight: 4.70 kg

The XTS 163 MMA uses latest technology to provide a compact and reliable machine, ideal for everyday applications. Electrodes up to 3.2mm can be used with ease.

By fitting the optional TIG torch and coupling to a suitable gas supply the XTS 163 can be used for TIG welding and is suitable for welding steel and stainless steel. The lift arc mode limits the arc current when the tungsten touches the work piece preventing electrode damage.

The XTS 163 is able to cope with inputs which fluctuate by +/-15% & can be used with the majority of generators. The machine is housed in a rugged steel case. A carry case is available as an optional extra.

Key Features Include:

110/230V Input
160A @ 25% Duty Cycle
Lift TIG Mode
Digital Display (with Digital Amperage Display) for Easy Setting
Lightweight at just 4.7kg
Over Voltage Protection
Over Current Protection
Electrode Striking with Arc Force
Re-Striking with Hot Start
Connections 35-50mm Twist Lock

Weight	4.7kg
Dimensions	N/A
Phase	Single Phase
Machine Style	Compact
Machine Type	Inverter
Maximum Current	5-160A DC
Duty Cycle	160A @ 25% Duty Cycle
Input Voltage	230V 1P
No Load Voltage	45V
Max Electrode Size	3.2mm
Input Current (Eff)	15.9A
Output	DC
Cable Connection	35-50 Dix
Minimum Fuse Rating	16A
KVA	8
Generator Size (Requires AVC)	10 KVA
Cooling	Air, Fan, Forced
Enclosure Protection	IP23S
Comes With	3m Cable, 3m Earth Lead, Electrode Holder
Ideal for Applications	Agricultural, DIY, Light Industrial Manufacturing, Maintenance Repair, Metal Fabrication, Training
Special Features	Arc Force, Digital Amperage Display, Electrode Striking, Lift TIG Mode, Lightweight, Over Voltage + Over Current Protection, Re-Striking, Re-Striking with Hot Start
Warranty	5 Year Warranty
Conforms To	IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Compliant
