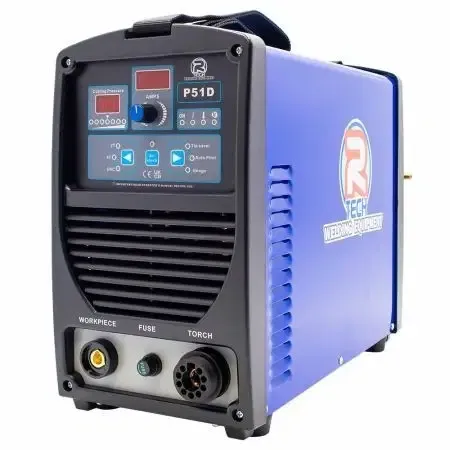

R-Tech P51D Digital CNC Plasma Cutter (240v) ipt-60 Hand Torch

• Built with class leading Siemens IGBT's - Not inferior Mosfets
• NO-HF Pilot arc for easy starting even on painted surfaces and pilot re-start - ideal for cutting mesh etc.
• 20mm genuine clean cut on mild steel, 24mm Severance cut on mild steel
• 13mm genuine clean cut on alloy and stainless steel
• 50amp cutting power at a high duty cycle of 60%
• Digital display for amps - Ideal if you need your equipment calibrating for ISO requirements
• Air pressure sensor - Enables clear setting for best quality of cut.
• Torch consumables safety warning indicator - stops operation if problem detected.
• Comes as a complete kit all you need is a supply of compressed air and a 240V 32Amp supply
• 5 year collect and return UK warranty
• Quick Fit Euro Torch with long life consumables
• Package Includes, R-Tech P51D plasma cutter, 6m IPT-60 plasma cutter torch, earth lead, 5 replacement cutting tips, 5 replacement electrodes, mains cable, air pressure regulator and PCL fitting, owners manual

Machine Manual

cnc connector

pins 1 & 2 trigger

50-1 voltage divider

pin 4 -

pin 6 +

additional info

Maximum Supplied Air Pressure 90 psi (This is incoming pressure from the air compressor, not operating, or (From Com-

pressor/Tank) cutting pressure.) The air compressor MUST have a separate pressure regu-

lator at the tank or inline to control maximum supply pressure.

Recommended Maximum Daily Average Cut Thickness

(Steel, Hand Cut)

1/2” (12mm) Decrease 35-40% for Aluminum and Stainless (INOX).

Recommended Maximum Daily Average Cut Thickness

(Steel, CNC, Auto-Cutting Mechanisms)

1/4” (6mm) Note: CNC operation has limiting factors that reduces operation Average Cut

Thickness capability. This includes duty cycle, inability to manipulate torch for piercing

duties, cut speed requirements/expectations.

Rated Maximum Quality Cut @ 10-12 IPM (@ 250-300mm / min)

(Steel, Hand Cut)

3/4” (19mm) Decrease 35-40% for Aluminum and Stainless (INOX).

Max Severance Cut @ 3 IPM (75mm / min) (Steel, Hand Cut ) 1” (25mm) Decrease 35-40% for Aluminum and Stainless Steel (INOX).

Gouging Limit (approximate gouge depth/width) 1/8”x 3/16” (3mm x 4.8mm)
