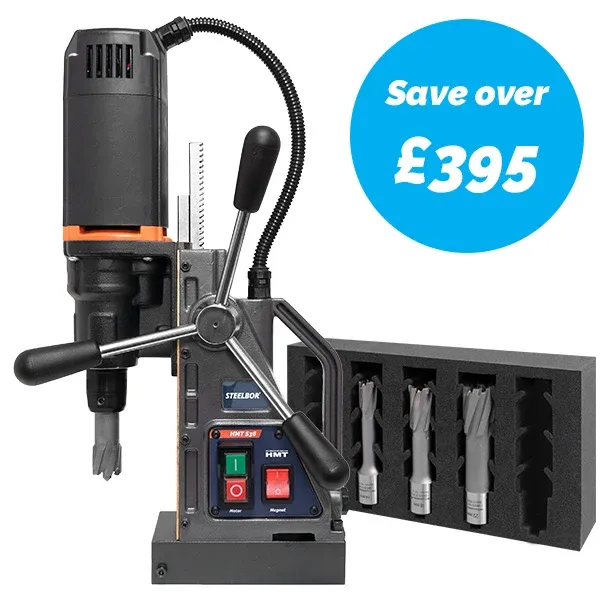

S36 Compact Mag Drill + TCT Cutter Set
SKU 850236
Voltage
£359.00
4 payments of £89.75 with
In stock
1
Tax's & Shipping Costs Calculated at Checkout
S36 Compact Mag Drill + TCT Cutter Set
Product Details
Combine the S36 with Carbidemax 55 TCT Broach Cutters for deeper cuts, faster job turnaround, and site-ready durability — all in a compact, portable form.
Built to outperform other compact drills, the S36 combines a 110mm cutting depth with a highpower Eibenstock motor. Designed for structural steel and access-critical jobs, it pairs perfectly with Versadrive tooling and standard broach cutters for fast, flexible holemaking.
- Cutter set worth over £160!
- 110mm cutting depth for deep broaching & countersinking
- Drills up to 36mm diameter in structural steel
- High-performance motor delivers smooth, fast cutting
- Lightweight for easier transport and access work
- Weldon shank compatible for full cutter flexibility
- Drill & countersink using Versadrive quick-change tools
Supplied in protective site case.
Technical Specification
| MAX TCT CUTTER CAPACITY | 36mm |
| MAX HSS CUTTER CAPACITY | 32mm |
| MAX CUTTER LENGTH | 110mm |
| TWIST DRILL CAPACITY | 13mm |
| MAX TAP CAPACITY | N/A |
| MAX COUNTERSINKING | 25mm |
| LENGTH | 259mm |
| WIDTH (Inc Handles) | 156mm |
| HEIGHT (Min-Max) (exc. cable gland) | 348-495mm |
| STROKE | 147mm |
| WEIGHT | 10kg |
| MAGNET (L X W) | 160 x 80mm |
| MAGNETIC ADHESION | 1015kgs |
| MOTOR POWER | 1050w |
| SPEED RPM (No Load) | 800min-1
|
| SPINDLE | 3/4" Weldon
|
| ARBOR | Integral ¾" Weldon |
| COOLANT SYSTEM | Optional Extra |
| WARRANTY | 2 Year (When registered) |
*Supplied with metal safety guard, restraint strap and handles
