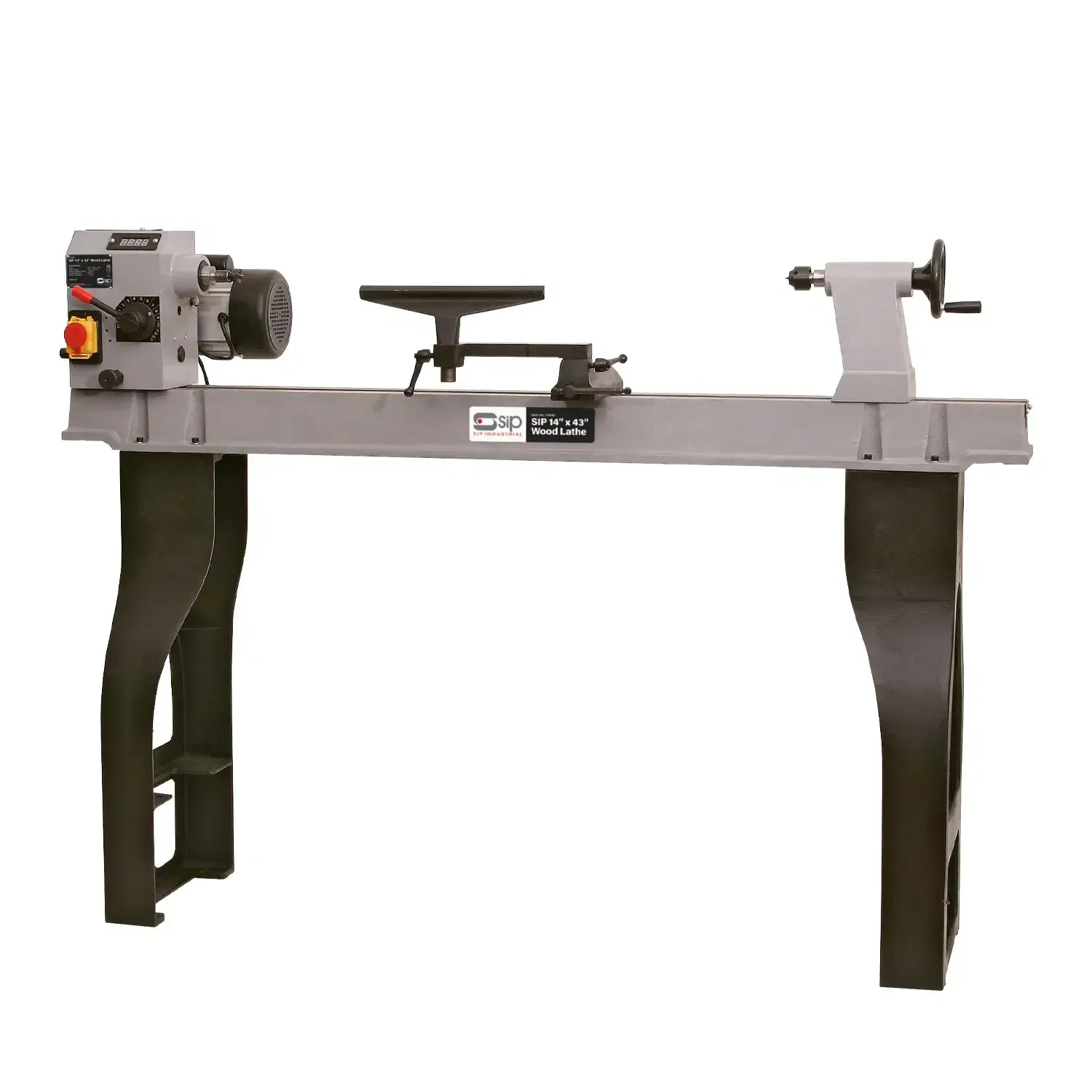

The SIP 14" x 43" Swivel Head Wood Lathe is an ideal solution for those seeking a robust and adaptable lathe for woodturning. Crucial to a functioning workshop, this machine tool allows a woodturner to accurately shape, turn, drill and sand workpieces to the desired specification.
For added functionality, a 360° swivel headstock with four locking positions is fitted to allow outboard turning of larger wood materials. Heavy-duty cast iron legs are fitted to the lathe to maximise stability during this process. The lathe bed, headstock and tailstock are also manufactured to a professional finish from heavy-duty cast iron.
The headstock has an MT1 taper and tailstock an MT2 taper alongside a variable speed motor which runs between 500rpm and 2000rpm. The easy-change speed handle has 10 settings and a digital readout speed display for greater turning control.
Supplied with tool rest, 6" faceplate, drive and tailstock centres.
Applications & uses: Perfect for turning furniture legs, staircase spindles and bespoke woodwork items. Accurately turns, shapes, drills and sands workpieces to the desired specification. Suitable for soft and hard woods.
SIP 2-Year Standard Silver Warranty* | Find out more
3/4" x 16TPI SPINDLE THREAD SIZE
350MM MAX. TURNING DIAMETER (1100MM BETWEEN CENTRES)
360° SWIVEL HEADSTOCK WITH 4 LOCK POSITIONS
HEAVY-DUTY CAST IRON LEGS
HEAVY-DUTY CAST IRON LATHE BED
CAST IRON MT1 HEADSTOCK AND MT2 TAILSTOCK
DIGITAL SPEEDOMETER DISPLAY
FITTED WITH HOLLOW TAILSTOCK FOR LONG HOLE BORING
| ITEM NO. | 01940 |
| Input Supply: | 230v (13A) |
| Motor Power: | 750w (1hp) |
| Speed Range: | 500rpm - 2000rpm |
| Distance Between Centres: | 1100mm (43") |
| Turning Capacity: | 350mm (14") |
| Spindle Through Hole: | 10mm (Drive) / 10mm (Tailstock) |
| Drive Spur Size: | 1 Morse Taper |
| Tailstock Rotating Centre Size: | 2 Morse Taper |
| Noise Level: | 68dB(A) |
| Net Weight: | 130.00kg |
| Gross Weight: | 154.00kg |
| Product Dimensions: | 1600(H) x 1160(W) x 450mm(D) |
| Packaged Dimensions: | 1625(H) x 520(W) x 405mm(D) |
