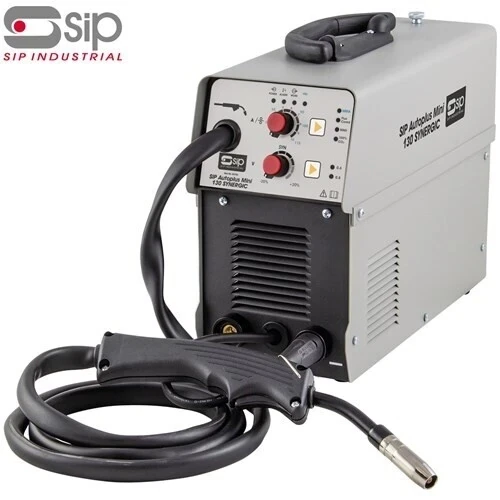

SIP Autoplus Mini 130 Synergic Inverter Welder

The SIP AUTOPLUS Mini 130 Synergic MIG/ARC Inverter utilises powerful synergic and inverter technologies to provide a superior welding arc stability, and performance in gas and gasless modes.

• 230v (13A) input supply (Supplied with Fitted Plug)
• 8mm diameter Gas hose supplied
• Dual function 2-in-1 machine; MIG and MMA
• 30A - 130A MIG output; 130A @ 35% duty cycle
• 30A - 115A MMA output; 115A @ 35% duty cycle
• 1.6mm, 2mm 2.4mm and 3.2mm Ø electrode size
• 0.6mm to 0.8mm Ø wire size; 100mm mini spools
• Offers superior welding arc stability than others
• Supplied with integrated MIG torch, Earth lead and
  clamp, electrode lead and holder, gas hose 8mm, and
  disposable welding gas bottle bracket accessories
• Starter reel of Flux Core Wire (Gassless)
• User-friendly synergic control for added versatility
• High performance in GAS and GASLESS modes
• Low current performance for car body panels
• Ideal for a range of automotive applications
• Infinitely variable power output adjustment
• 2yr Warranty
• Gas hose adapter required for disposable gas bottle regulator

When running gasless welding wire – connect the Earth to positive and Torch to negative, otherwise known as "DC electrode negative", or "straight polarity". (This is the opposite to standard MIG welding with gas, which is torch/wire positive and earth negative).

• Technical Description:

  ITEM NO.	05793
  Input Supply:	230v (13A)
  Output Current:	30A - 130A (MIG) 30A - 115A (ARC)
  Output Voltage:	15.5v - 20.5v (MIG) 21.2v - 24.6v (ARC)
  Duty Cycle:	130A @ 35% (MIG) 115A @ 35% (ARC)
  Electrode Diameter:	Ø 1.6mm, 2mm, 2.4mm, 3.2mm
  Wire Diameter:	Ø 0.6mm - 0.8mm
  Wire Spool Size:	Mini Spool
  Protection Level:	IP21S
  Insulation Class:	Class F
  Net Weight:
  Gross Weight:	20.00kg
  Product Dimensions:
  Packaged Dimensions:	340(H) x 420(W) x 260mm(D)
