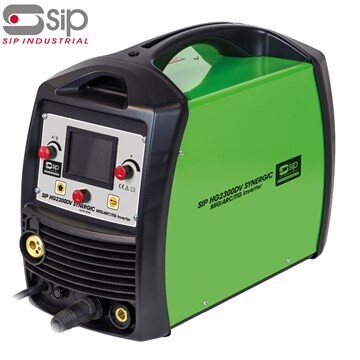

The SIP HG2300DV MIG/ARC/TIG Inverter Welder uses high-tech inverter and synergic technologies to provide performance and extra low current output for versatility across all 3 processes.

• 230v (16A) / 110v (13A) input supply
• 3-in-1 machine; MIG, ARC, and TIG processes
• 40A - 90A (110v) / 40A - 200A (230v) MIG output
• 10A - 70A (110v) / 10A - 180A (230v) ARC output
• 10A - 90A (110v) - 10A - 180A (230v) TIG output
• 0.6mm to 1mm Ø wire size; 0.7kg to 5kg spools
• Synergic curves for mild steel, stainless steel and
  aluminium; dual voltage and auto-sensing circuitry
• Select process, gas, wire size, and plate material
  thickness to automatically set parameters, with
  integrated memory for saving and loading setups
• High performance in GAS and GASLESS modes
• Heavy-duty all-metal 2-roll wire feed mechanism
• Microprocessor-controlled for added performance
• 2 touch / 4 touch / spot welding trigger functions
• Adjustable pre/post gas times and creep start
• 2 year warranty
• Related Products

• Technical Description:

  ITEM NO.	05780
  Input Supply:	230v (16A) / 110v (13A)
  Output Current:	40A - 200A / 40A - 90A (MIG) 10A - 180A / 10A - 70A (ARC) 10A - 180A / 10A - 90A (TIG)
  Output Voltage:	16v - 24v / 16v - 18.5v (MIG) 20.4v - 27.2v / 20.4v - 22.8v (ARC) 10.4v - 17.2v / 10.4v - 13.6v (TIG)
  Duty Cycle:	200A @ 40% / 90A @ 40%
  Electrode Diameter:	Ø 1.6mm - 6mm
  Wire Diameter:	Ø 0.6mm - 1mm
  Wire Spool Size:	0.7kg - 5kg
  Protection Level:	IP21S
  Insulation Class:	Class A
  Net Weight:	19.00kg
  Gross Weight:	21.00kg
  Product Dimensions:
  Packaged Dimensions:	300(H) x 170(W) x 530mm(D) 460(H) x 700(W) x 335mm(D)
