Thermacut Ex-TRAFIRE 45HD Plasma Cutter 10-45A UK

The Thermacut EX-TRAFIRE 45HD is a compact plasma cutting system built for fast, clean, and accurate metal cutting.

It’s great for cutting mild steel, stainless steel, aluminium, and other electrically conductive metals.

It is suitable for manual cutting, mechanised cutting, grid cutting, gouging, and marking, making it a handy choice for workshops, fabrication, repair work, and CNC plasma cutting.

What is the Thermacut EX-TRAFIRE 45HD Used for?

The Thermacut EX-TRAFIRE 45HD is used for cutting metal quickly and precisely.

It gives a clean plasma cut without needing a saw, grinder, or oxy-fuel setup.

Common uses include:

• Cutting mild steel

• Cutting stainless steel

• Cutting aluminium

• Workshop fabrication

• CNC plasma cutting

• Manual hand cutting

• Grid cutting

• Gouging

• Marking

• Cutting brackets, plates, panels, and repair parts

What’s Included?

Here’s what you get with the Thermacut EX-TRAFIRE 45HD:

• Thermacut EX-TRAFIRE 45HD plasma cutter

• FHT-EX 45TT plasma torch

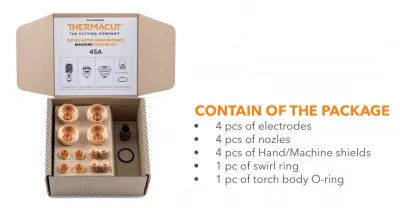

• Starter kit

• Hand torch: FHT-EX 45TTH

• 8m machine torch: FHT-EX 45TTM (optional extra)
• 15m machine torch: FHT-EX 45TTM (optional extra)

Technical Specifications

Here are the main details for the Thermacut EX-TRAFIRE 45HD:

• Cutting current: 10 - 45A

• Modes: Cutting / grid cutting / gouging / marking

• Recommended cutting capacity: 10mm

• Piercing cutting capacity: 10mm

• Severance cutting capacity: 25mm

• Rated output voltage: 145V DC

• Plasma gas: Compressed air / nitrogen / argon for marking

• Air flow: 90 l/min at 4.5 bar

• Maximum input pressure: 10 bar / 145 psi

• Input voltage: 120/230V single phase or 3 x 400V three phase, depending on version

• Frequency: 50/60Hz

• Voltage divider ratio: 50:1 when equipped with CNC interface

• Protection level: IP23S

• Insulation class: F

• Dimensions: 470 x 229 x 177mm

• Weight: 12.7kg



Safety Note

Plasma cutting creates heat, sparks, bright light, fumes, and hot metal.

Always wear suitable eye protection, gloves, protective clothing, and use the machine in a well-ventilated area.

Without safety gear, issues like arc eye may occur.

It’s always a good idea to read the user manual before using the machine.

FAQ

Can the Thermacut EX-TRAFIRE 45HD be used on a CNC plasma table?

Yes.

The EX-TRAFIRE 45HD can be used for mechanised cutting such as a CNC plasma table, and some versions include a CNC interface.

Check the exact package before ordering if you need it for CNC use.

What air supply does the Thermacut EX-TRAFIRE 45HD need?

It needs a suitable compressed air supply.

For cutting, it requires around 90 l/min at 4.5 bar, with a maximum input pressure of 10 bar.

Can the Thermacut EX-TRAFIRE 45HD cut aluminium?

Yes.

It can cut aluminium, stainless steel, mild steel, and other electrically conductive metals.

Can the Thermacut EX-TRAFIRE 45HD be used for gouging?

Yes.

It has a gouging mode as well as cutting, grid cutting, and marking modes.

What torch options are available?

The EX-TRAFIRE 45HD can be used with the FHT-EX45TTH hand torch or the FHT-EX45TTM machine torch, depending on the version selected.

Videos

More Information

The EX-TRAFIRE 45HD fact sheet fact sheet can be found here.

For more information, get in touch with us here at Xtreme Plasma.
