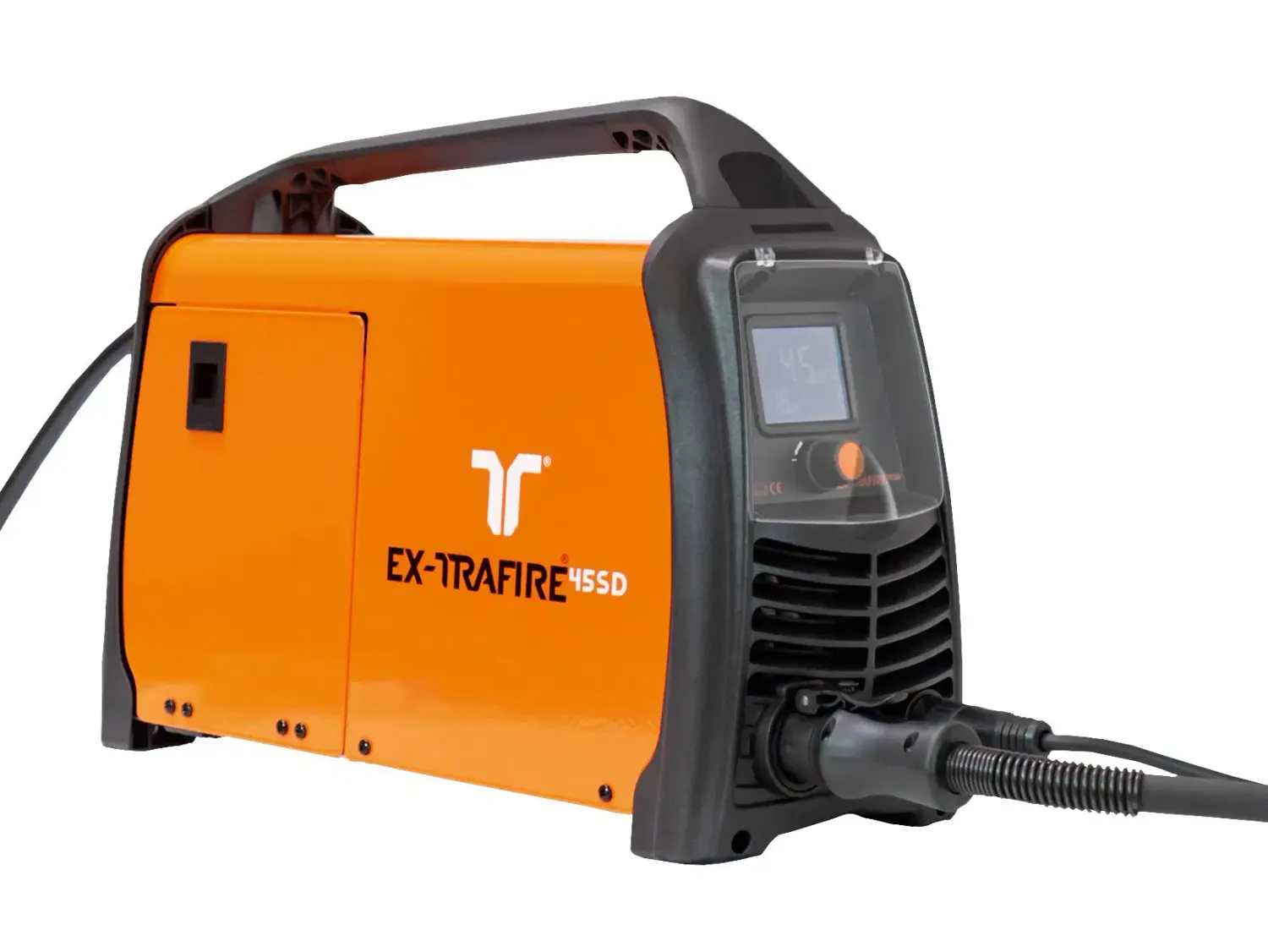

Thermacut EX-TRAFIRE® 45SD Plasma Cutter

Professional 45 Amp Plasma Cutting System

The Thermacut EX-TRAFIRE® 45SD is a professional, compact and portable plasma cutting system designed for demanding fabrication, engineering, maintenance and workshop applications.

With a maximum cutting current of 45 amps, the EX-TRAFIRE 45SD delivers reliable plasma cutting performance across a wide range of electrically conductive materials. The system supports cutting, gouging and grid cutting, making it a versatile addition to both professional workshops and CNC plasma cutting applications.

The EX-TRAFIRE 45SD is available in configurations for 230V single-phase and 400V three-phase operation, with a built-in CNC interface for connection to compatible CNC plasma cutting tables. Thermacut specifies compressed air or nitrogen as the plasma gas.

Ideal for Manual & CNC Plasma Cutting

The EX-TRAFIRE 45SD has been designed to work with both hand and machine torches, making it suitable for conventional handheld plasma cutting as well as automated CNC applications.

The integrated CNC interface and 50:1 voltage divider make the machine particularly useful for CNC plasma table installations where accurate torch height control is required.

Excellent Cutting Capacity

On the 230V single-phase version, Thermacut specifies a recommended cutting capacity of up to 12mm, a piercing capacity of up to 10mm and a severance capacity of up to 25mm on low-alloy/mild steel. Actual cutting performance will depend on material type, thickness, condition, cutting speed and consumable condition.

Compact & Portable

At just 12.7kg, the EX-TRAFIRE 45SD is easy to move around the workshop or transport to different jobs. Its compact dimensions of approximately 469 × 228 × 177mm make it an excellent choice where space and portability are important.

Key Features

45 amp maximum cutting current
20–45A cutting range on 230V
Cutting, gouging and grid-cutting modes
Suitable for compressed air or nitrogen
CNC interface
50:1 pre-adjusted voltage divider
Suitable for manual or mechanised cutting
Recommended cutting capacity up to 12mm
Piercing capacity up to 10mm
Severance capacity up to 25mm
Compact 12.7kg design
IP23S protection rating
Suitable for generator use
FHT-EX®45TTH hand torch
FHT-EX®45TTM machine torch

Thermacut EX-TRAFIRE® 45SD Specifications

Specification	230V Single Phase	400V Three Phase
Input Voltage	230V ±15%	3 × 400V ±15%
Frequency	50/60Hz	50/60Hz
Cutting Current	20–45A	20–45A
Rated Output Voltage	145V DC	145V DC
Plasma Gas	Compressed Air / Nitrogen	Compressed Air / Nitrogen
Recommended Cutting Capacity	Up to 12mm*	Up to 10mm*
Piercing Capacity	Up to 10mm*	Up to 10mm*
Severance Capacity	Up to 25mm*	Up to 25mm*
Air Flow	90 L/min @ 4.8 bar	90 L/min @ 4.8 bar
Maximum Input Pressure	10 bar / 145 psi	10 bar / 145 psi
Duty Cycle @ 40°C	50% @ 45A / 100% @ 32A	80% @ 45A / 100% @ 40A
CNC Interface	Yes	Yes
Voltage Divider	50:1	50:1
Dimensions (L × H × W)	470 × 229 × 177mm	470 × 229 × 177mm
Weight	12.7kg	12.7kg
Protection Rating	IP23S	IP23S
Insulation Class	F	F
Torch – Hand	FHT-EX®45TTH	FHT-EX®45TTH
Torch – Machine	FHT-EX®45TTM	FHT-EX®45TTM

*Cutting capacities are manufacturer figures for low-alloy/mild steel and are dependent on cutting conditions.

Duty Cycle

The EX-TRAFIRE 45SD provides a 50% duty cycle at 45A on 230V single phase, increasing to 100% at 32A.

The three-phase version provides an even higher duty cycle of 80% at 45A and 100% at 40A, making the three-phase configuration particularly suitable for applications requiring extended periods of plasma cutting.

EX-TRAFIRE® 45SD Consumables

Keeping your plasma torch fitted with good-quality consumables is essential for maintaining consistent cutting performance.

We supply Thermacut EX-TRAFIRE 45SD consumables for the FHT-EX®45TTH and FHT-EX®45TTM torch systems, including replacement wear parts for routine maintenance.

Depending on the torch configuration, consumables include components such as:

Electrodes
Cutting nozzles
Shield caps
Swirl rings
Other replacement torch components

Regularly checking and replacing worn consumables can help maintain cut quality, improve consumable life and reduce unnecessary downtime.

Thermacut EX-TRAFIRE 45SD for CNC Plasma Tables

The EX-TRAFIRE 45SD is an excellent option for customers looking for a CNC-compatible 45 amp plasma cutter.

With its integrated CNC interface and 50:1 voltage divider, the machine can be connected to compatible CNC plasma cutting systems. The machine torch option makes it suitable for automated plasma cutting applications where consistent torch positioning and cutting performance are required.

Whether you're upgrading an existing CNC plasma table or building a new system, the EX-TRAFIRE 45SD offers a compact and versatile plasma power source.

Why Buy the EX-TRAFIRE 45SD from Xtreme Plasma?

At Xtreme Plasma, we specialise in CNC plasma cutting equipment, plasma cutters, CNC plasma tables, torches and consumables.

We can supply the Thermacut EX-TRAFIRE 45SD, along with compatible consumables and CNC plasma cutting equipment.

If you're unsure which configuration, torch or consumables you require, contact Xtreme Plasma for advice before ordering.

Thermacut EX-TRAFIRE® 45SD – Compact. Professional. CNC Ready.

A versatile 45 amp plasma cutting system for professional fabrication, workshop and CNC plasma cutting applications.
