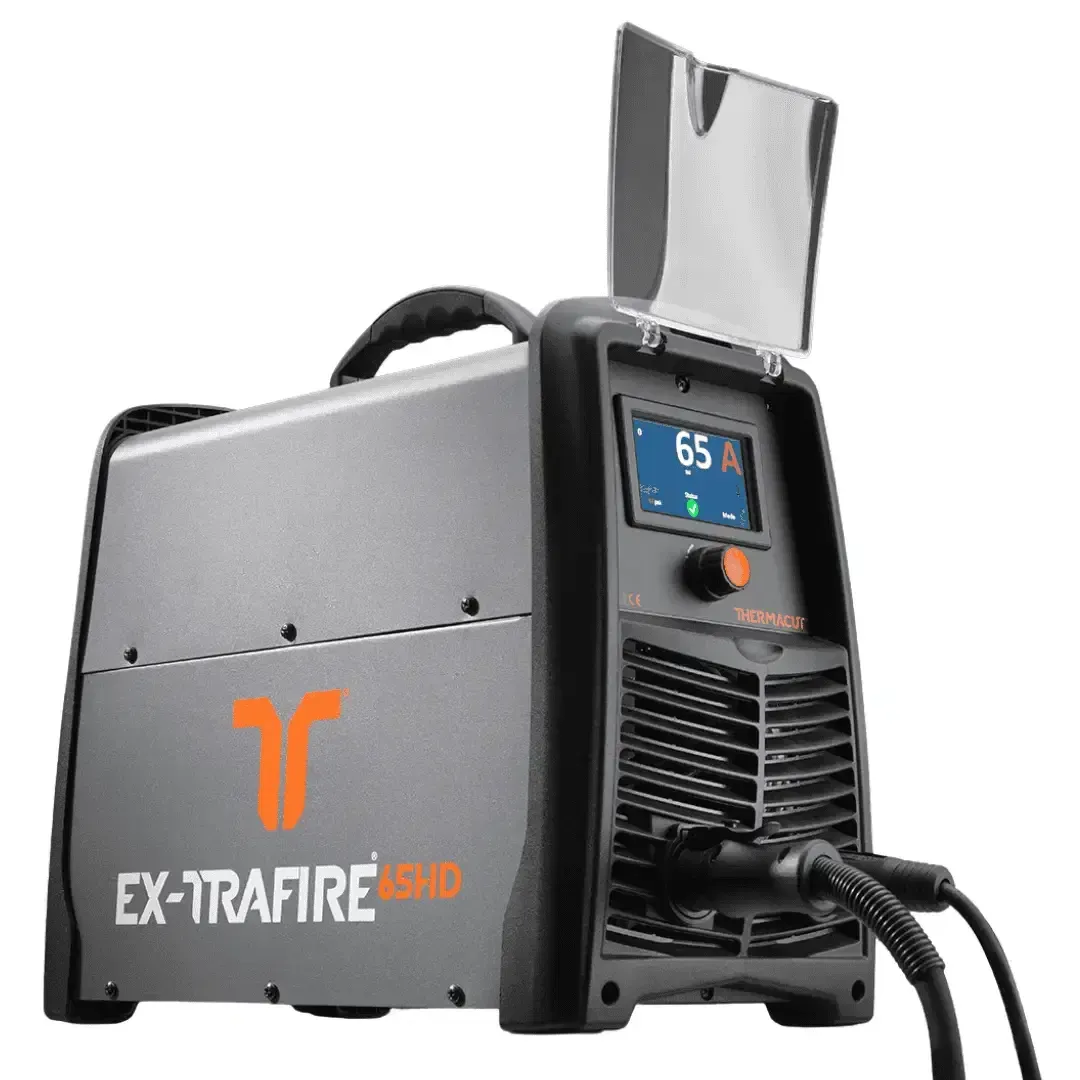

Thermacut Ex-TRAFIRE 65HD Plasma Cutter 10-65A UK

The Thermacut EX-TRAFIRE 65HD is a powerful plasma cutter built for fast, clean, and accurate metal cutting.

It is suitable for heavier workshop cutting, manual cutting, mechanised cutting, grid cutting, gouging, and marking, making it a strong choice for fabrication, repair work, industrial jobs, and CNC plasma cutting.

What is the Thermacut EX-TRAFIRE 65HD Used for?

The Thermacut EX-TRAFIRE 65HD is used for cutting metal quickly, cleanly, and precisely.

It gives a strong plasma cut for thicker materials without needing a saw, grinder, or oxy-fuel setup.

Common uses include:

• Cutting mild steel

• Cutting stainless steel

• Cutting aluminium

• Workshop fabrication

• CNC plasma cutting

• Manual hand cutting

• Mechanised cutting

• Grid cutting

• Gouging

• Marking

• Cutting brackets, plates, panels, frames, and repair parts

What’s Included?

Here’s what you get with the Thermacut EX-TRAFIRE 65HD:

• Thermacut EX-TRAFIRE 65HD plasma cutting system

• FHT-EX 105TT plasma torch

• Starter kit

• 8m machine torch: FHT-EX 105TTM (optional extra)

• 15m machine torch: FHT-EX 105TTM (optional extra)

Technical Specifications

Here are the main details for the Thermacut EX-TRAFIRE 65HD:

• Cutting current: 10 to 65A

• Modes: Cutting / grid cutting / gouging / marking

• Duty cycle at 40°C: 100% at 65A

• Recommended cutting capacity: 18mm

• Piercing cutting capacity: 18mm

• Severance cutting capacity: 30mm

• Rated output voltage: 170V DC

• Plasma gas: Compressed air / nitrogen / argon for marking

• Air flow: 82 l/min at 5.2 bar

• Maximum input pressure: 10 bar / 145 psi

• Input voltage: 3 x 400V three phase

• Frequency: 50/60Hz

• Voltage divider ratio: 50:1 when equipped with CNC interface

• Protection level: IP23S

• Insulation class: F

• Dimensions: 560 x 400 x 260mm

• Weight: 20.4kg



Safety Note

Plasma cutting creates heat, sparks, bright light, fumes, and hot metal.

Always wear suitable eye protection, gloves, protective clothing, and use the machine in a well-ventilated area.

Without safety gear, issues like arc eye may occur.

It’s always a good idea to read the user manual before using the machine.

FAQ

Can the Thermacut EX-TRAFIRE 65HD be used on a CNC plasma table?

Yes.

The EX-TRAFIRE 65HD can be used for mechanised cutting such as a CNC plasma table, and some versions include a CNC interface.

Check the exact package before ordering if you need it for CNC use.

What air supply does the Thermacut EX-TRAFIRE 65HD need?

It needs a suitable compressed air supply.

For cutting, it requires around 82 l/min at 5.2 bar, with a maximum input pressure of 10 bar.

Can the Thermacut EX-TRAFIRE 65HD cut aluminium?

Yes.

It can cut aluminium, stainless steel, mild steel, and other electrically conductive metals.

Can the Thermacut EX-TRAFIRE 65HD be used for gouging?

Yes.

It has a gouging mode as well as cutting, grid cutting, and marking modes.

What torch options are available?

The EX-TRAFIRE 65HD can be used with the FHT-EX 105TTH hand torch or the FHT-EX 105TTM machine torch, depending on the version selected.

More Information

The EX-TRAFIRE 65HD fact sheetfact sheet can be found here.

For more information, get in touch with us here at Xtreme Plasma.
