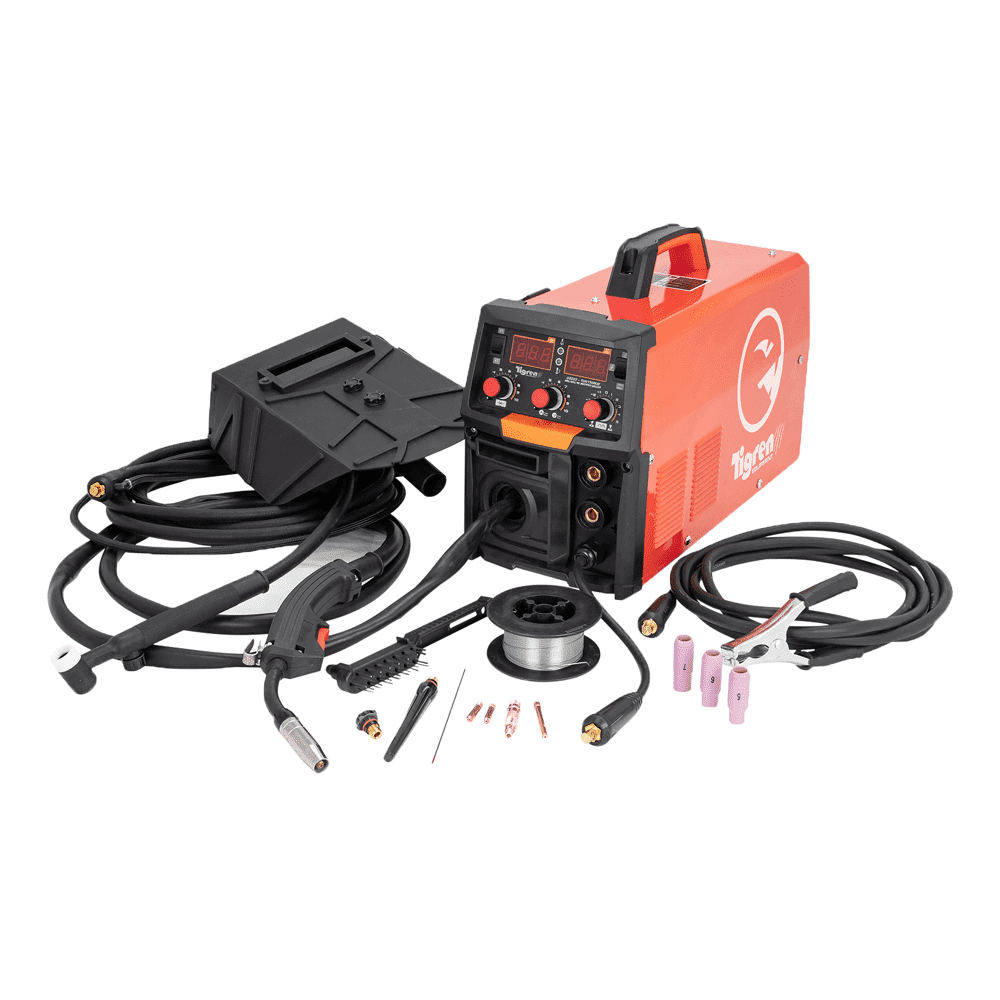

TIGREN TGN150MAT MIG/ARC/TIG
INVERTER WELDER
FEATURES & BENEFITS
MIG Welding Tutorial
4-in-1 machine for Gas/Gasless MIG, ARC/MMA, Lift-TIG welding
Infinitely variable output settings for high versatility in all tasks
Integrated IGBT inverter technology platform
Lightweight and compact design for simple portability
2-roll wire feed unit with wired-in MIG welding torch
Suitable for Ø 100mm and Ø 200mm MIG wire mini spools
Ideal for a range of home, trade, and professional applications
Perfect for repair and maintenance of vehicles and other projects
Supplied with wired-in MIG torch, 3mtr 200A Earth lead, 3mtr 200A electrode lead, handheld shield, chipping hammer, 4mtr WP17V TIG torch, TIG ceramic shield, 1.6mm collet, 1.6mm collet body, 1.6mm Tungsten electrode, 200g 0.8mm flux-cored wire, and 2x 0.8mm MIG contact tips
When running gasless welding wire – connect the Earth to positive and Torch to negative, otherwise known as "DC electrode negative", or "straight polarity". (This is the opposite to standard MIG welding with gas, which is torch/wire positive and earth negative).
ITEM NO. | 08203 |
Input Supply: | 230v (13A) |
Output Current: | 30A - 140A (MIG) 30A - 120A (MMA/TIG) |
Duty Cycle: | 130A @ 30% (MIG) 120A @ 30% (MMA/TIG) |
Electrode Diameter: | Ø 1.6mm - 2.5mm |
Wire Diameter: | Ø 0.6mm - 0.8mm |
Wire Spool Size: | Solid & Flux; Ø 100mm, 200mm |
Welding Thickness: | 1.5mm - 4mm |
Net Weight: | 9.50kg |
Gross Weight: | 13.00kg |
Product Dimensions: | 300(H) x 210(W) x 420mm(D) |
Packaged Dimensions: | 350(H) x 340(W) x 500mm(D) |
1 year RTB Warranty.
