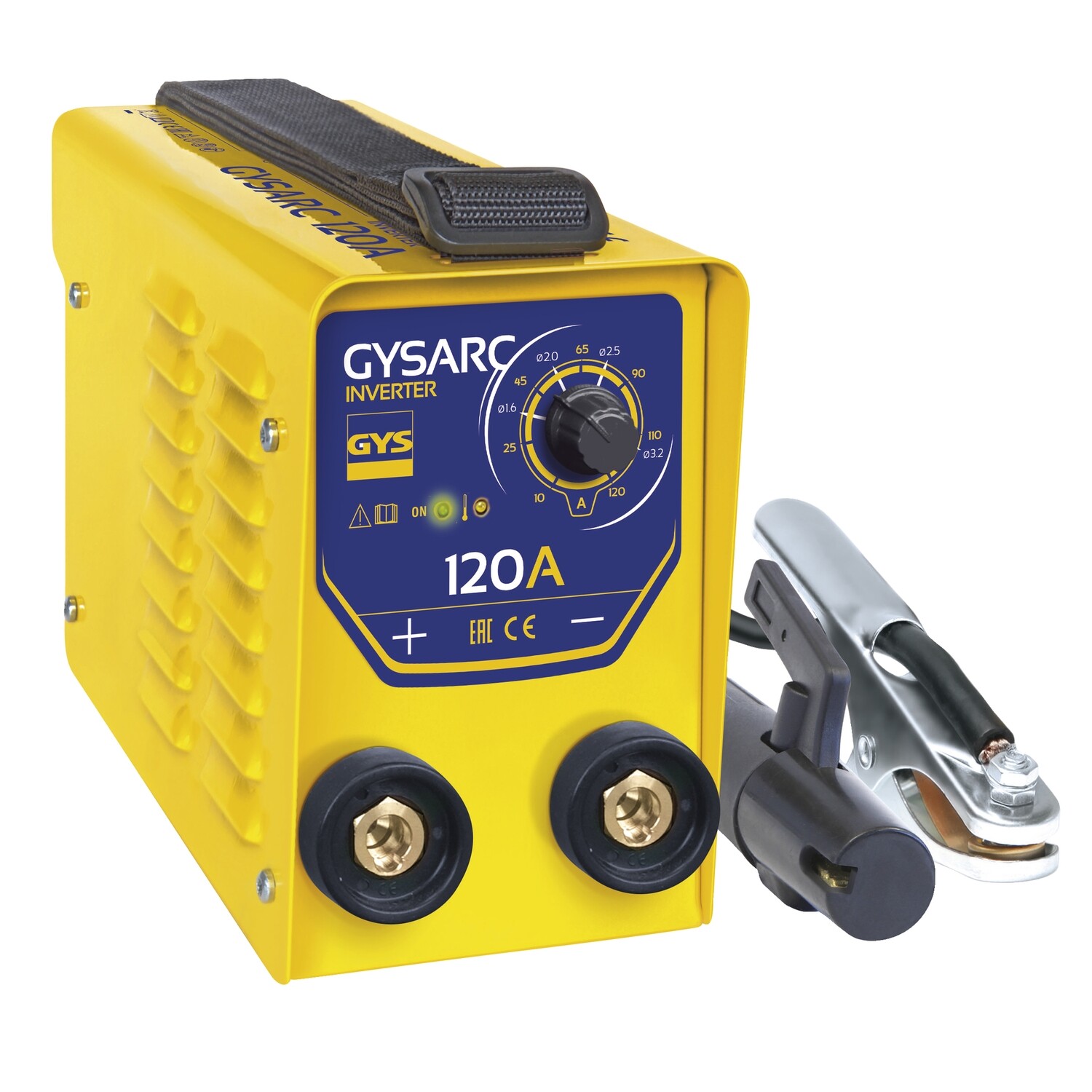

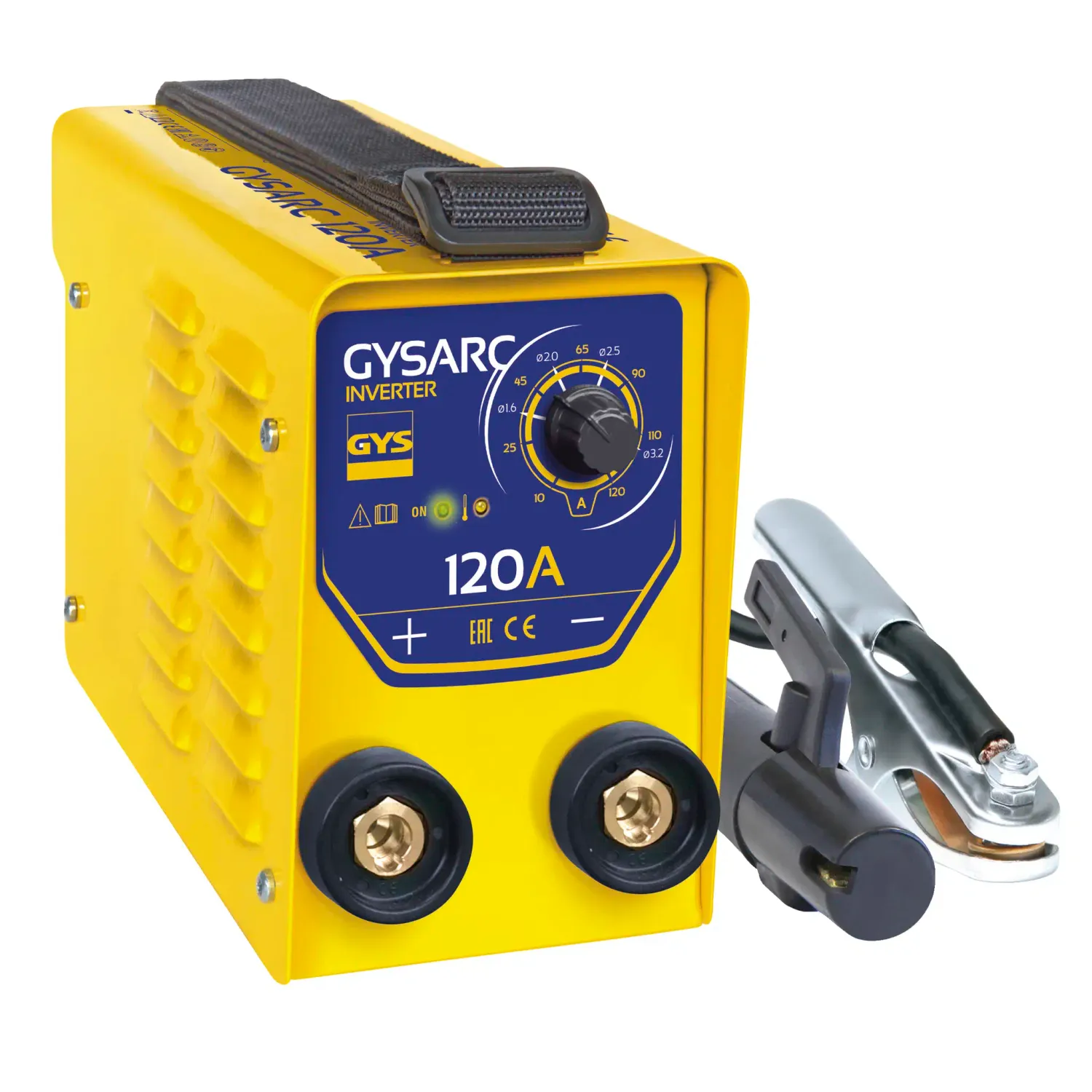

GYS 013704 GYSARC 120 MMA Single Phase Inverter

The GYS 013704 GYSARC 120 MMA Single Phase Inverter will weld most coated electrodes: rutile, stainless steel, cast iron

The GYSARC 120 is a single-phase inverter welding machine for SMAW (MMA) welding. Manufactured using the latest IGBT inverter technology, it has excellent welding characteristics and arc stability.

Features:

• Weld most coated electrodes: rutile, stainless steel, cast iron
• Immediate arcing thanks to high no-load voltage
• Constant welding power
• The continuous current makes for a very soft arc start
• High stability welding current despite varying power supply voltages
• and basic (up to Ø 3.2 mm)
• Ultra Lightweight (2.7 kg)
• Compact - its size means it can be stored anywhere (shelf, workstation, etc)
• Easy to carry using the strap as a handle or on the shoulder

Welding Features:

• Hot Start: easy arc ignition
• Arc Force: allows adjustment of the current for various welding conditions and jobs
• Antisticking: allows easier striking of the arc and minimises the risk of the welding rod sticking to the material

Comes With:

• Earth cable (1.6 m / ø 10 mm²)
• Electrode holder (1.6 m / ø 10 mm²)

Specification:

• Welding current adjustable: 10 to 120 A max
• Designed for electrodes Ø: 1.6 to 3.2 mm max
• Welding: up to 8 mm
• Dimensions: 15 x 23 x 10 cm
• Weight: 2.7 kg
