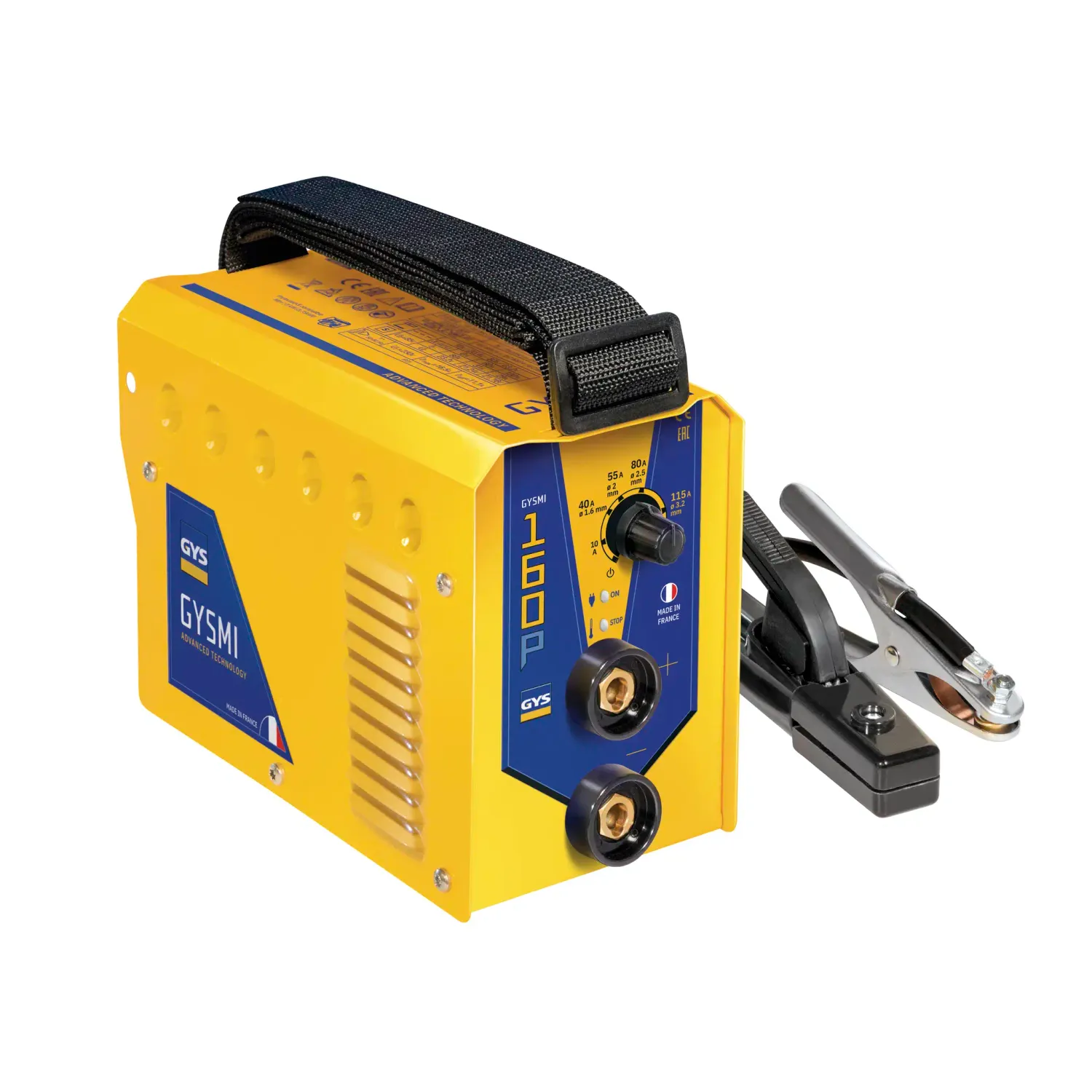

GYSMI 160 P (WITH CASE)

Product Overview

The GYS GYSMI 160P 160A MMA Inverter can weld up to 4mm electrodes. It is the No 1 selling welding machine in Europe.

Advanced features including Hot Start, Anti-sticking and Arc Force Technology.

Comes with case, electrode holder and earth clamp. (Able to weld 3.2mm electrodes on UK 13A plug).

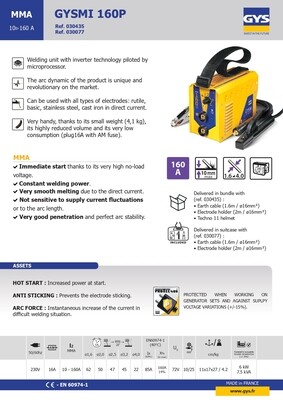

• Welding unit with inverter technology piloted by microprocessor.
• The arc dynamic of the product is unique and revolutionary on the market.
• Can be used with all types of electrodes: rutile, basic, stainless steel, cast iron in direct current.
• Very handy, thanks to its small weight (4,1 kg), its highly reduced volume and its very low consumption (plug16A with AM fuse).

MMA:

• Immediate start thanks to its very high no-load voltage.
• Constant welding power.
• Very smooth melting due to the direct current.
• Not sensitive to supply current fluctuations or to the arc length.
• Very good penetration and perfect arc stability.

Assets:

• HOT START: Increased power at start.
• ANTI STICKING: Prevents the electrode sticking.
• ARC FORCE: Instantaneous increase of the current in difficult welding situation.

Specification:

• 50/60hz: 230V.
• AM: 16A.
• I2 MMA: 10 – 160A.
• EN60974-1 (40°C) IA (60%): 85A.
• EN60974-1 (40°C) X% (60%): 160A 14%.
• U0: 72V.
• Cable Diameter: 10/25 mm.
• Dimensions: 11x17x27 cm.
• Weight: 4.2kg.
