MyPlasm CNC System (set) Promo Elektronika
Product Details
Weight: 0.37 kg
MyPlasm CNC System (set)
MyPlasm CNC System
A very simple control system for CNC Plasma Cutting Machines designed for non-professional users who are not familiar with g-codes, no knowledge of advanced control programs, CAM type programs, etc. is required.
The main idea of the program is the simplicity of operation and the minimum level of knowledge of the operator, who with a few clicks can cut a part directly from the drawing or draw simple shapes directly in the MyMini CAD module included for free.
A simple CNC control system designed for plasma cutters.

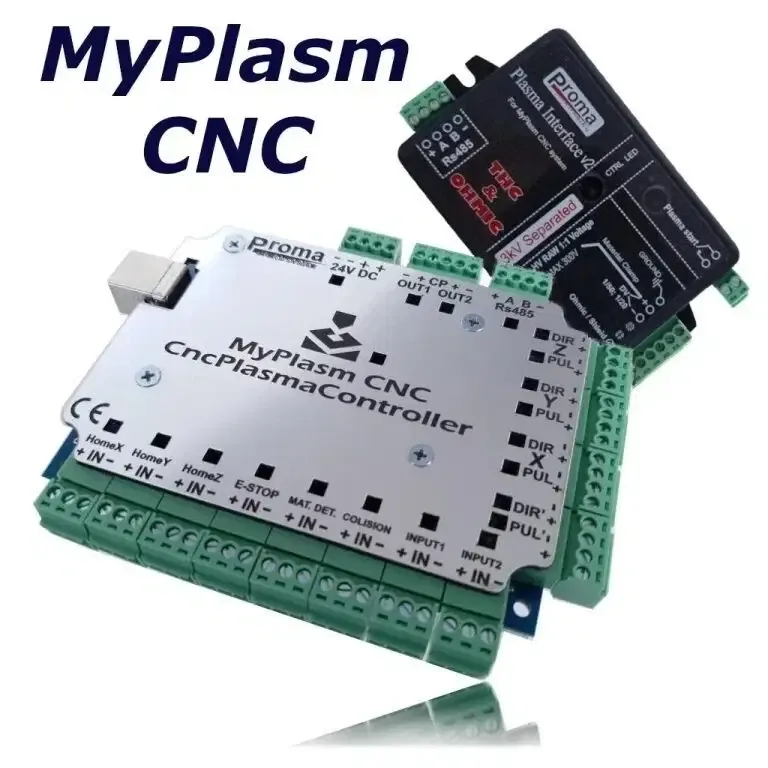

Price includes:
- CNC controller (CNC mainboard)
- Plasma interface (THC + OHMIC)
- HQ USB cable 1.5m
- Software:Download
Product Specification:
- Supply voltage: 24V DC / 600mA
- Number of supported axes: 4
- Drive control signals: Step (Pulse) / Dir (Direction)
- Max STEP signal frequency: 150kHz
- Type of supported limit switches : NPN
- Integrated THC height adjuster
- Built-in voltage divider
- Arc voltage measurement range: 0-300V
- Touch system (OHMIC)
- Floating head support
- Collision sensor support
- Accepted file types: - AutoCad (.dxf) - PLT (.hpgl; .plt) - G-Codes (.tap; .txt), 2d path only - MyMiniCad (.2d)
- Integrated MyMiniCAM module
- Integrated MyMiniCAD module
- R-TECH Grey cable output from plasma cutter, wires labeled 1 & 2 Plasma Start(No Polarity), 3 DV+, Green/Yellow DV-
Technical Support Proma-Elektronika
customs code 84669360
