Spindle V5 24v

Spindle V5 24v

SKU spindlev5 24v
24 Volt Version (no longer manufactured)
£105.00
Sold out
4 payments of £26.25 with
Sold out
Tax's & Shipping Costs Calculated at Checkout
Share this product with your friends
ShareSharePin it
Spindle V5 24v
Product Details
Weight: 0.20 kg

SpindleV5 Manual

(Made to Order)

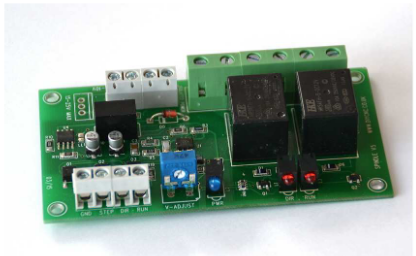

SPINDLE V5
Opto Isolated Digital to Analogue convertor board

Specifications
• Twin relays for various configurations of CW/CCW, for Run/Stop and
Forward/Reverse or Coolant pump etc, 240V AC ,10A rating, two way.
• 3KV Opto isolation
• 0-10 volt buffered output.
• Board size 95 X 51 mm, FR4, RoHS compliant.
• Can be driven direct from parallel port.
• 12 Volt or optional 24V operation, consumption <150mA
• Power indication and Relay operation LED’s
• DC/DC power isolation
• Uses Step, Direction and Run signals
• Surface mount design.
• Easily mounted in close proximity to the spindle motor removing high
voltages away from computer and low voltage circuits.
