XR943A Air Fed Welding Helmet

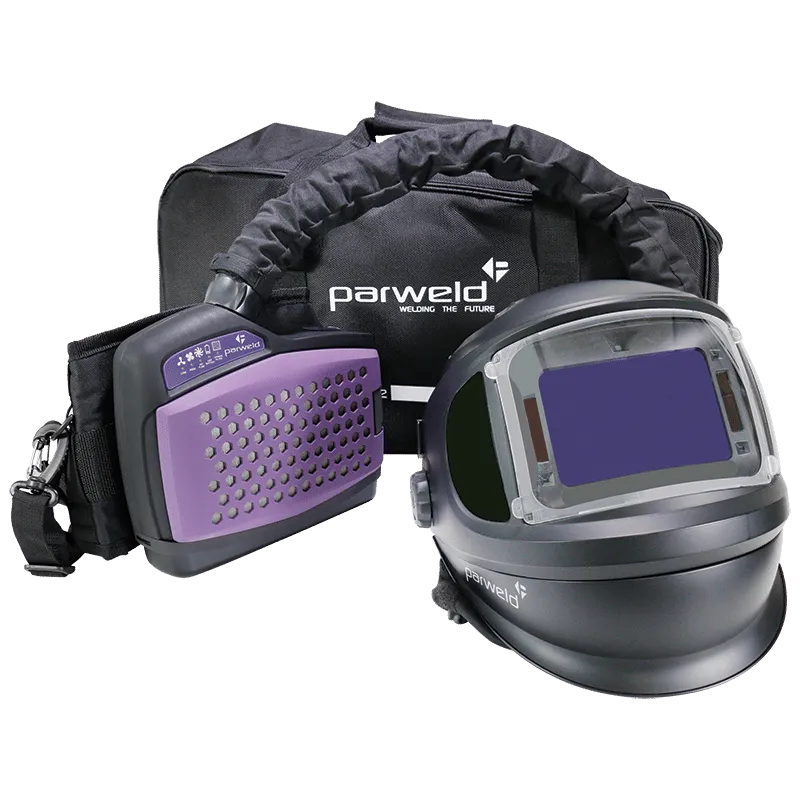

The Parweld XR943A PAPR (Powered Air Purifying Respirator) is designed for particulate environments, offering a flip-up welding and grinding helmet, a simple status display, and a smooth, ultra-quiet brushless motor with two-speed airflow control. It features audible and vibration warnings, a comfort belt with detachable shoulder straps, and a removable lithium-ion battery with a 10-hour runtime. The unit is lightweight at less than 1.1 kg and includes easy-to-operate controls. It comes supplied with an A1 P3 main filter, an activated carbon pre-filter, and a metal spark arrester for comprehensive filtration. This system is TH3P certified in accordance with European standard EN12941: 1998/A 1:2004/A2:2008 TH3P.

Th3P Filter Applications:
• Metal Grinding and Cutting Applications
• Welding of Aluminium by MIG or TIG Processes
• Welding of Stainless Steel by MIG & TIG Processes
• Welding of Steel by MMA, MIG or TIG
• Welding of Zinc Coated Steel by MIG or TIG

Kit Includes:

• PAPR Respiratory Filter System
• XR1020 – Flip-Up Front Welding & Grinding Helmet (includes Face Seal and Air Duct)
• XR1021 – Air Duct and Internal Diffuser Assembly
• XR1022 – Face Seal and Fixing Kit
• XR423 – Front Cover Lens
• XR353 – Auto-Darkening Filter (ADF)
• XR435 – Side Window Replacement Kit (includes Obscure Cover)
• XR433 – Grinding Protective Lens (Curved)
• XR434 – Inside Cover Lens (ADF)
• XR342 – Adjustable Headband
• XR372 – Sweatband
• XR373 – Headband Fixing Hand Nuts (2 Piece Set – Pair)
• XR436 – Diopter Holder Bracket (2 Piece Set – Pair)
• XR344 – Hose Clip For Headband
• CR2450 – Battery (Single)

Kit Includes the XR1020 Flip-Up Front Welding and Grinding Helmet from Parweld, equipped with a wide-view grinding visor, an LCD display, and a True Colour Auto-Darkening Filter (ADF) that offers exceptional clarity, rated at 1/1/1/1 in accordance with EN 379. The helmet contains a gradual lightening feature helps reduce eye strain, while its Light Shade DIN 3 ensures improved pre-welding visibility. The Variable Shade Control (DIN 4-13) allows for precise adjustment, enhancing comfort during various welding tasks. Ergonomically Balanced, the headgear features multiple adjustable rake positions, providing a secure fit. It includes several modes for versatile use: Auto Shade Mode for quick settings, High-Speed Tacking Mode, as well as Weld, Grind, and Cut modes. Additionally, the helmet’s memory function allows welders to easily store and recall their preferred settings for seamless operation.

Helmet Features:

• Flip Front Action
• Wide View Grinding Visor
• LCD Display
• True Colour ADF
• Light Shade 3
• Variable Shade Control 4-13
• Auto Shade Mode
• Gradual Lightening
• Settings Memory
• Highspeed Tacking Mode
• Weld, Grind, Cut Modes
• ADF Exceptional Clarity
• Optical Quality Rated 1/1/1/1 EN 1631
