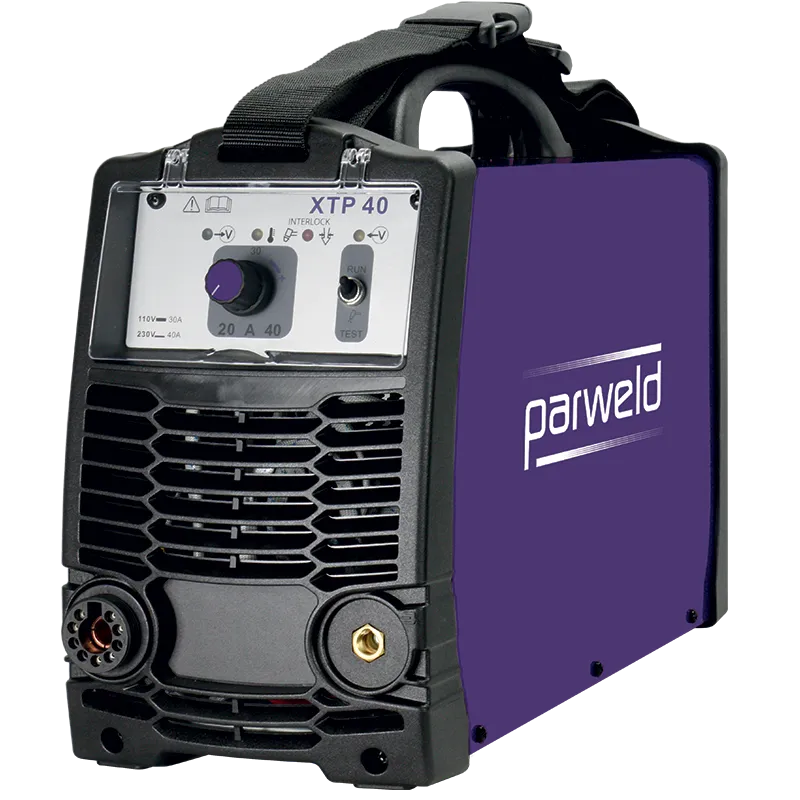

XTP 40 Dual Voltage 40A Plasma Cutter Inverter Machine
SKU XTP40
£1,381.05
In stock
1
Save this product for later
XTP 40 Dual Voltage 40A Plasma Cutter Inverter Machine
Product Details
XTP 40 Dual Voltage 40A Plasma Cutter Inverter Machine
The variable output of the XTP 40 makes it ideal for cutting metals up to 12mm thick where the output power can be fine tuned to minimise dross on the cut edges.
The pilot arc automatically re-ignites enabling easy cutting of mesh or perforated materials. Non HF ignition minimises the risk of interference with electronic systems.
The XTP 40 is able to cope with inputs which fluctuate by +/-15% & can be used with the majority of generators.
The machine is housed in a metal case with carry handle & shoulder strap.
Key Features Include:
- Dual Voltage 110V / 230V
- Smart Switching
- 40A @ 40% Duty Cycle
- Cuts Any Metal
- 12mm Production Cut
- 20mm Severance Cut
- Lightweight at just 12.6kg
- Built-in Air Pressure Regulator
- Auto Over Voltage Protection
- Over Current Protection
- Generator Friendly
- Supplied with XT4000 Plasma Cutter Torch
- Supplied with 3m Earth Cable
- Ideal for Mesh Cutting
| Weight | 12.6 kg |
|---|---|
| Dimensions | 430 × 170 × 300 mm |
| Phase |
Single Phase |
| Machine Style |
Compact, Cutting |
| Machine Type |
Inverter |
| Maximum Current |
10-40A DC |
| Duty Cycle |
40A @ 40% Duty Cycle |
| Input Voltage |
110V 1P, 230V 1P |
| Production Cut Capacity |
12mm |
| Severance Cut Capacity |
20mm |
| Input Current (Eff) |
16A, 32A |
| Starting Method |
Short Circuit |
| Output |
DC |
| Plasma Built-In |
Air Pressure Regulator |
| Minimum Fuse Rating |
14.8A, 18.5A |
| KVA |
3.7 |
| Generator Size (Requires AVC) |
5 KVA |
| Cooling |
Air, Fan, Forced |
| Enclosure Protection |
IP23S |
| Comes With |
3m Earth Cable, 3m Input Cable, XT4000 Plasma Torch |
| Ideal for Applications |
Agricultural, DIY, HVAC, Light Industrial Manufacturing, Maintenance Repair, Site Work |
| Special Features |
Cuts any metal, Ideal for Mesh Cutting, Over Voltage + Over Current Protection |
| Warranty |
5 Year Warranty |
| Conforms To |
IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Compliant |
| Weight | 12.6 kg |
|---|---|
| Dimensions | 430 × 170 × 300 mm |
| Phase |
Single Phase |
| Machine Style |
Compact, Cutting |
| Machine Type |
Inverter |
| Maximum Current |
10-40A DC |
| Duty Cycle |
40A @ 40% Duty Cycle |
| Input Voltage |
110V 1P, 230V 1P |
| Production Cut Capacity |
12mm |
| Severance Cut Capacity |
20mm |
| Input Current (Eff) |
16A, 32A |
| Starting Method |
Short Circuit |
| Output |
DC |
| Plasma Built-In |
Air Pressure Regulator |
| Minimum Fuse Rating |
14.8A, 18.5A |
| KVA |
3.7 |
| Generator Size (Requires AVC) |
5 KVA |
| Cooling |
Air, Fan, Forced |
| Enclosure Protection |
IP23S |
| Comes With |
3m Earth Cable, 3m Input Cable, XT4000 Plasma Torch |
| Ideal for Applications |
Agricultural, DIY, HVAC, Light Industrial Manufacturing, Maintenance Repair, Site Work |
| Special Features |
Cuts any metal, Ideal for Mesh Cutting, Over Voltage + Over Current Protection |
| Warranty |
5 Year Warranty |
| Conforms To |
IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Compliant |
