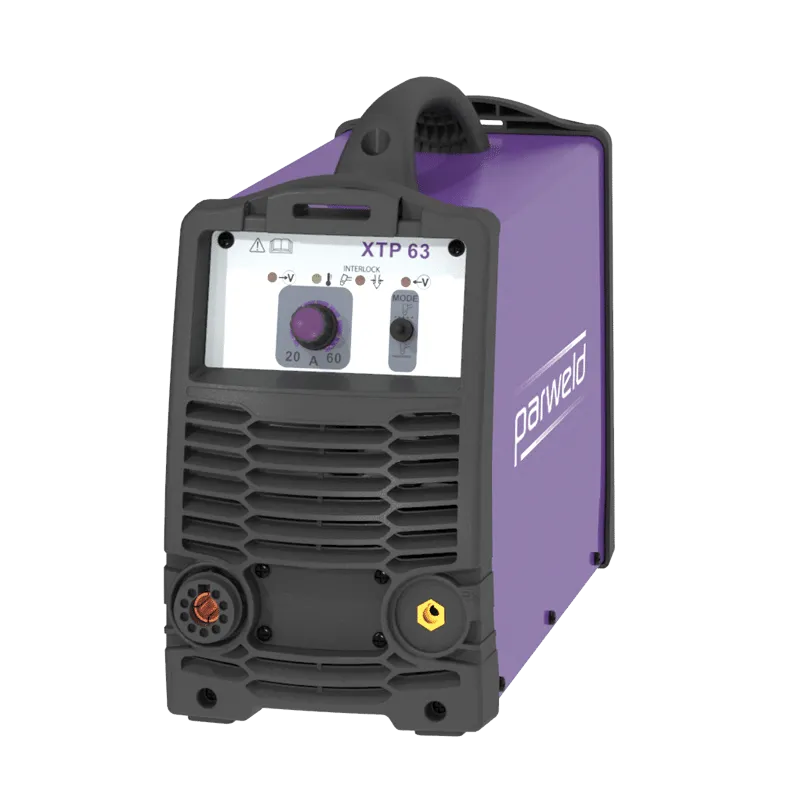

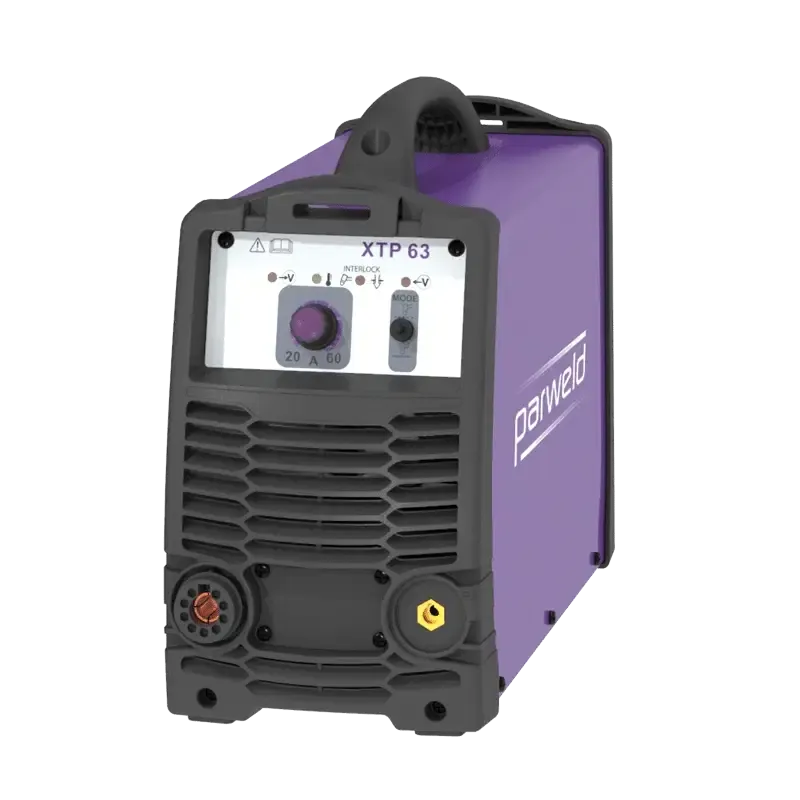

XTP 63 60A Plasma Cutter Inverter Machine
SKU XTP63
£1,512.15
In stock
1
Save this product for later
XTP 63 60A Plasma Cutter Inverter Machine
Product Details
XTP 63 60A Plasma Cutter Inverter Machine
The variable output of the XTP 63 makes it ideal for cutting metals up to 20mm thick. Infinite power control allows the output to be tuned to minimise dross on the cut edges.
The pilot arc automatically re-ignites enabling easy cutting of mesh or perforated materials. Non HF ignition minimises the risk of interference with electronic systems.
The XTP 63 is able to cope with inputs which fluctuate by +/-15% & can be used with the majority of generators.
The machine is housed in a metal case with carry handle.
Key Features Include:
- 400V, 3 Phase Input
- 60A @ 40% Duty Cycle
- Cuts Any Metal
- 20mm Production Cut
- 30mm Severance Cut
- Lightweight at just 13kg
- Built-in Air Pressure Regulator
- Built-in Air Pressure Gauge
- Auto Over Voltage Protection
- Over Current Protection
- Generator Friendly
- Supplied with XT4000 Plasma Cutter Torch
- Supplied with 3m Earth Cable
- Ideal for Mesh Cutting
| Weight | 13 kg |
|---|---|
| Dimensions | 450 × 170 × 310 mm |
| Phase |
Three Phase |
| Machine Style |
Compact, Cutting |
| Machine Type |
Inverter |
| Maximum Current |
10-60A |
| Duty Cycle |
60A @ 40% Duty Cycle |
| Input Voltage |
400V 3P |
| Production Cut Capacity |
20mm |
| Severance Cut Capacity |
30mm |
| Input Current (Eff) |
7.6 |
| Starting Method |
Short Circuit |
| Output |
DC |
| Plasma Built-In |
Air Pressure Regulator, Pressure Gauge |
| Minimum Fuse Rating |
20A |
| KVA |
7 |
| Generator Size (Requires AVC) |
10 KVA |
| Cooling |
Air, Fan, Forced |
| Enclosure Protection |
IP23S |
| Comes With |
3m Earth Cable, 3m Input Cable, XT4000 Plasma Torch |
| Ideal for Applications |
Agricultural, DIY, Industrial Manufacturing, Maintenance Repair, Metal Fabrication, Scrap Cutting |
| Special Features |
Cuts any metal, Ideal for Mesh Cutting, Over Voltage + Over Current Protection |
| Warranty |
5 Year Warranty |
| Conforms To |
IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Compliant |
