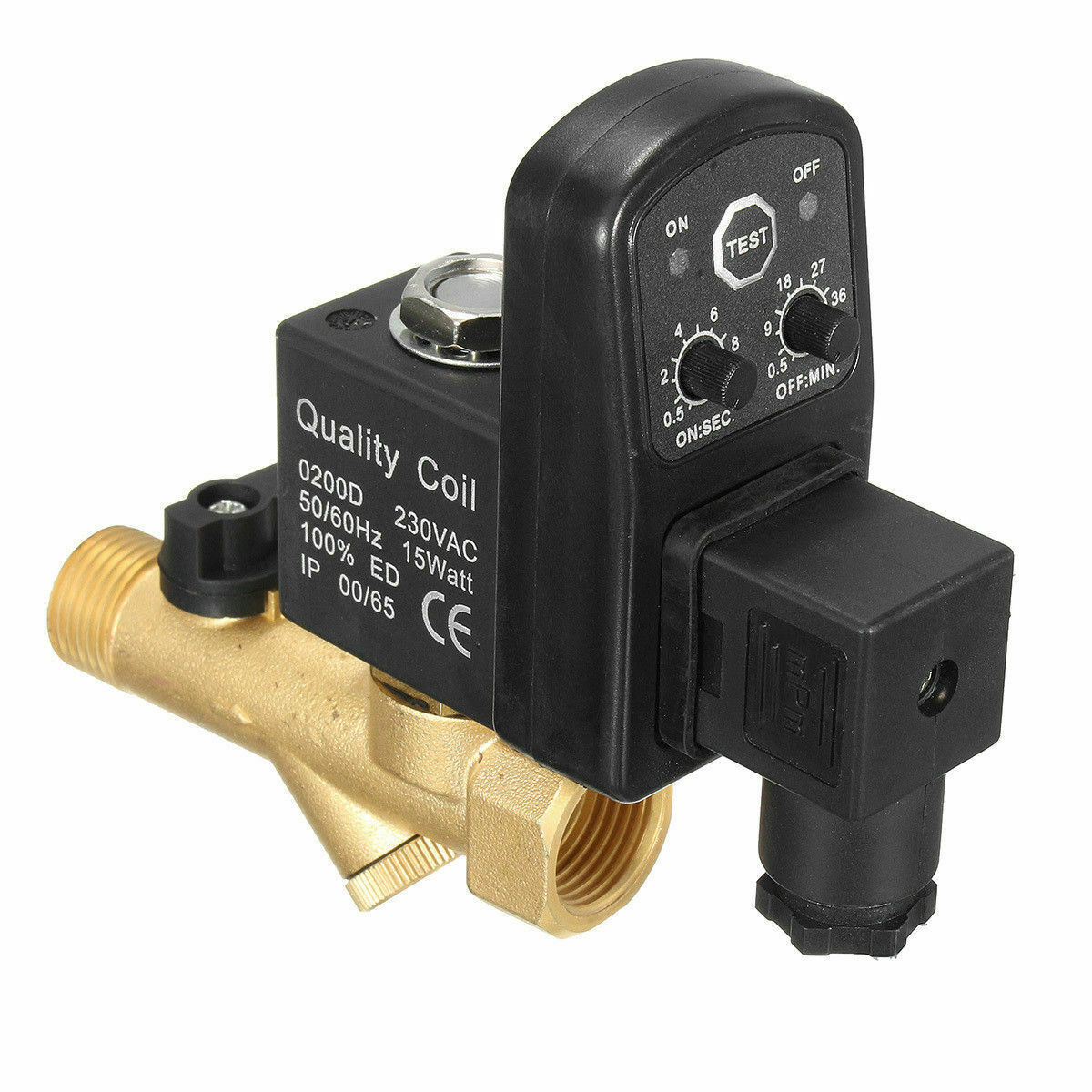

AC 220V 1/2 Automatic Electronic Timed Air Compressor Auto Drain Valve

No Fitted Plug Supplied

Wiring the solenoid

Details:

Material: Metal

In/Out Port Size: 1/2"BSP

Flow Aperture: 5mm

Indicator Lamp: LED indicating power on / off

Voltage Range: ±10%

Protection Grade: IP65

Insulation: Class H

Maximum Working Pressure: 1.6Mpa

Maximum Temperature: 90°C

Ambient Temperature: -40°C to 60°C

The Largest Current Consumption: 4mA

Power Supply Voltage: 24-240V AC/DC 50/60Hz

Discharge Time (ON): 0.5--10 seconds

Time Interval (OFF): 0.5--45 minutes

Application: Widely used in filters, separators, dryers, gas tank, drip legs and other compressed air system components.

Package Contents:

1 * Electronic Drain Valve

Installation:

1. Clean the compressed air system before installation.

2. Note the direction of the arrow when installing the valve : outlet do not use the hose that not against the impact of air.

3. Power supply voltage should be consistent with the drain valve voltage: the positive pole must be connected to connector "1" when using DC.

4. When leave the factory the drain valve has connected to the cable, brown is Live L,blue is the Neutral N,yellow-green color is the safety ground wire GND.

5. Be sure to tighten the long screw on the terminal box to prevent water from burning.

Warning! When installing the electronic drain valve, make sure that:

1. Compressed air has been emptied (that is, under zero pressure).

2. The power supply has been switched off.

Xtreme Engineering do not supply a fitted plug please use a Qualified Electrian for installation
