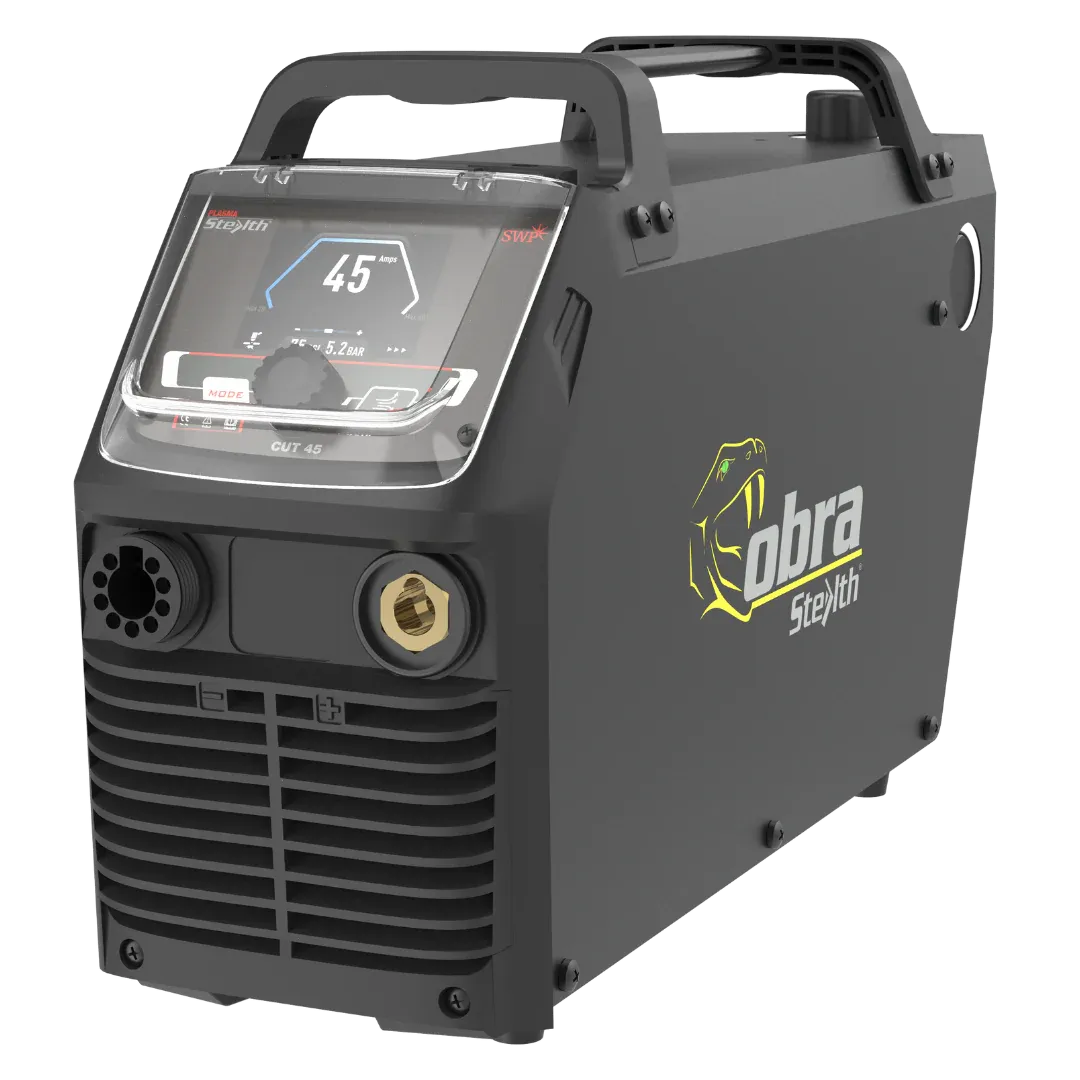

Cobra by Stealth Cut 45 PFC LCD Plasma Cutting Machine
SKU 9130H
£750.00
NEW
£750 +vat Suitable for Arcdroid
In stock
1
Save this product for later
Cobra by Stealth Cut 45 PFC LCD Plasma Cutting Machine
Product Details
The Cobra by Stealth Cut 45 PFC LCD Plasma Cutting Machine offers 3 modes for increased versatility: standard cutting, mesh cutting, and air gouging. With a multi voltage capability and 0.99 power factor correction, this machine is efficient and precise. The mcu control system and 2.8 inch LCD display provide advanced control for optimal results.
Features
- LCD screen
- PFC technology: Power factor more than .99
- Pilot arc controller
- Protective alarm functions
- Back striking tip and electrode
- Quick release torch
- PC7100H included
- 5 year warranty
- 110/230V
Multi input voltage
The Cobra by Stealth Cut 45 PFC LCD Plasma Cutting Machine offers multiple advantages, including energy-saving technology for efficient operation and the flexibility to work with dual input voltages of 110V and 230V, making it adaptable to a wide range of working environments.
The Cobra by Stealth Cut 45 PFC LCD Plasma Cutting Machine features a new, modern appearance and redesigned control panel, combining a trendy, professional aesthetic with an intuitive, user-friendly layout for enhanced ease of use and operator satisfaction.
The Cobra by Stealth Cut 45 PFC LCD Plasma Cutting Machine is equipped with an LCD screen, providing precise control over settings and real-time feedback on cutting output, ensuring accuracy and ease of operation.
The Cobra by Stealth Cut 45 PFC LCD Plasma Cutting Machine features advanced PFC (Power Factor Correction) technology, achieving a power factor greater than 0.99, ensuring exceptional energy efficiency and reduced power consumption.
IGBT parallel balanced current technology and digital control technology.
The Cobra by Stealth Cut 45 PFC LCD Plasma Cutting Machine incorporates advanced IGBT parallel balanced current technology and digital control technology, delivering precise performance, enhanced reliability, and improved cutting stability.
The Cobra by Stealth Cut 45 PFC LCD Plasma Cutting Machine is equipped with an EMI filter, effectively reducing electromagnetic interference (EMI) transmission, ensuring stable operation and protecting sensitive electronic equipment.
The Cobra by Stealth Cut 45 PFC LCD Plasma Cutting Machine features a non-high-frequency start, ensuring smooth operation without causing interference to nearby controls or computer systems.
The Cobra by Stealth Cut 45 PFC LCD Plasma Cutting Machine is equipped with a Pilot Arc Controller, which enhances cutting capabilities and speeds while extending tip life. This feature allows for efficient cutting of net-like workpieces and other challenging materials.
The Cobra by Stealth Cut 45 PFC LCD Plasma Cutting Machine is equipped with various protective and alarm functions for pressure, tip wear, over-temperature, and over-current, enabling faster troubleshooting and minimizing unnecessary downtime for improved productivity.
The Cobra by Stealth Cut 45 PFC LCD Plasma Cutting Machine features a back-striking tip and electrode that enhance the striking velocity and arc quality, while also extending the lifespan of these components for long-term reliability.
Technical
| Power supply voltage (V) | 90-275 | Power frequency (Hz) | 50/60 |
| Input voltage (V) |
1-110 1-230 |
Effective current (A) | 110V:18.3| 230V:14.2 |
| Rated current input (A) | 110V:31.0| 230v:22.5 | Rated input power (KW) | 110V:3.4|230V:5.1 |
| Duty cycle 110V (A) (40°C to 10 min) |
35% @ 30A 60% @ 22A 100% @ 20A |
Duty cycle 230V: (A) (40°C to 10 min) |
40% @ 45A 60% @ 36A 100% @ 28A |
| No load voltage (V) | 380 | Current range (A) | 110V:20-30| 230V:20-45 |
| Efficiency (%) | 110V:81.6| 230V:86 | Power factor | 0.99 |
| Severance cut for mild steel (mm) |
110V @ 15 230V @ 25 |
Production cut (mm) |
Carbon steel 110V @ 10 | 230V @ 20 Stainless steel 110V @ 8 | 230V @ 16 Aluminium 110V @8 | 230V @ 16 |
| Insulation class | F | Protection class | IP21S |
| Cooling | AF | Net weight (kg) | 8.5 |
| Dimensions (mm) | 500 x 150 x 290 | Standards |
EN60974:1.2021(LVD) EN60974:10.2021(EMC) 2019/125/EC (EER) |
