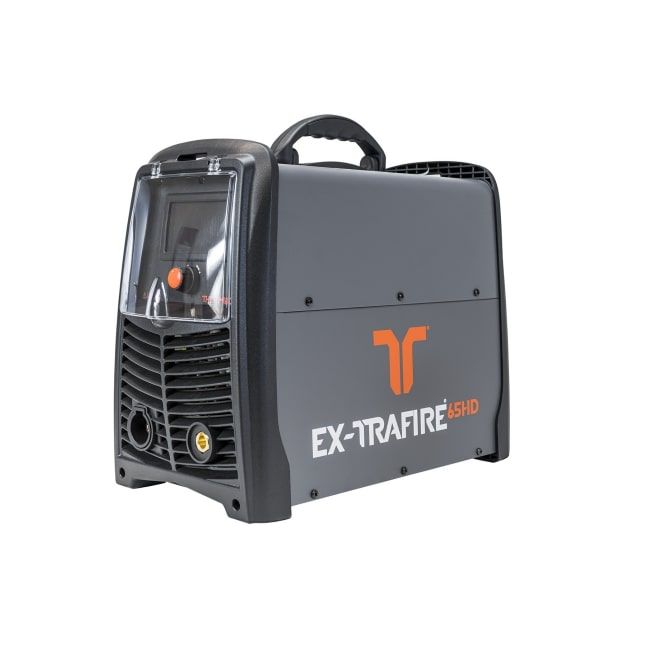

Ex-Trafire 65HD
SKU EX-3-010-052
415V CNC Ready
Plasma Torch
Please choose
£2,237.30
In stock
1
Ex-Trafire 65HD
Product Details
Weight: 22.00 kg
Ex-Trafire 65HD
IMPRESSIVE PERFORMANCE
- Extremely high cutting speed
- Maximum cutting quality
- Ideal for automated processes
READY FOR INDUSTRY 4.0
- CAN Bus interface (optional)
- RS 485 interface (optional)
- Expandable and updatable to remain extremely future-proof
- Easy monitoring
AUTOMATIC SETTINGS
- Cutting gas media, electricity and pilot current
- Compensation for pressure drops
- Fewer operating errors, better cutting quality
OPTIMAL COST-EFFECTIVENESS
- Low investment costs
- 20% longer consumable lifetime
- Low operating costs
Technical Specifications
| Cutting current | 20-65 A |
| Modes | Cutting / grid cutting / gouging / marking |
| Duty cycle @ 40°C | 100% @ 65 A |
| Rated output voltage | 170 VDC |
| Severance cutting capacity | 38 mm +* |
| Piercing cutting capacity | 25 mm* |
| Recommended cutting capacity | 25 mm* |
| Gouging removal | 2.6 kg/h +* |
| Plasma gas | Compressed air / nitrogen / argon (marking) |
| Air flow [lpm/bar] | 82/5.2 |
| CAN interface | Optional |
| RS 485 interface | Optional |
| RS 422 interface | Optional |
| Preadjusted voltage divider ratio** | 50:1 |
| Input voltage | 3×400 VAC ± 15% |
| Frequency | 50/60 Hz |
| Dimensions (L×H×W) | 560×400×260 mm |
| Weight | 20.4 kg |
| Certification depending on region | CE / CCC / C-TICK / CSA |
| Maximum input pressure | 10 bar / 145 psi |
| Protection level | IP23S |
| Insulation class | F |
