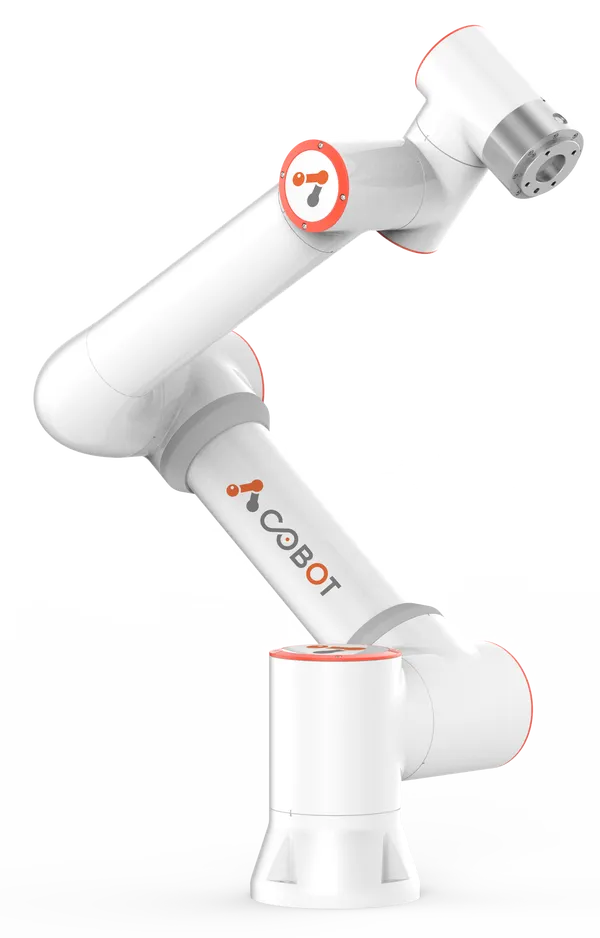

FAIRINO FR5 Cobot – 5kg 6-Axis Collaborative Robot for Welding, Plasma Cutting & Automation

FAIRINO FR5 Cobot – 5kg 6-Axis Collaborative Robot

Bring affordable robotic automation to your workshop with the FAIRINO FR5 collaborative robot (cobot).

The FR5 is a versatile 6-axis industrial cobot designed for a wide range of manufacturing and automation applications, including robotic welding, plasma cutting, machine tending, assembly, handling, dispensing and repetitive production tasks.

With a 5kg payload, 922mm reach and ±0.02mm repeatability, the FR5 provides a flexible automation platform for workshops and manufacturers looking to improve productivity without the footprint and complexity traditionally associated with industrial robot systems.

Ideal for Welding, Plasma Cutting & Workshop Automation

The FR5 can be configured for a wide range of applications. At Xtreme Plasma, we can help you explore the possibilities of using the FR5 for:

• Robotic MIG welding
• Cobot welding
• Plasma cutting
• Machine tending
• Component handling
• Repetitive production processes
• Assembly
• Pick and place
• Custom robotic automation
• Bespoke workshop applications

The robot can be combined with suitable tooling, welding equipment, plasma systems, mounting solutions and accessories to create a complete automation package around your application.

6-Axis Collaborative Robot

The six-axis design provides the flexibility required to position tooling around components from multiple angles, making the FR5 suitable for applications where a conventional linear automation system may not provide the required movement.

The FR5 has a 922mm working reach, with a 5kg rated payload and 7kg maximum payload, making it suitable for a broad range of workshop and manufacturing applications.

FR5 Specifications

Robot: FAIRINO FR5
Type: 6-axis collaborative robot
Rated payload: 5kg
Maximum payload: 7kg
Reach: 922mm
Accuracy: ±0.02mm
Protection: IP54
Communication: Modbus, Profinet, Ethernet and I/O
Development environment: C#, C++, Python, Java and ROS
Installation: Suitable for various mounting orientations
Construction: Aluminium and steel

A Flexible Automation Platform

One of the major advantages of the FR5 is its flexibility. The same cobot can be configured for different applications by changing the tooling or end-of-arm equipment.

This makes the FR5 particularly interesting for UK engineering companies, fabricators, welders and workshops that need automation but may not have the production volumes or space traditionally associated with a large industrial robot cell.

Need a Complete Cobot Solution?

Xtreme Plasma can help you select the right cobot, tooling and automation equipment for your application.

Whether you're looking to automate welding, plasma cutting, handling or another repetitive process, contact us to discuss your requirements.

Call Xtreme Plasma for more information and to discuss your application.
