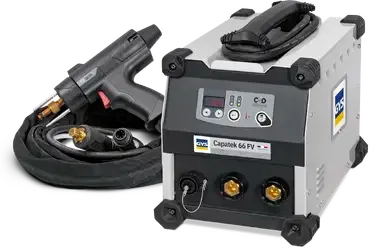

GYSTUD CAPATEK 66 FV - CONTACT GUN

The CAPATEK 66 FV is an industrial power source with capacitive contact discharge, capable of welding studs from M3 to M8 diameter in copper and stainless steel on thin sheet metal without marking or deformation. Its revolutionary ergonomic contact gun, with adjustable force, ensures ultra-fast welding rates. Its "FV" technology means you can use it on all single-phase networks (85 to 265 V).

MAXIMUM PRODUCTIVITY

66 mF capacitor discharge.

Recharge time from 0 to 5 s.

Wide choice of studs, from M3 to M8.

Compatible stud lengths: 6 to 40 mm.

CONTACT GUN

Adjustable force from 25 to 100 N with cover to prevent tampering.

Independent tripod design with bayonet lock for greater gun stability during welding and easier installation of chucks

Trigger for easy control of welding action.

LED lighting for the welding zone. Unique on the market, several functions:

- Fast flashing LED, error, unit under load.

- Slow flashing LED, reaches expected stud count.

INTUITIVE INTERFACE

Voltage setting from 50 V to 200 V.

Settings lock.

Stud counter with adjustable threshold (incremental or decremental).
