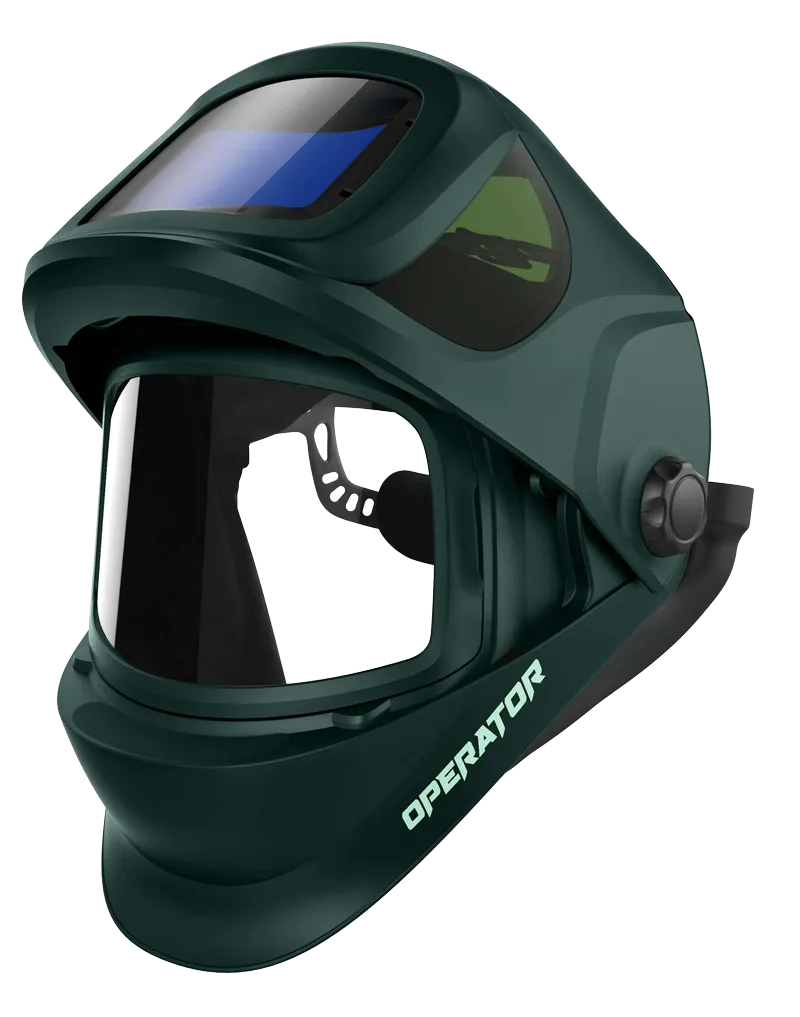

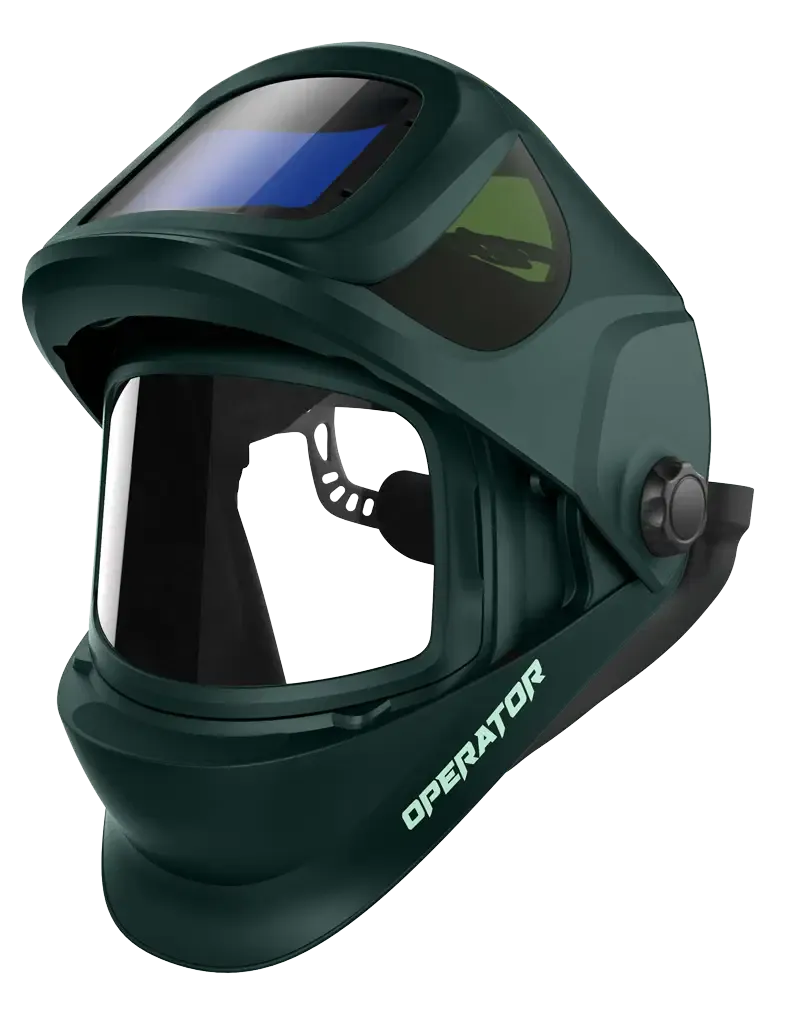

Migatronic Operator Flip-up helmet STD (Nordic Pine)

Optical Class

Approved

Viewing Area

107 x 75 mm (4.21" x 2.95")

Cartridge Size

156 x 123 x 33 mm (6.14" x 4.84" x 1.30")

Arc Sensor

4

Light State

DIN 3

Grind State

DIN 3

Cutting Shade

Shade No. from 5 to 8

Welding Shade

Shade No. from 9 to 13

Shade Control

Internal, Digital Display Control

Power On / Off

Automatic On / Off

Sensitivity Control

Low ~ High, Digital Display Control

UV/IR Protection

Up to Shade DIN13 at all times

Power Supply

Solar cell. Battery replaceable, 2 x CR2450 lithium battery

Switching Time

1/25,000 s. from Light to Dark at 55 °C (131 °F)

Grinding

Yes

Delay (Dark to Light)

0.1 ~ 1.0 s, Digital Display Control

Low Amperage TIG Rated

≥ 2 amps (DC); ≥ 2 amps (AC)

Operating Temp.

-5 °C ~ +55 °C (23 °F ~ 131 °F)

Storing Temp.

-20 °C ~ +70 °C (-4 °F ~ 158 °F)

Helmet Material

High Impact Resistance Nylon

Total Weight

778 g

Application Range

Stick Welding (SMAW); TIG DC∾ TIG Pulse DC; TIG Pulse AC; MIG/MAG/CO2; MIG/MAG Pulse; Plasma Arc Cutting (PAC); Plasma Arc Welding (PAW); Air Carbon Arc Cutting (CAC-A); Oxyfuel Gas Welding (OFW); Oxygen Cutting (OC); Grinding

Approved

CE, EN ISO 16321-1 :2022, EN ISO 16321-2:2021, EN 175, EN 166 ANSI Z87.l, Z94.3, AS/NZS 1338.l
