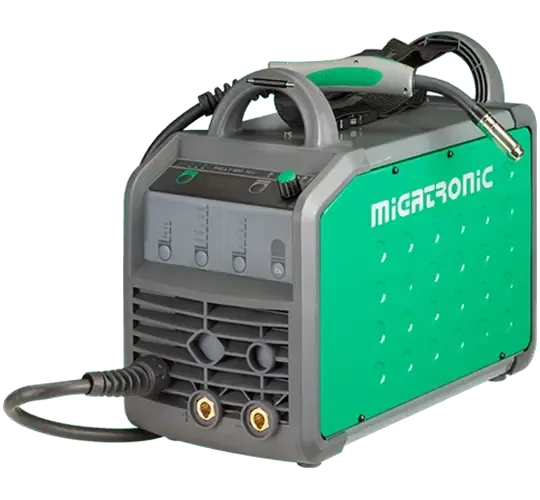

Migatronic RallyMIG
Product Details
Weight: 16.00 kg
Multi-process single-phase inverter machine designed to bring along
RallyMIG is the all-round welding machine that features both MIG/MAG, MMA and TIG welding processes. Use it for all welding tasks in mild steel, stainless steel and aluminium.
- Features MIG/MAG, MMA and TIG welding processes
- Portable
- Synergic welding programs
- Intuitive control panel, simple to operate
This versatile welding machine is excellent for any garage and well-equipped workshop given its multi-process welding properties. It is the ideal welding machine for the professional craftsman, who needs different welding processes for minor repairs indoors as well as outdoors.
| RallyMIG 161i | |
|---|---|
| Current range | 20-160 A |
| Mains voltage +/- 15 % | 1 × 230 V |
| Fuse type C | 16 A |
| Duty cycle 100 %/20 °C (MIG) | 135 A |
| Duty cycle 60 %/20 °C (MIG) | 145 A |
| Duty cycle 40 %/20 °C (MIG) | 160 A |
| Duty cycle 100 %/40 °C (MIG) | 100 A/24.0 V |
| Duty cycle 60 %/40 °C (MIG) | 115 A/24.6 V |
| Duty cycle max./40 °C | 160 A/25 %/26.4 V |
| Protection class | IP 23S |
| Open circuit voltage | 90 V |
| Dimensions (H × W × L) | 370 mm × 230 mm × 450 mm |
| Standard | EN/IEC60974 -1. - 5. -10. |
| Weight | 16 kg |
Intuitive control panel with synergic welding programs
The intuitive control panel makes the machine user-friendly and easy to operate. It features synergic welding programs – turn one knob, and the machine automatically sets all other welding parameters.
Be ready for the welding tasks of tomorrow
Always have the latest software update at hand via your SD card. Meet future requirements and be ready for any welding job. Your RallyMIG will not be outdated.
Maximum flexibility
RallyMIG comes with an ergonomic torch handle with a 360° turnable swan neck. It ensures better comfort and increased flexibility when engaging in more difficult welding positions.
Ensure maximum utilisation of power
RallyMIG features PFC (Power Factor Correction), which allows you to weld with a long mains cable.
PFC ensures maximum utilisation of the supply current and enables welding with approx. 25% higher welding current using only 16 A mains fuses.
Highlighted features
Arc Power (MMA)
Reduces the risk of the electrode sticking to the weld pool.
Arc Adjust
Arc Adjust (electronic choke) makes it possible to adjust the machine's reaction time to short-circuits. Arc Adjust can be set in steps from –5.0 to +5.0.
TIG welding with scratch ignition
Ignite the arc by scratching the tungsten electrode on the metal like when you light a match.
Hot Start (MMA)
A function that helps create the right temperature in the weld pool when you start welding. It provides extra amps for the first seconds when igniting the arc (from 0 to 10 seconds).
