Name: Operator Flip-up with PAPR kit (Midnight Black)
SKU: 82920113
Price: 621.7 GBP
Availability: InStock

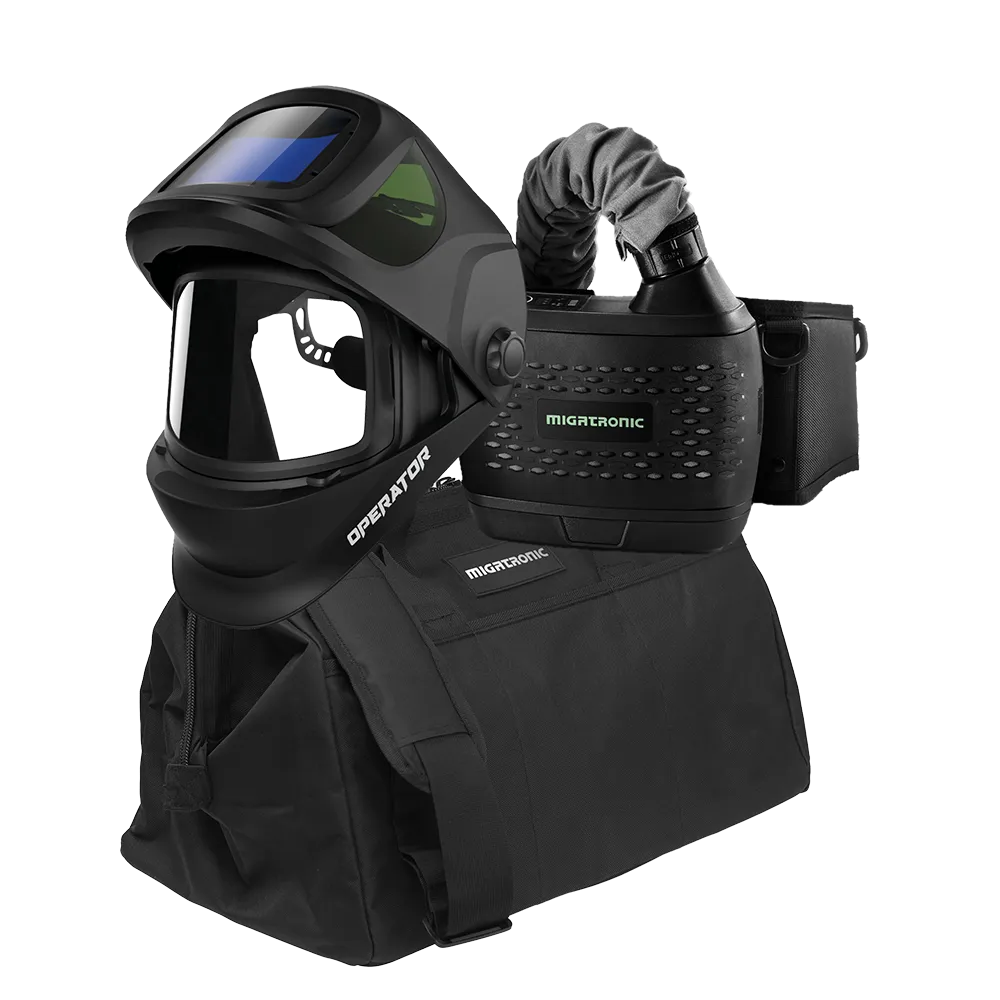

Operator Flip-up with PAPR kit (Midnight Black)

Product Details

Weight: 3.00 kg

All-in-one air-fed welding solution with Operator Flip-up helmet and powered respirator. Designed for maximum protection, comfort, and freedom of movement in demanding welding environments. Ideal for professionals who prioritise clean air and uninterrupted focus.

Includes bag with Operator Flip-up Air-fed helmet (Midnight Black) and Operator Flip-up Powered Air Purifying Respirator (PAPR) unit. Engineered to meet the needs of professional welders who demand both safety and performance.

The Operator Flip-Up helmet combines high-spec optical clarity with exceptional respiratory protection and ergonomic comfort. This all-in-one solution helps you weld safer, breathe easier, and stay focused longer.

The PAPR unit is equipped with P3 filter and pre-filter, a blower, filtration unit, breathing tube (Quick-Connect), STD battery, shoulder strap and belt. Manual kit with 2 insider and 5 front cover lenses.

Whether you’re dealing with fumes, sparks, or long hours under the hood, this helmet gives you what you need to work confidently and comply with the toughest safety standards.

Key Benefits

Protects welders from harmful fumes and airborne contaminants (TH3P certified)
Reduces eye strain with True Color lens technology and large viewing area
Quick and comfortable switching between welding and grinding
Enhanced comfort through low-profile design and adjustable 5-point headgear
Reliable and efficient: fast-charging battery powers the PAPR for up to 9 hours
Backed by Migatronic’s trusted support network and full accessory range

Features

True Color Auto-Darkening Filter (ADF) with lightning-fast 1/25,000s reaction time
External grind button for seamless mode switching
Side windows for better peripheral vision and safety awareness
Digital interface for intuitive control of welding, cutting, and grinding settings
Magnifying lens support for precision tasks
Lightweight design

Equip your welders with the right tool for safer, more productive work—and peace of mind.

Specification	Value
Optical Class	1/1/1/1
Viewing Area	107 x 75 mm (4.21" x 2.95")
Cartridge Size	156 x 123 x 33 mm (6.14" x 4.84" x 1.30")
Arc Sensor	4
Light State	DIN 3
Grind State	DIN 3
Cutting Shade	Shade No. from 5 to 8
Welding Shade	Shade No. from 9 to 13
Shade Control	Internal, Digital Display Control
Power On / Off	Automatic On / Off
Sensitivity Control	Low ~ High, Digital Display Control
UV/IR Protection	Up to Shade DIN13 at all times
Power Supply	Solar cell. Battery replaceable, 2 x CR2450 lithium battery
Switching Time	1/25,000 s. from Light to Dark at 55 °C (131 °F)
Grinding	Yes
Delay (Dark to Light)	0.1 ~ 1.0 s, Digital Display Control
Low Amperage TIG Rated	≥ 2 amps (DC); ≥ 2 amps (AC)
Operating Temp.	-5 °C ~ +55 °C (23 °F ~ 131 °F)
Storing Temp.	-20 °C ~ +70 °C (-4 °F ~ 158 °F)
Helmet Material	High Impact Resistance Nylon
Total Weight (Helmet, Hose, PAPR (with belt and battery)	1950 g
Application Range	Stick Welding (SMAW); TIG DC&AC; TIG Pulse DC; TIG Pulse AC; MIG/MAG/CO2; MIG/MAG Pulse; Plasma Arc Cutting (PAC); Plasma Arc Welding (PAW); Air Carbon Arc Cutting (CAC-A); Oxyfuel Gas Welding (OFW); Oxygen Cutting (OC); Grinding
Approved	CE, EN ISO 16321-1 :2022, EN ISO 16321-2:2021, EN 175, EN 166 ANSI Z87.l, Z94.3, AS/NZS 1338.l

Article number	Type	Product Name	Replacement interval
82901401	Spare Parts	Front lens frame (Midnight Black)
82901101	Spare Parts	Front cover lens	Once a week. Replace anytime the lens becomes deeply pitted, scratched or too dirty to clean with soft cloth or lens paper.
82901102	Spare Parts	Front cover lens HD (5 pcs)
82901103	Spare Parts	Front cover lens anti-scratch (5 pcs)
82901535	Spare Parts	Shell with air duct for Operator Flip-up (air-fed) (Midnight Black)
82901305	Spare Parts	Auto-darkening filter for Operator Flip-up helmet
