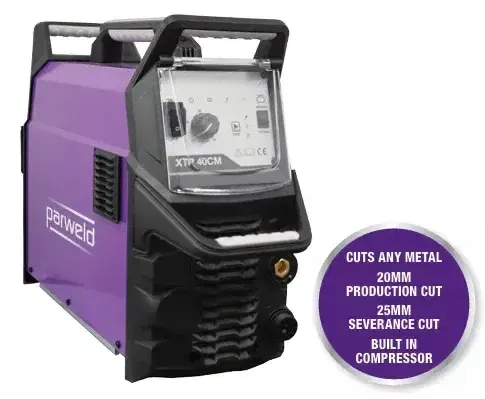

Parweld XTP40CM with Built in Compressor

XTP 40CM Plasma Cutter with Built-In Compressor 110/230V

Portable Metal Cutting Machine

Compact & Powerful Plasma Cutter for Cutting Any Metal

The XTP 40CM Plasma Cutter is a versatile, portable cutting solution designed for professionals and workshops. Featuring a built-in air compressor, this 110/230V single-phase plasma cutter allows you to clean cut any metal up to 20mm thickness without needing an external air supply.

Ideal for fabrication, automotive work, and site use, the XTP 40CM combines power, portability, and precision in one compact machine.

Key Features of the XTP 40CM Plasma Cutter

• 110/230V, Single-Phase Power – Plug-and-play convenience
• Integrated Air Compressor – No external compressor required
• 40A Output @ 40% Duty Cycle
• 20mm Production Cut / 25mm Severance Cut Capacity
• Generator-Friendly (±15% Voltage Tolerance)
• CNC Interface Ready for automation
• Non-HF Start – Reduces electronic interference
• Automatic Over-Voltage & Over-Current Protection
• Supplied with XT4000 Plasma Hand Torch (6m) & 3m Earth Cable
• IP21S Rated & RoHS Compliant

Technical Specifications

• Output Current: 10–40A (30A on 110V)
• Input Voltage: 110V / 230V, 1-Phase
• Duty Cycle: 40A @ 40%
• Production Cut Capacity: 20mm
• Severance Cut Capacity: 25mm
• Starting Method: Short Circuit
• Minimum Fuse Rating: 16A (230V)
• Input Current (Eff.): 13.3A
• KVA: 6
• Recommended Generator Size: 6 KVA*
• Protection Class: IP21S
• Dimensions (L x W x H): 640 x 230 x 430 mm
• Weight: 18 kg

*Generator requires AVC

Built-In Compressor for Maximum Portability

The XTP 40CM’s integrated compressor makes it a truly mobile plasma cutting solution. Whether you're working in a workshop or on-site, you can operate the machine without external air—or connect to an external supply when needed.

Variable Output for Clean, Precise Cuts

With adjustable output control, users can fine-tune cutting power to reduce dross and achieve cleaner, more accurate edges across a variety of metals and thicknesses.

Generator-Friendly & Site Ready

Designed to handle ±15% voltage fluctuations, the XTP 40CM works reliably with most generators. Its compact size, carry handles, and built-in storage make it ideal for mobile engineers and contractors.

Machine Packages Available

• XTP40CM – Plasma Cutter with Integrated Compressor & Hand Torch
• XTP40CM-M – Plasma Cutter with Machine Torch (6m) Not Included (Extra)

Accessories & Spare Parts

• Torch Package Hand Held (6m, Central Connector)
• Machine Torch Package (6m, Central Connector) Not Included (Extra)
• 3m Earth Cable Clamp Kit
• Plasma Spares Kit (Plastic Box)

Why Choose the XTP 40CM Plasma Cutter?

• Compact plasma cutter with built-in compressor
• Perfect for portable and on-site metal cutting
• Compatible with generators and standard 230V power
• Delivers clean, accurate cuts up to 20mm
