Parweld XTP40CNC

XTP 40CNC Plasma Cutter | CNC Ready 110/230V Portable Plasma Cutting Machine

Precision CNC Plasma Cutter for Automated & Manual Metal Cutting

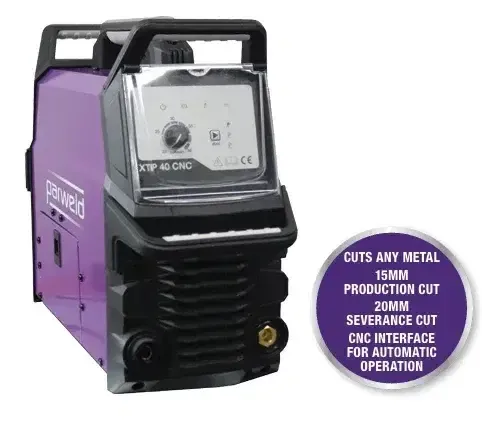

The XTP 40CNC Plasma Cutter is a compact, high-performance cutting solution designed for both manual and CNC-controlled applications. With a built-in CNC interface, this 110v/230V plasma cutter is ideal for workshops, fabrication, and automated profiling systems.

Capable of cutting up to 15mm production thickness and 20mm severance, the XTP 40CNC delivers accurate, clean cuts across a wide range of metals, including mild steel.

Key Features of the XTP 40CNC Plasma Cutter

• 110V / 230V, Single-Phase Input – Flexible power options
• 40A Output @ 40% Duty Cycle
• CNC Interface Ready – Seamless integration with CNC profiling machines
• 15mm Production Cut / 20mm Severance Cut (mild steel)
• Generator-Friendly (±15% Voltage Tolerance)
• Built-In Air Pressure Regulator & Gauge for precise control
• Non-HF Start (Short Circuit) – Minimises electronic interference
• Automatic Over-Voltage & Over-Current Protection
• Supplied with XT4000 Plasma Torch (6m) & 3m Earth Cable
• IP21S Rated & RoHS Compliant

Technical Specifications

• Output Current: 10–40A (30A on 110V)
• Input Voltage: 110V / 230V, 1-Phase
• Duty Cycle: 40A @ 40%
• Production Cut Capacity: 15mm (Mild Steel)
• Severance Cut Capacity: 20mm (Mild Steel)
• Starting Method: Short Circuit
• Minimum Fuse Rating: 16A (230V)
• Input Current (Eff.): 13.3A
• KVA: 6
• Recommended Generator Size: 15 KVA*
• Protection Class: IP21S
• Dimensions (L x W x H): 570 x 210 x 400 mm
• Weight: 12.8 kg

*Generator requires AVC

CNC-Ready for Automated Cutting

The XTP 40CNC is purpose-built for CNC plasma cutting systems, allowing seamless integration with profiling machines. Its stable arc performance and precision control make it ideal for repetitive, high-accuracy cutting tasks.

Portable & Workshop-Friendly Design

Designed with grab handles, built-in torch storage, and consumables storage, this machine is easy to transport and organise. Its compact size makes it perfect for both workshop benches and mobile use.

Variable Output for Clean Cutting Performance

With adjustable output control, the XTP 40CNC ensures minimal dross and smooth cut edges, improving efficiency and reducing post-processing time.

Machine Packages Available

• XTP40CNC – Plasma Cutter with Hand Torch
• XTP40CNC-M – Plasma Cutter with 6m Machine Torch

Accessories & Spare Parts

• Hand Torch Package (6m, Central Connector)

• 3m Earth Cable Clamp Kit
• Plasma Spares Kit

Why Choose the XTP 40CNC Plasma Cutter?

• Fully CNC-ready plasma cutting machine
• Compact and portable for workshop or site use
• Excellent for precision metal fabrication
• Compatible with generators and dual voltage input
