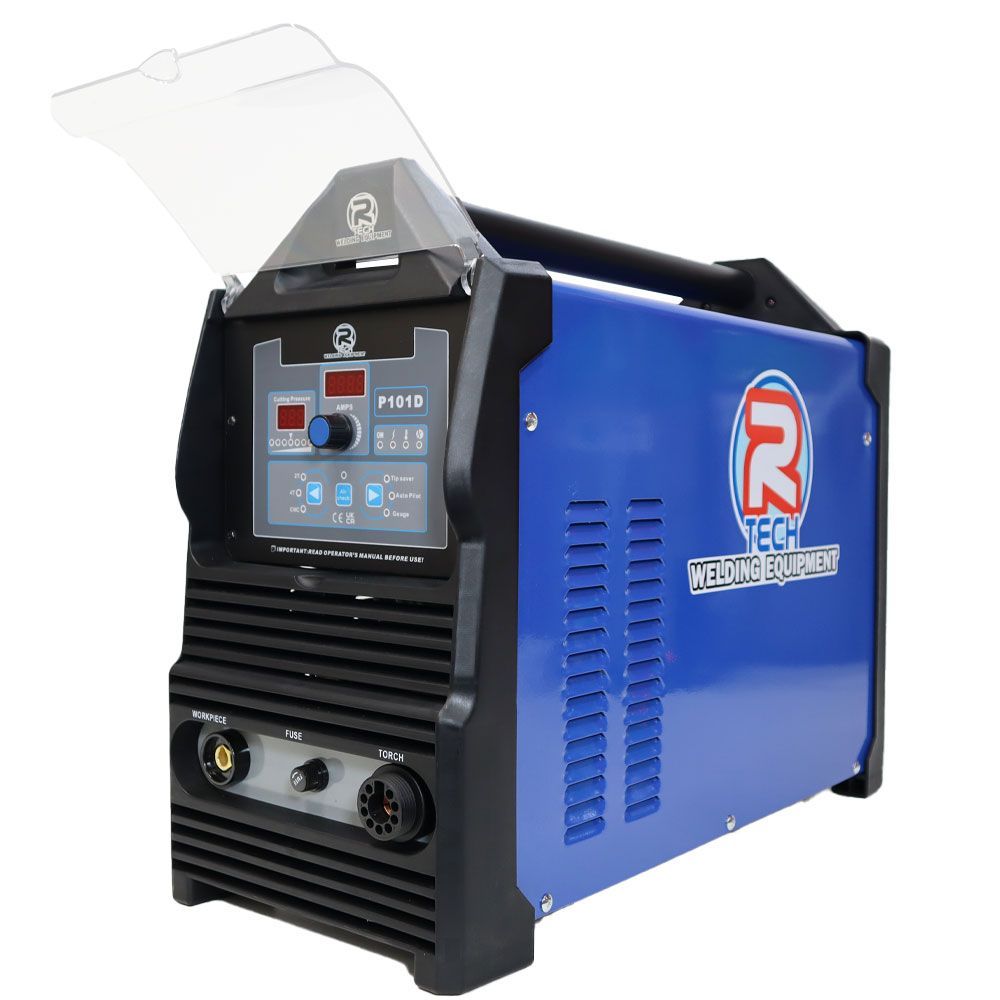

R-Tech 100amp P101D CNC Plasma Cutter & Machine Torch

R-Tech 100amp P101D CNC Plasma Cutter & Machine Torch

R-Tech P100 CNC ACCESSORIES & CONSUMABLES

R-Tech P101D plasma cutter 3 Phase 415v 32amp plug (5yr manufacturers Warranty)

also includes UPM125 Machine Torch and ptm100 handtorch (3mth manufacturers Warranty).

CNC connection Kit

50-1 Voltage divider & SP industrial Connector

Xtreme Engineering & R-tech Welding do not supply a fitted plug please use a Qualified Electrician for installation

Torch supplied with 100amp Consumables

The P101D was introduced to the market for longer duty cycles @ 45amps

Tech tables included with machine are the same as P50cnc,12mm steel cutting.

Recommended Daily Maximum Average Cut Thickness (CNC) 15mm steel

20mm Steel pierce*

*You will have to have gained knowlege of plasma cutting to achieve these results.

Compressed air information about the P101D ,PM125/UPM125 torch ,uses 630 scfh (295 lpm)

x1.5 requires 15.61 cfm

weight 32kg

THC cable supplied wires

1&2 trigger,

50-1 divider 3 positive, yellow/green negative

Machine manual
