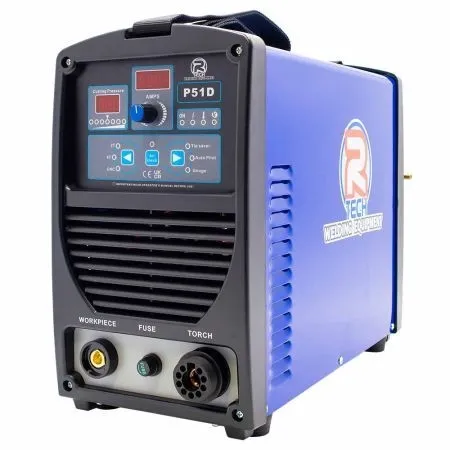

R-Tech P51D Digital CNC Plasma Cutter (240v) ipt-60 Hand & upm105 Machine Torch

• Built with class leading Siemens IGBT's - Not inferior Mosfets
• NO-HF Pilot arc for easy starting even on painted surfaces and pilot re-start - ideal for cutting mesh etc.
• 20mm genuine clean cut on mild steel, 24mm Severance cut on mild steel
• 13mm genuine clean cut on alloy and stainless steel
• 50amp cutting power at a high duty cycle of 60%
• Digital display for amps - Ideal if you need your equipment calibrating for ISO requirements
• Air pressure sensor - Enables clear setting for best quality of cut.
• Torch consumables safety warning indicator - stops operation if problem detected.
• Comes as a complete kit all you need is a supply of compressed air and a 240V 32Amp supply
• 5 year collect and return UK warranty
• Quick Fit Euro Torch with long life consumables
• Package Includes, R-Tech P51D plasma cutter, 6m IPT-60 plasma cutter torch, earth lead, 5 replacement cutting tips, 5 replacement electrodes, mains cable, air pressure regulator and PCL fitting, owners manual

Machine Manual

additional info

Maximum Supplied Air Pressure 90 psi (This is incoming pressure from the air compressor, not operating, or (From Com-

pressor/Tank) cutting pressure.) The air compressor MUST have a separate pressure regu-

lator at the tank or inline to control maximum supply pressure.

Recommended Maximum Daily Average Cut Thickness

(Steel, Hand Cut)

1/2” (12mm) Decrease 35-40% for Aluminum and Stainless (INOX).

Recommended Maximum Daily Average Cut Thickness

(Steel, CNC, Auto-Cutting Mechanisms)

1/4” (6mm) Note: CNC operation has limiting factors that reduces operation Average Cut

Thickness capability. This includes duty cycle, inability to manipulate torch for piercing

duties, cut speed requirements/expectations.

Rated Maximum Quality Cut @ 10-12 IPM (@ 250-300mm / min)

(Steel, Hand Cut)

3/4” (19mm) Decrease 35-40% for Aluminum and Stainless (INOX).

Max Severance Cut @ 3 IPM (75mm / min) (Steel, Hand Cut ) 1” (25mm) Decrease 35-40% for Aluminum and Stainless Steel (INOX).

Gouging Limit (approximate gouge depth/width) 1/8”x 3/16” (3mm x 4.8mm)
