Home/Store/HoleMaker Technology (HMT)
Steelbor S36 Magnet Drill
+6
+5
+4
+3
+2

Steelbor S36 Magnet Drill

SKU 850236-230
£359.00
Pre-order
was £595.20 Save £236.20
4 payments of £89.75 with
1
Tax's & Shipping Costs Calculated at Checkout
Share this product with your friends
ShareSharePin it

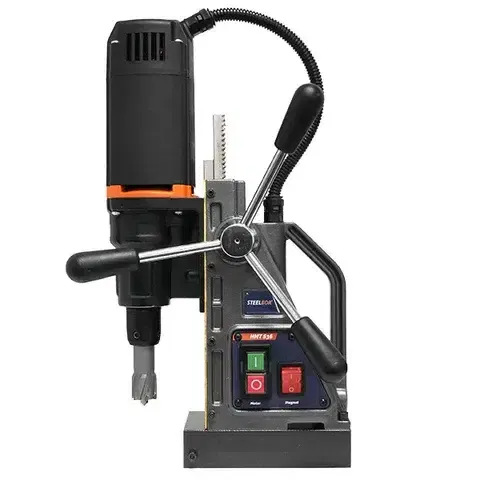

Steelbor S36 Magnet Drill
Product Details
Weight: 10.00 kg

S36 Compact Mag Drill 230v Kit


The S36 delivers deeper cuts, faster job turnaround, and site-ready durability — all in a compact, portable form.

Built to outperform other compact drills, the S36 combines a 110mm cutting depth with a highpower Eibenstock motor. Designed for structural steel and access-critical jobs, it pairs perfectly with Versadrive tooling and standard broach cutters for fast, flexible holemaking.

  • S36 mag drill features 110mm cutting depth for deep broaching & countersinking
  • Drills up to 36mm diameter in structural steel
  • High-performance motor delivers smooth, fast cutting
  • Lightweight for easier transport and access work
  • Weldon shank compatible for full cutter flexibility
  • Drill & countersink using Versadrive quick-change tools
  • Supplied in protective site case
  • Available in 110v & 230v versions

Technical Specification

MAX TCT CUTTER CAPACITY 36mm
MAX HSS CUTTER CAPACITY 32mm
MAX CUTTER LENGTH 110mm
TWIST DRILL CAPACITY 13mm
MAX TAP CAPACITY N/A
MAX COUNTERSINKING 25mm
LENGTH 259mm
WIDTH (Inc Handles) 156mm
HEIGHT (Min-Max) (exc. cable gland) 348-495mm
STROKE 147mm
WEIGHT 10kg
MAGNET (L X W) 160 x 80mm
MAGNETIC ADHESION 1015kgs
MOTOR POWER 1050w
SPEED RPM (No Load) 800min-1
SPINDLE 3/4" Weldon
ARBOR Integral ¾" Weldon
COOLANT SYSTEM Optional Extra
WARRANTY 2 Year (When registered)

*Supplied with metal safety guard, restraint strap and handles
