Home/Store/Welding Machines & Consumables/TIG Welders & Supplies/SIP TIG Welders

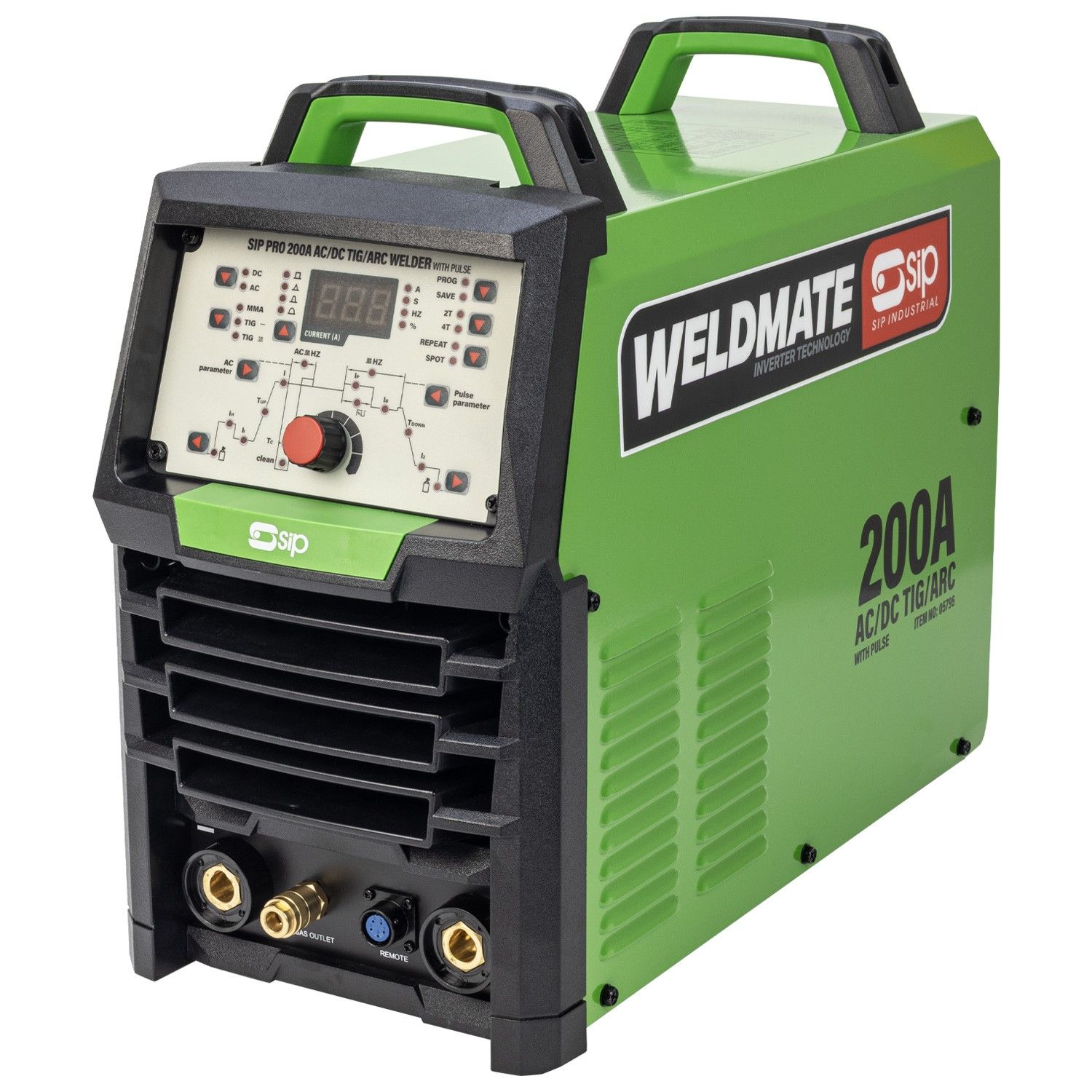

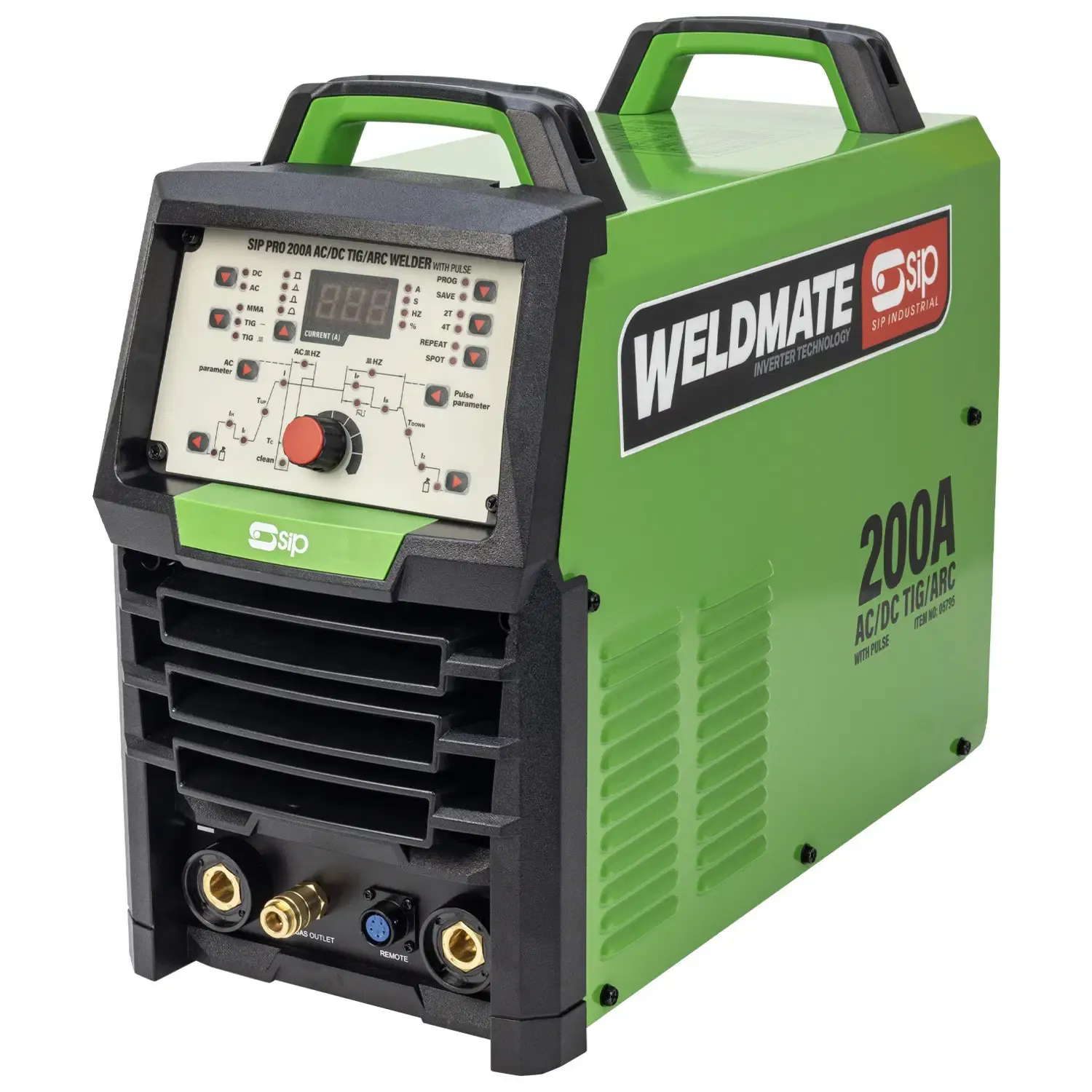

SIP PRO 200A AC/DC TIG/ARC Welder with Pulse
+6
+5
+4
+3
+2

SIP PRO 200A AC/DC TIG/ARC Welder with Pulse

SKU 05795
Foot Pedal 05727
Please choose
£949.99
Online Only
In stock: 1 available
1
Tax's & Shipping Costs Calculated at Checkout
Share this product with your friends
ShareSharePin it
SIP PRO 200A AC/DC TIG/ARC Welder with Pulse
Product Details
Weight: 18.00 kg

SIP PRO 200A AC/DC TIG/ARC Welder with Pulse

The SIP WELDMATE® PRO 200A AC/DC TIG/ARC Welder with Pulse is a dual process welder with AC/DC TIG capability for professional applications. This powerful inverter welder can be used for both TIG and ARC welding processes for outstanding versatility in demanding environments.

Featuring TIG Pulse functionality, a multi-stage pulse parameter program and 4 AC waveforms, the adaptable settings and high duty cycles are designed to meet specific user needs and ensure greater control of precision welds.

KEY FEATURES

  • AC/DC welding for greater versatility in professional applications
  • Dual TIG and ARC processes for flexibility at high duty cycles
  • TIG Pulse facility for a smoother and more controlled weld
  • Multi-stage pulse parameter adjustment for greater welding arc control
  • 4 AC waveforms for superior welding control with different material types
  • Suitable for aluminium, stainless steel, mild steels, brass and copper

Technical Information

ITEM NO. 05795
Input Supply: 230v (16A) (not supplied)
Output Current (TIG AC/DC): 5A - 200A (AC) / 5A - 200A (DC)
Output Current (MMA DC): 30A - 160A (DC)
TIG AC/DC
Duty Cycle @ 40°C / 10min 200A @ 25% / 150A @ 60% / 120A @ 100% (TIG AC/DC)
160A @ 25% / 110A @ 60% / 90A @ 100% (MMA)
Duty Cycle @ 20°C / 10min 200A @ 60% / 150A @ 100% (TIG AC/DC)
160A @ 60% / 130A @ 100% (MMA)
Protection: IP21S/H
Net Weight: 15.90kg
Gross Weight: 17.50kg
Product Dimensions: 395(H) x 480(W) x 225mm(D)
Packaged Dimensions: 440(H) x 560(W) x 330mm(D)
ITEM NO. 05727
Cable Length: 4.8mtr
Net Weight: 2.30kg
Gross Weight: 2.70kg
Product Dimensions: 158(H) x 280(W) x 138mm(D)
Packaged Dimensions: 208(H) x 343(W) x 150mm(D)
