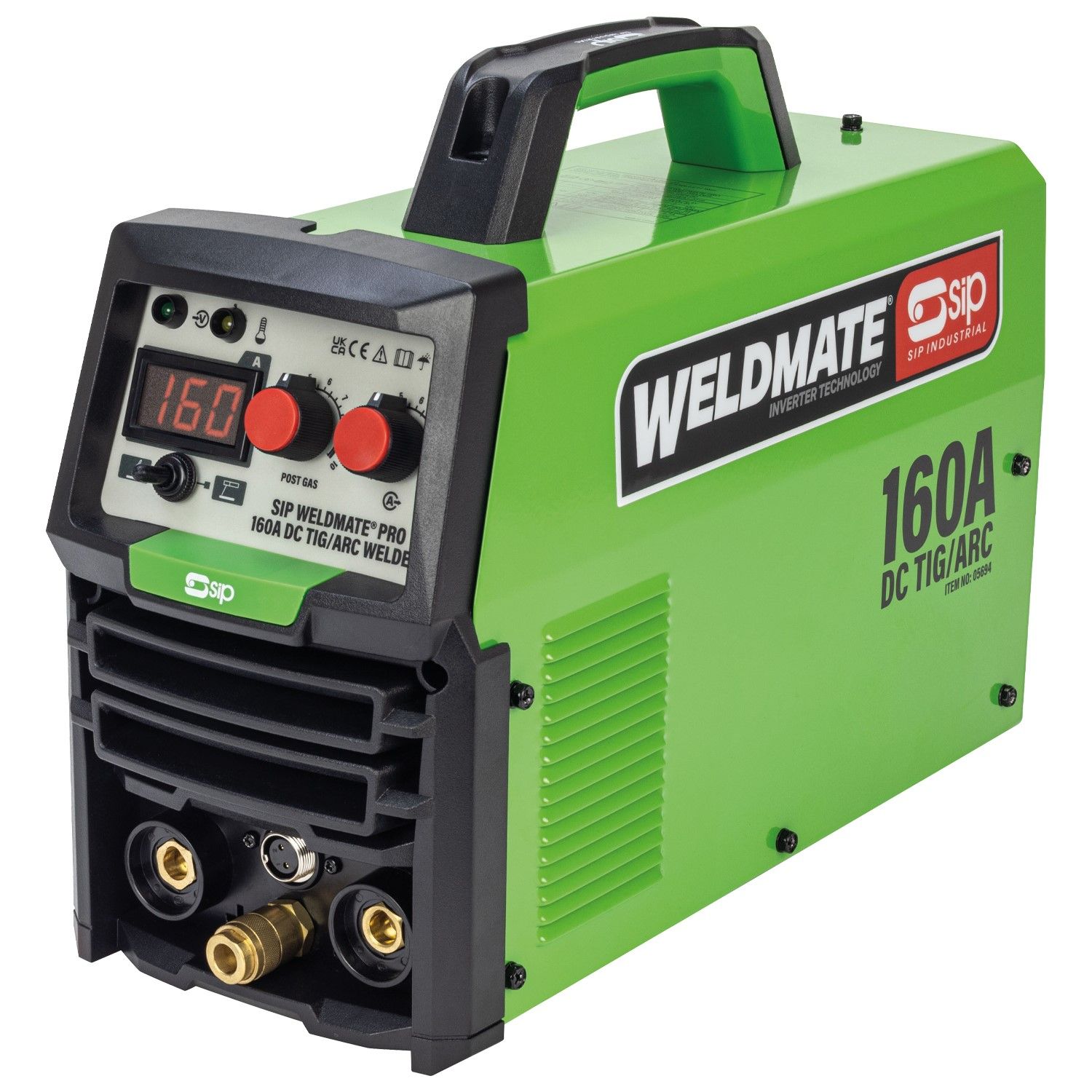

The SIP WELDMATE® PRO 160A DC TIG/ARC Inverter Welder is a dual process inverter welder specifically designed for use in professional fabrication workshops, sheet metal applications and home workshops.
Powerful, compact and lightweight, this inverter welder also features high frequency start-up for easy arc striking, which helps to achieve cleaner and higher quality welds by avoiding electrode contact with the workpiece when initiating the arc.
Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.
KEY FEATURES
ITEM NO. | 05694 | |
Input Supply: | 230v (16A) | |
Welding Process: | TIG | MMA |
Output Current: | 10A - 160A | 10A - 140A |
Output Voltage: | 10.4v - 14.8v: 70v DC Open Circuit Volts | 20.4v - 24v: 70v DC Open Circuit Volts |
Duty Cycle @ 20°C: | 160A @ 30% | 160A @ 30% |
Welding Material Thickness: | 0.5mm - 6mm (mild steel) | 1.5mm - 7mm (mild steel) |
Protection / Insulation | F | |
Net Weight: | 7.2kg | |
Gross Weight: | 8.9kg | |
Product Dimensions: | 310(H) x 150(W) x 370mm(D) | |
Packaged Dimensions: | 270(H) x 295(W) x 440mm(D) |
