SIP WELDMATE® PRO 200A DC TIG/ARC Inverter Welder
Product Details
Weight: 10.00 kg

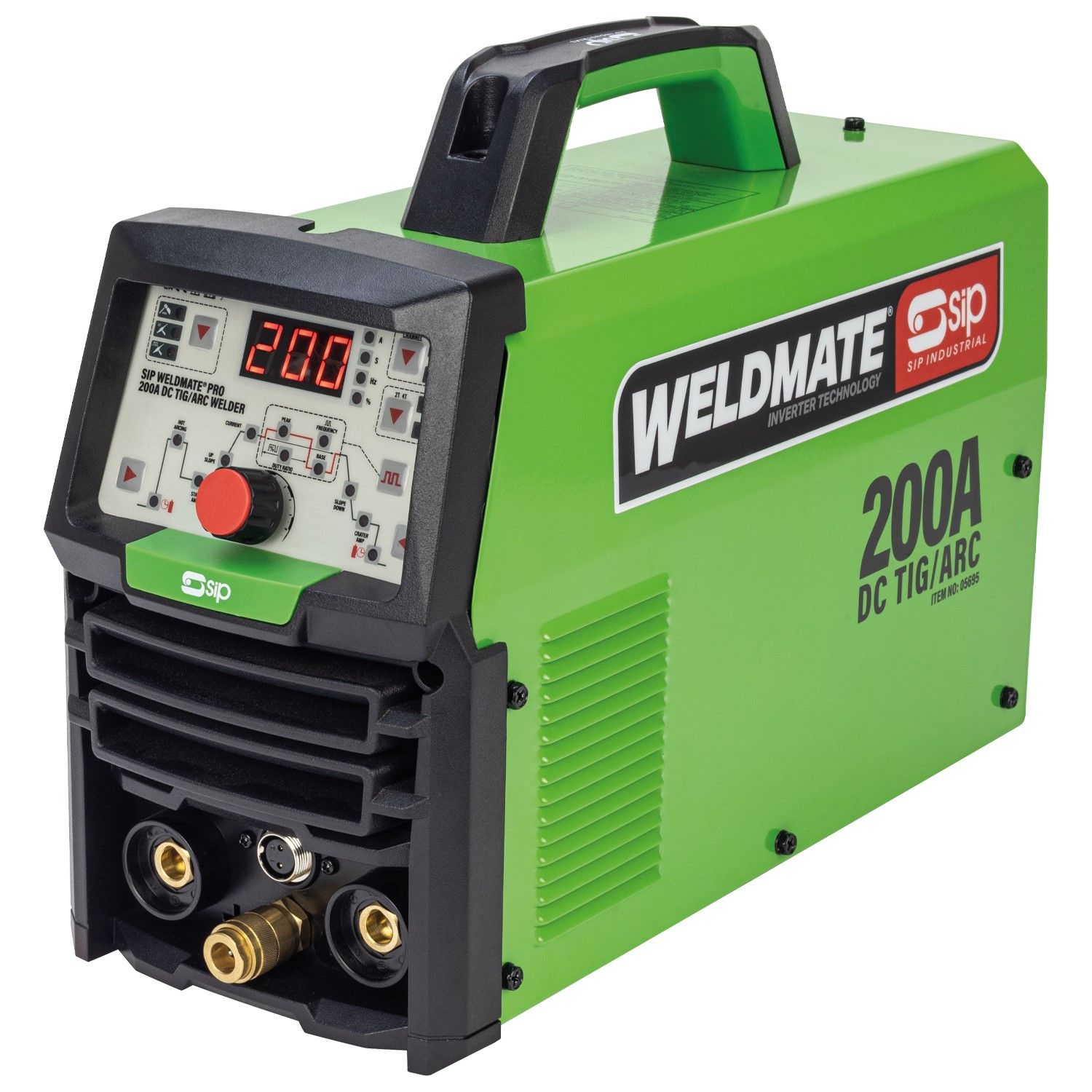

SIP WELDMATE® PRO 200A DC TIG/ARC Inverter Welder

The SIP WELDMATE® PRO 200A DC TIG/ARC Inverter Welder is a dual process inverter welder specifically designed for use in professional fabrication workshops and sheet metal applications.

Powerful, compact and lightweight, this inverter welder also features and 8-stage TIG welding sequence with parameters for 'Pre' and 'Post Gas' to ensure a clean and high-quality weld, while Pulse TIG parameters offer even greater welding power and arc control for skilled professional applications.

Fully compliant wth Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

KEY FEATURES

  • Dual process TIG/ARC DC welder for greater versatility at high duty cycles
  • Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)
  • Features an adjustable 8-stage TIG welding sequence with Pulse TIG parameters
  • Pre/post gas setting to prevent oxidation for a clean and higher quality weld
  • Infinitely variable dial with LED display offer smoother output adjustment
  • Compact and lightweight design for easy work area movement

Technical Information

ITEM NO. 05695
Input Supply: 230v (16A)
Welding Process: TIG MMA
Output Current: 10A - 200A 10A - 160A
Output Voltage: 10.4v - 18v: 70v DC Open Circuit Volts 20.4v - 26.4v: 70v DC Open Circuit Volts
Duty Cycle @ 20°C: 200A @ 30% 200A @ 30%
Welding Material Thickness: 0.5mm - 7mm (mild steel) 1.5mm - 8mm (mild steel)
Protection / Insulation F
Net Weight: 7.8kg
Gross Weight: 9.3kg
Product Dimensions: 270(H) x 145(W) x 370mm(D)
Packaged Dimensions: 300(H) x 310(W) x 405mm(D)
