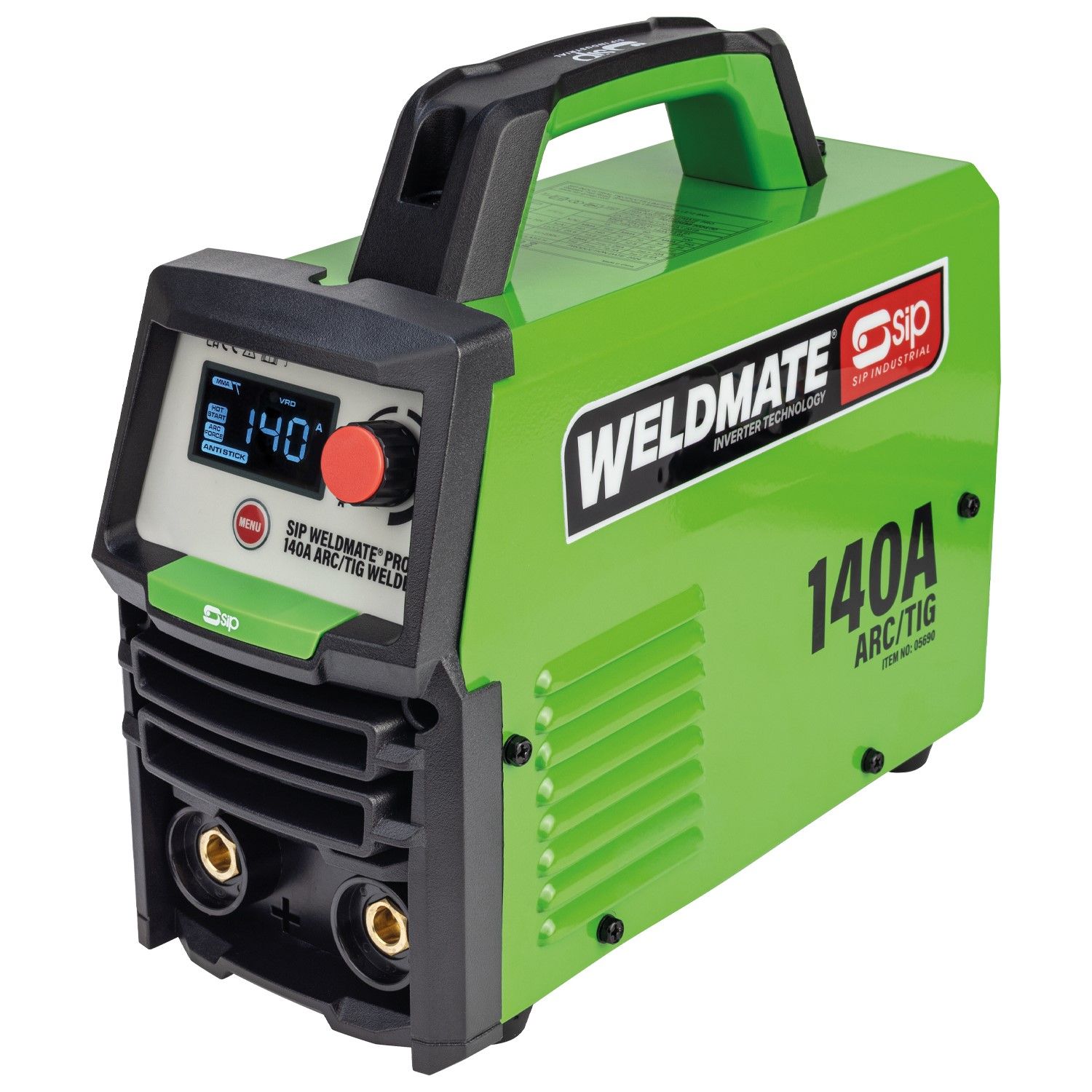

The SIP WELDMATE® PRO 140A ARC/TIG Inverter Welder is a dual process inverter welder specifically designed for use in professional fabrication workshops.
Featuring Synergic Control which adjusts the welding current output according to the electrode diameter selected for optimal penetration and bead formation. Powerful, compact and lightweight, this welder also operates from a 230v (13A) supply for added flexibility.
Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.
KEY FEATURES
ITEM NO. | 05690 | |
Input Supply: | 230v (13A) | |
Welding Process: | ARC | TIG |
Output Current: | 10A - 140A | 10A - 140A |
Output Voltage: | 20.4v - 25.6v | 10.4v - 15.6v |
Duty Cycle @ 20°C: | 140A @ 30% | 140A @ 30% |
Welding Material Thickness: | 1.6mm - 7mm (mild steel) | |
Protection / Insulation | F | |
Net Weight: | 4.4kg | |
Gross Weight: | 5.3kg | |
Product Dimensions: | 235(H) x 120(W) x 270mm(D) | |
Packaged Dimensions: | 275(H) x 215(W) x 385mm(D) |
