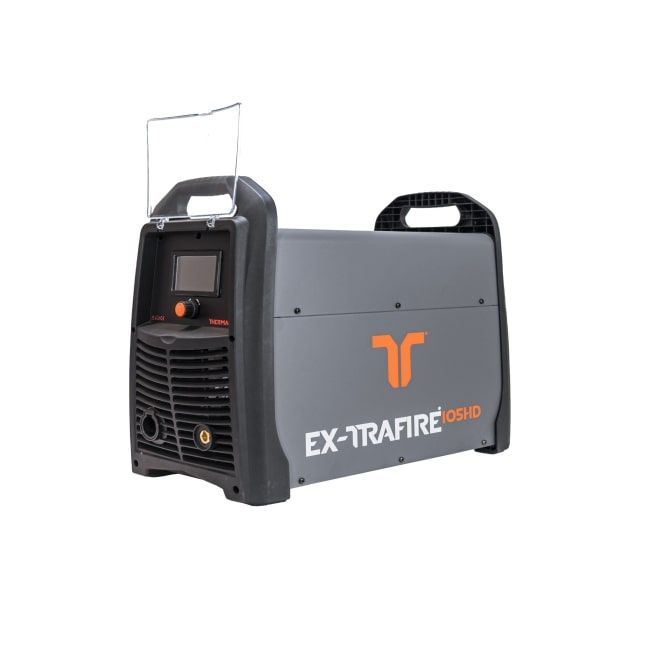

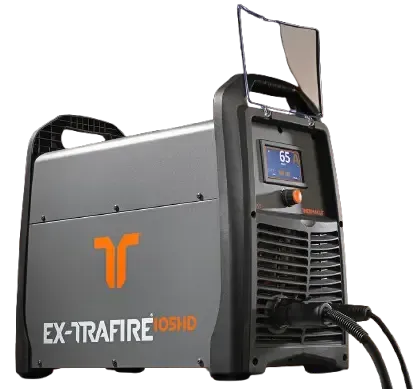

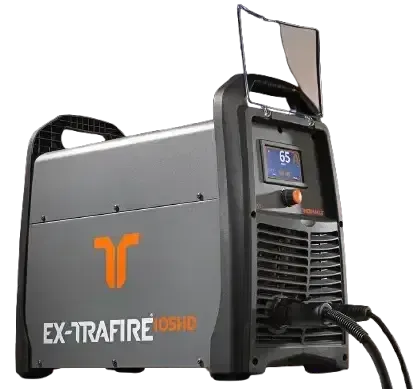

Thermacut EX-TRAFIRE 105HD Plasma Cutter 20-105A UK

It is suitable for demanding workshop cutting, mechanised cutting, CNC plasma cutting, grid cutting, gouging, and marking, making it a strong choice for fabrication, repair work, industrial cutting, and heavy-duty metalwork.

What is the Thermacut EX-TRAFIRE 105HD Used for?

The Thermacut EX-TRAFIRE 105HD is used for cutting thicker metal quickly and precisely.

It gives a powerful plasma cut without needing a saw, grinder, or oxy-fuel setup.

Common uses include:

• Cutting mild steel

• Cutting stainless steel

• Cutting aluminium

• Workshop fabrication

• CNC plasma cutting

• Manual hand cutting

• Mechanised cutting

• Grid cutting

• Gouging

• Marking

• Cutting brackets, plates, panels, frames, and repair parts

• Heavy-duty industrial cutting jobs

What’s Included?

Here’s what you get with the Thermacut EX-TRAFIRE 105HD:

• Thermacut EX-TRAFIRE 105HD plasma cutting system

• FHT-EX 105TT plasma torch

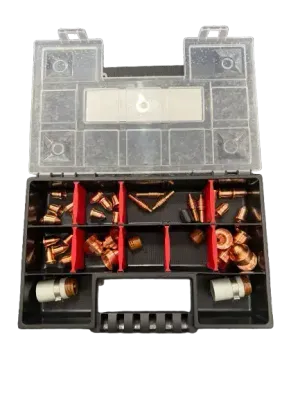

• Starter kit

• 8m machine torch: FHT-EX 105TTM (optional extra)

• 15m machine torch: FHT-EX 105TTM (optional extra)

Technical Specifications

Here are the main details for the Thermacut EX-TRAFIRE 105HD:

• Cutting current: 20 to 105A

• Modes: Cutting / grid cutting / gouging / marking

• Duty cycle at 40°C: 100% at 105A

• Recommended cutting capacity: 20mm

• Piercing cutting capacity: 20mm

• Severance cutting capacity: 50mm+

• Gouging removal: 9kg/h+

• Rated output voltage: 180V DC

• Plasma gas: Compressed air / nitrogen / argon for marking

• Air flow: 205 l/min at 5 bar

• Maximum input pressure: 10 bar / 145 psi

• Input voltage: 3 x 400V AC ± 15%

• Frequency: 50/60Hz

• CAN interface: Optional

• Preadjusted voltage divider ratio: 50:1

• Protection level: IP23S

• Insulation class: F

• Dimensions: 613 x 515 x 302mm

• Weight: 35.4kg



Safety Note

Plasma cutting creates heat, sparks, bright light, fumes, and hot metal.

Always wear suitable eye protection, gloves, protective clothing, and use the machine in a well-ventilated area.

Without safety gear, issues like arc eye may occur.

It’s always a good idea to read the user manual before using the machine.

FAQ

Can the Thermacut EX-TRAFIRE 105HD be used on a CNC plasma table?

Yes.

The EX-TRAFIRE 105HD can be used for mechanised cutting such as a CNC plasma table.

Check the exact package before ordering if you need it for CNC use.

What air supply does the Thermacut EX-TRAFIRE 105HD need?

IIt needs a suitable compressed air supply.

Can the Thermacut EX-TRAFIRE 105HD cut aluminium?

Yes.

It can cut aluminium, stainless steel, mild steel, and other electrically conductive metals.

Can the Thermacut EX-TRAFIRE 105HD be used for gouging?

Yes.

It has a gouging mode as well as cutting, grid cutting, and marking modes.

What torch options are available?

Videos

More Information

The EX-TRAFIRE 105HD fact sheetfact sheet can be found here.

For more information, get in touch with us here at Xtreme Plasma.
