Hypertherm PowerMax45 XP Plasma Cutter & Consumables

PowerMax45 XP Plasma Cutter Overview

The Hypertherm PowerMax45® XP is a leading plasma cutter offering unmatched efficiency and performance. Designed for both professionals and hobbyists, it provides a cutting capacity of up to 16 mm (5/8″) with fast cut speeds and automatic gas adjustment for effortless setup and operation.

Hypertherm PowerMax45 XP: Easy to Use

• Compact and lightweight design ensures excellent portability.
• Patented drag-cutting technology simplifies use for beginners.
• Smart Sense™ technology automatically adjusts air pressure for optimal performance.

Hypertherm PowerMax45 XP: Outstanding Versatility

• CNC interface and FastConnect™ torch connection for handheld and mechanized cutting.
• Wide range of torch and consumable options for diverse applications.
• Specialty consumables for fine feature cutting, extended reach, gouging, and marking.

Hypertherm PowerMax45 XP: Maximum Productivity

• 1.5x faster cut speeds than oxyfuel on 6 mm (1/4") mild steel.
• Superior cut and gouge quality minimizes grinding and edge preparation time.
• New torch disable switch allows for quick consumable changes.

Hypertherm PowerMax45 XP: Rugged and Reliable

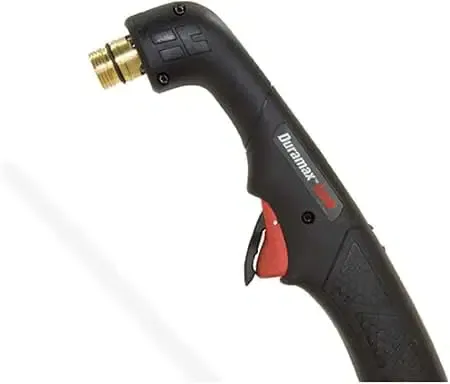

• Duramax® Lock torches designed for impact and heat resistance.
• SpringStart™ technology for consistent starts and optimal performance.
• Hypertherm Certified™ reliability for demanding environments.

Hypertherm PowerMax45 XP: Environmental Impact

• 11% more efficient than previous models for reduced power consumption.
• Fully recyclable plasma system components.
• 14% lighter with increased cutting power.

Hypertherm PowerMax45 XP: Technical Specifications

Input Voltages:

• CSA: 200–240 V, 1-PH, 50–60 Hz or 480 V, 3-PH, 50–60 Hz
• CE/CCC: 230 V, 1-PH, 50–60 Hz or 400 V, 3-PH, 50–60 Hz

Output Current: 10–45 A

Rated Output Voltage: 145 VDC

Duty Cycle:

• 50% @ 45 A, 200–240 V, 1-PH
• 100% @ 32 A, 200–240 V, 1-PH

Weight: 14 kg (31 lbs.)

Gas Supply: Air, nitrogen, F5, argon for marking

Hypertherm PowerMax45 XP: Certifications and Warranty

The PowerMax45 XP is CSA certified for use in the Americas and Asia, CE, RCM, GOST-TR, UkrSEPRO, and Serbian AAA certified for Europe and other regions.

Manufacturer's Warranty: 3-year on power supply, 1-year on torch
