SIP WELDMATE® PRO 140A ARC/TIG Inverter Welder
+5
+4
+3
+2

SIP WELDMATE® PRO 140A ARC/TIG Inverter Welder

SKU 05690
£129.99
Online Only
In stock
1
Tax's & Shipping Costs Calculated at Checkout
Share this product with your friends
ShareSharePin it

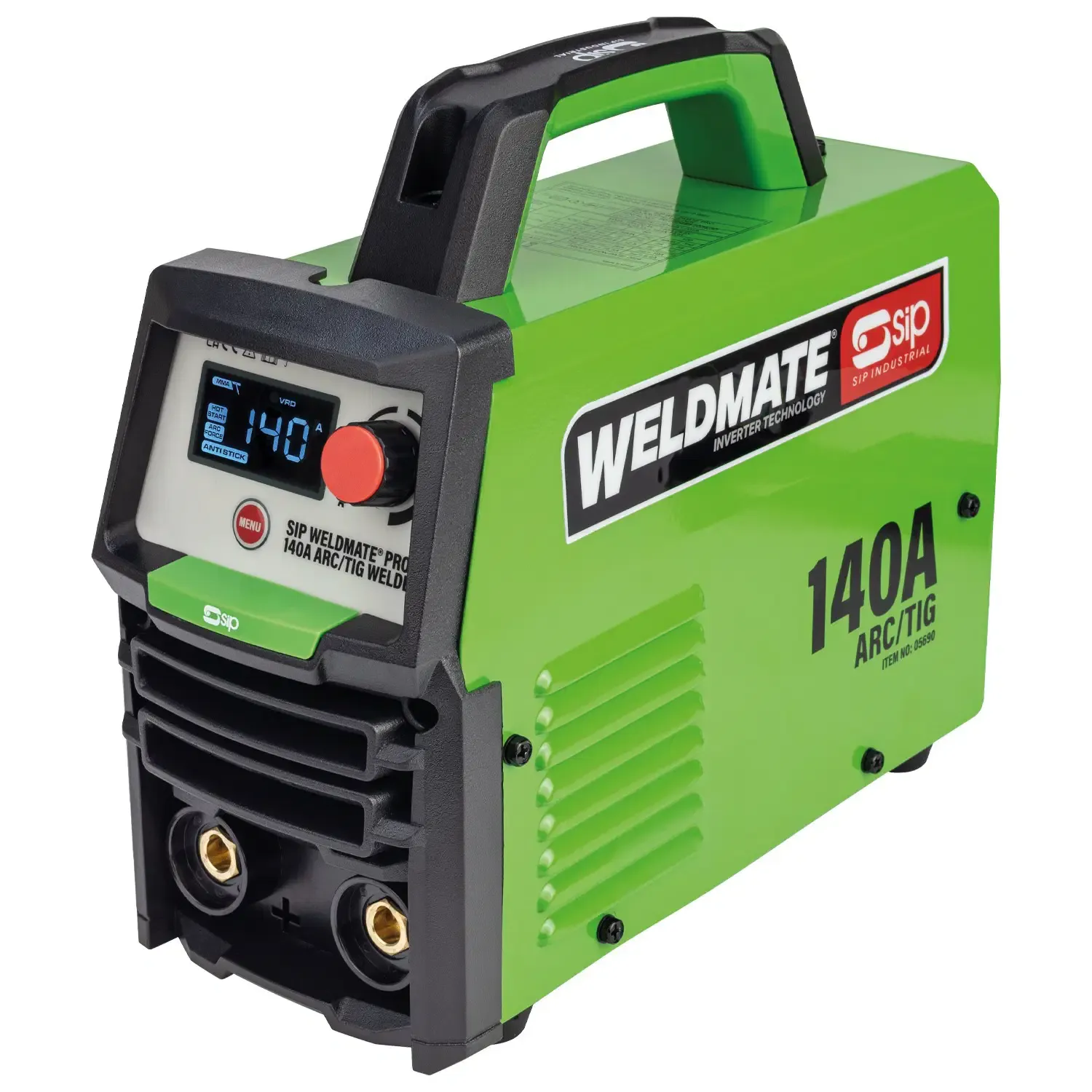

SIP WELDMATE® PRO 140A ARC/TIG Inverter Welder
Product Details
Weight: 6.00 kg

SIP WELDMATE® PRO 140A ARC/TIG Inverter Welder

The SIP WELDMATE® PRO 140A ARC/TIG Inverter Welder is a dual process inverter welder specifically designed for use in professional fabrication workshops.

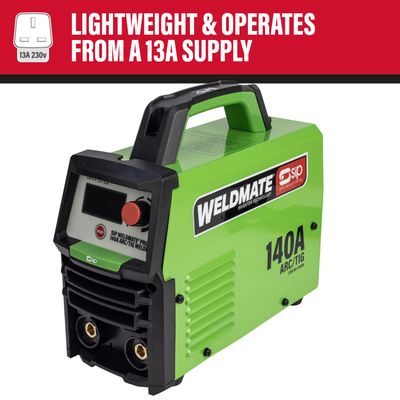

Featuring Synergic Control which adjusts the welding current output according to the electrode diameter selected for optimal penetration and bead formation. Powerful, compact and lightweight, this welder also operates from a 230v (13A) supply for added flexibility.

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

KEY FEATURES

  • Dual process ARC/TIG welder for greater flexibility at high duty cycles
  • Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)

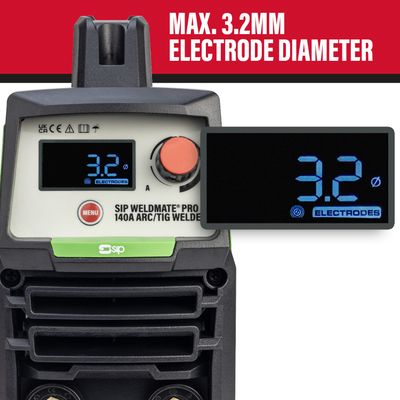

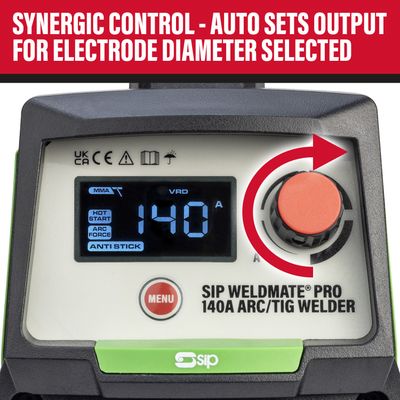

  • Synergic control auto sets welding current output for electrode diameter selected
  • Infinitely variable dial offers a smoother stepless output adjustment
  • Intuitive LCD screen for setting output and selecting welding functions
  • Compact and lightweight design for easy work area movement

Technical Information

ITEM NO. 05690
Input Supply: 230v (13A)
Welding Process: ARC TIG

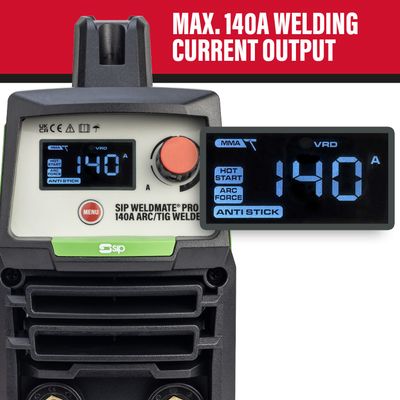

Output Current: 10A - 140A 10A - 140A
Output Voltage: 20.4v - 25.6v 10.4v - 15.6v
Duty Cycle @ 20°C: 140A @ 30% 140A @ 30%
Welding Material Thickness: 1.6mm - 7mm (mild steel)
Protection / Insulation F
Net Weight: 4.4kg
Gross Weight: 5.3kg
Product Dimensions: 235(H) x 120(W) x 270mm(D)
Packaged Dimensions: 275(H) x 215(W) x 385mm(D)
Show More
You May Also Like
Instore & Online
parwerld XTS 163 160amp Arc welder

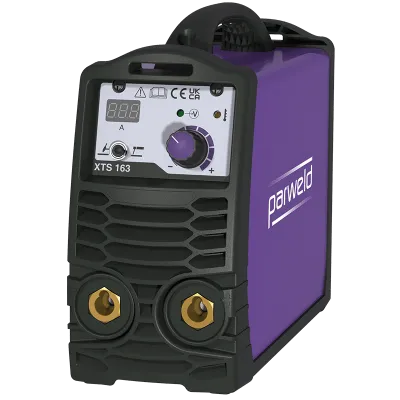

PARWELD XTS 163 160amp Arc welder
