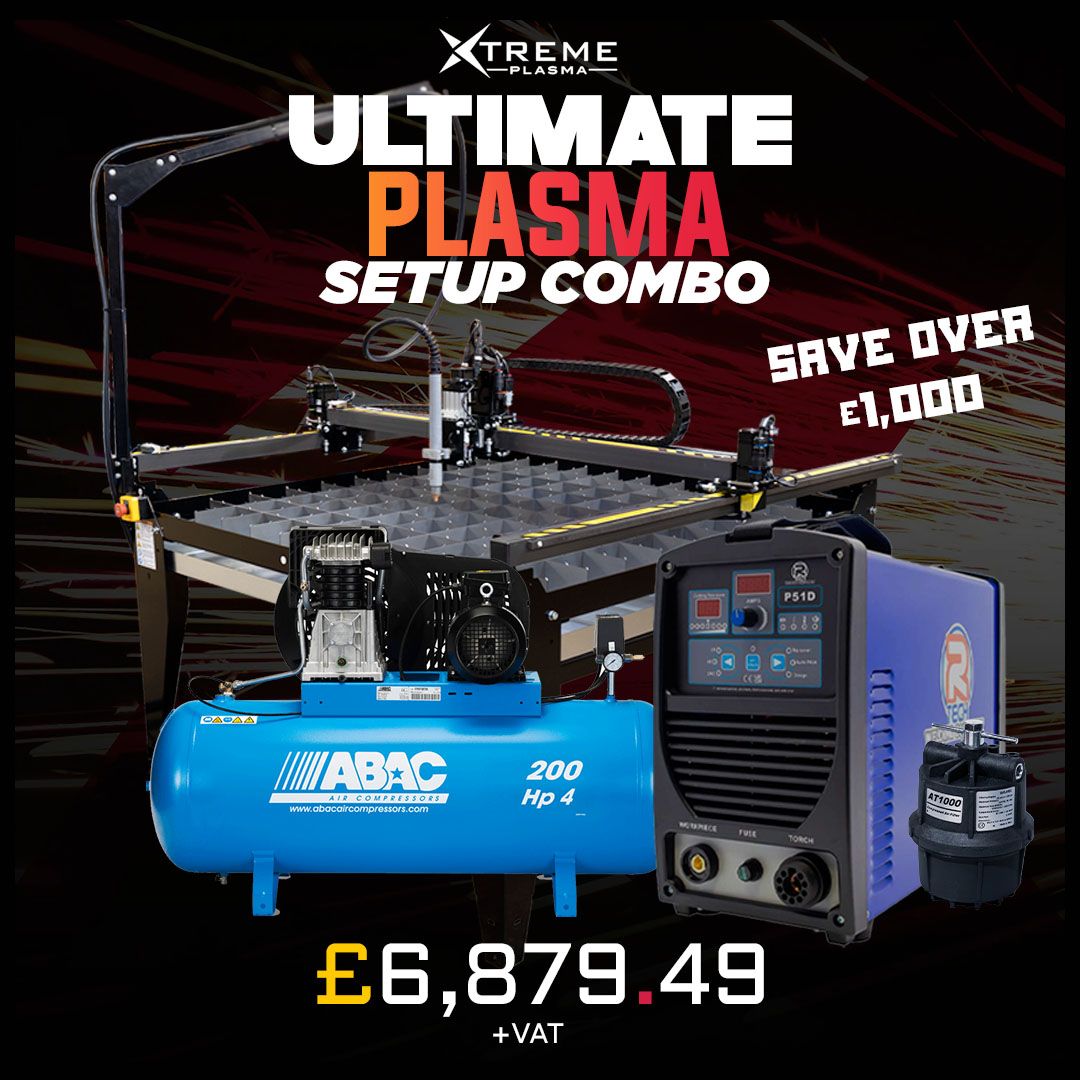

4x4 CNC Plasma Cutting Table Package

• Included in the standard package

• 4x4 plasma cutting table & Software (13amps 240volts)

• R-Tech P51cnc Plasma Cutter & Machine Torch (32amps 240volts)

• Abac Ext A39B 200Litre Air compressor (16amps 240volts)
• Compressed air filter system (filter EX-Air/AT-1000)

Description

The Incredible 4'x 4' CNC Cutting table system produced in the UK from Xtreme Precision Engineering is a computer controlled CNC plasma cutting station

Producing accurate and detailed cut parts for light manufacturing,D.I.Y and creative art uses.

• CNC Plasma cutting is now affordable!

• Manufactured & Built in the UK
• Complete System, Plasma Cutting Table, Desk, Torch height controller, Homing Switch's Custom PC and Software Package - air compressor & plasma Cutter
• Designed for 1250x1250 sheet size(4' x 4'), cutting area 1250 x 1100mm accuracy on cutting +/-1mm
• Easy bolt together steel frame construction, incredibly strong and rigid
• Automatic Advanced torch height controller with auto THC feature
• Replaceable dual sided slats
• Black Computer Desk

• 24" HD LED Display Screen
• Draw on your own favourite Cad system and Import DXF directly into machine
• Scale artwork with simplicity and ease to fit any sheet size.
• We supply all the parts you require for this build and is part assembled, Easy assembly with step by step instructions
• Comes complete with the following software - Intuitive software for any level of user

• Over 50 self help tuition videos included with our user friendly Graphical User Interface
• Manuals and literature
• Nesting software included
• HVAC Ventilation duct and fittings creator software - 14 shapes included - Uprgradeable
• Industry Standard easy to use Graphics package and additional cad packages also included
• Comprehensive Shapes library - use common shapes and re-size easily to your requirements

Machine Specifications

• High quality Hybrid Servo motors and electronics.
• UK Built Plasma Table & CNC Control Box
• Windows PC system
• Torch height controller (THC) & OHMIC Soft Sense
• XYZ gantry system rack and pinion
• Plasma cutting table electronics comes with a 3 year warranty
• Free technical support during normal working hours
• 240V 13 Amp required for CNC system and PC

Can't Draw ? Don't Panic we have Software Included

Shapes Library

IkoCad Trace Parts With Cad

or Purchase one of our Digitizing Drawing Boards & Software
